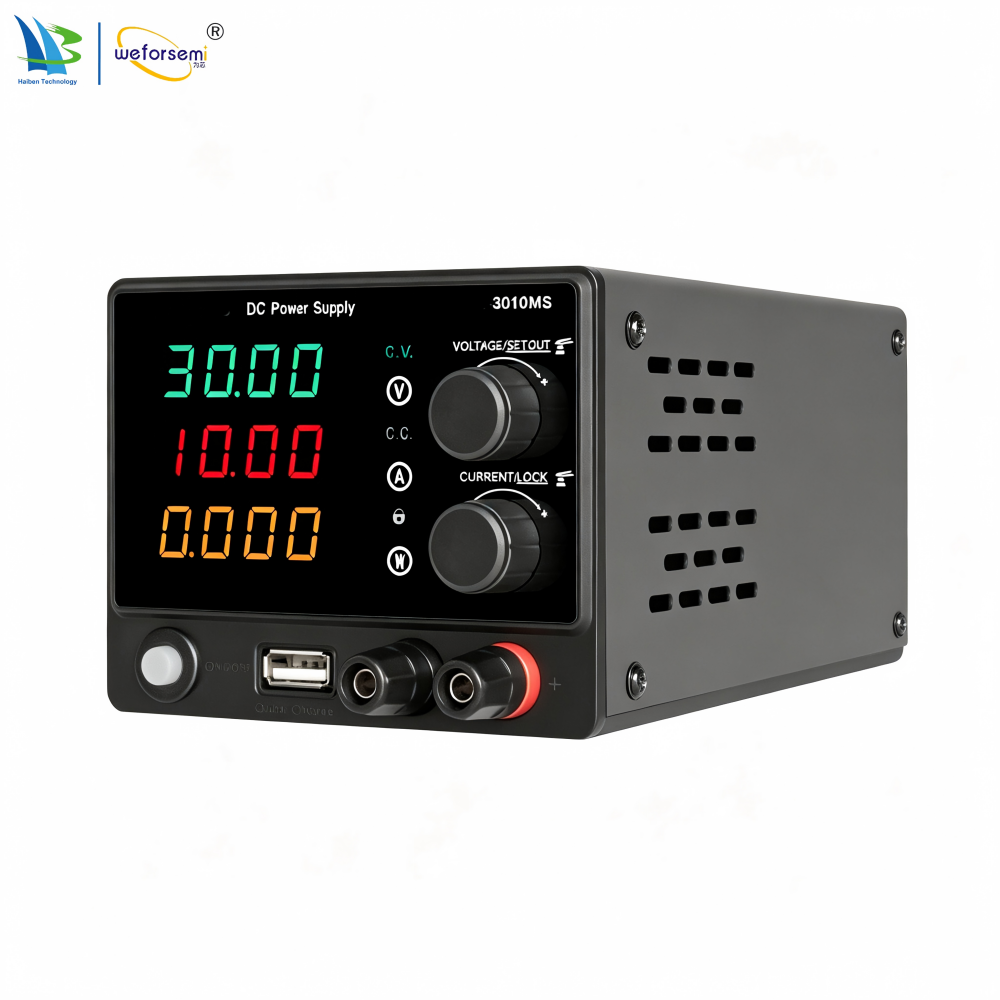

Lightweight Adjustable Mini DC Power Supply 30V 10A Bench Top Laboratory Use Factory Supply

Lightweight Adjustable Mini DC Power Supply 30V 10A Bench Top Laboratory Use Factory Supply

1.Ultra-compact mini size, space-saving, easy for desktop use and field portable debuggin

2.4-digit digital tube simultaneously displays voltage, current and power value

3.Independent ON/OFF output switch, no need to reboot the whole unit

4.Power-off memory function: restore preset voltage & current when power on again

5.Built-in USB quick-charge port for extra digital device charging

6.Key-lock function to avoid accidental parameter change, improve testing stability

7.Auto switch between constant-voltage & constant-current mode

8.Widely used for phone repair, circuit debugging, MCU test, DIY projects and laboratory teaching

Model:
HBVC-3010MS
Brand:
Weforsemi/Haiben
Code:
DC Power Supply

Quantity:
type:	Micro DC Power supply
Rated Voltage Output:	0~30V
Rated Current Output:	0~10A
Rated Power Output:	0~ 300W
AC Input Voltage:	115-230V±10% (wide voltage)
Product Size:	102×220×80mm
Fuse Specifications:	5A
Availability:





Inquire Add to Basket

Product Description

Lightweight Adjustable Mini DC Power Supply 30V 10A Bench Top Laboratory Use
Semiconductor Supply Chain & Solution Partner

Overview

The ultra-mini DC regulated power supply is a tiny single-channel DC power supply with a four-digit digital tube that simultaneously displays voltage, current and power values. It is equipped with an "ON/OFF" output switch and a USB fast-charging output. Lightweight and compact, it is the ideal preferred test tool for customers.

Features
Small in size, fully functional
Independent ON/OFF output switch
It can remember the preset voltage and current values before turning off
External USB Type-A fast charging
Key lock function to prevent misoperation

Applications

Teaching & Laboratory (Classroom demonstrations, student experiments, tech innovation projects)

Desktop R&D (Embedded systems development, module testing, prototyping & debugging)
Mobile Repair (On-site repair for cell phones, laptops, home appliances, etc.)
Field Debugging (On-site equipment maintenance, exhibition demonstrations, outdoor testing)

Specification

Model	3010MS
Rated Voltage Output	0~30V
Rated Current Output	0~10A
Rated Power Output	0~ 300W
AC Input Voltage	115-230V±10% (wide voltage)
Nominal Working Conditions
Working Conditions	Temperature: 0ºC to 40ºC
	Relative humidity: < 80%RH
Storage Conditions	Temperature: -10ºC to 70ºC
	Relative humidity: < 70%RH
Constant Voltage State
Voltage Stability	≤1%±10mV
Load Stability	≤1%±10mV
Ripple Noise	≤60mVrms
Constant Current State
Current Stability	≤1%±10mA
Load Stability	≤1%±10mA
Ripple Noise	≤60mArms
Display
Voltage Resolution	0.01 V
Current Resolution	0.001 A
Display Accuracy	1%±10digits
USB-A Output Port	QC3.0 (18Wmax)(5V-3A/9V-2A/12V-1.5A)
Fast Charging Protocol	Support QC3.0/2.0/FCP(SCP A)
Product Size (W×D×H)mm	605MS:(102×220×80)mm
Product Net Weight	About 1kg
Packaging Size (W×D×H)mm	(178×253×115)mm
Weight With Package	About 1. 35 kg
Fuse Specifications	5 A
