Home » Products » Project Completed Products » Smart Energy Meter » Single Phase Modular Smart Meter Wide Voltage Range Anti-Fraud Power Monitoring Instrument

1.Modular plug-and-play communication, support multiple remote modules

2.STS compliant, switchable prepaid / post-paid billing modes

3.Multi-protocol support: DLMS/COSEM, ANSI, DL645-2007, Modbus-RTU

4.Powerful anti-tamper & fraud detection with event logging

5.All-electronic solid-state design based on ASIC micro-controller

6.High accuracy class 0.5S /1.0 for residential energy metering

7.NVM memory keeps data up to 30-years, factory data non-alterable

8.Data accessible via LCD, local port or remote backend server

9.Highly programmable for various tariffs and utility applications

10.Robust structure for tough field-site deployment

Quantity:
Measurement Mode:	Single phase 2-wire, single phase 3-wire
Accuracy:	Active 0.5S, 1.0; Reactive 0.5S, 1.0, 2.0
Un:	110V, 230V, 240V
Voltage Range:	50%Un~130%Un
Ib:	5A, 10A
Imax:	80A, 100A
Product weight:	1.12KG
Availability:





Inquire Add to Basket

Modular Single Phase Smart Energy Meter Multi Communication Remote AMI Management

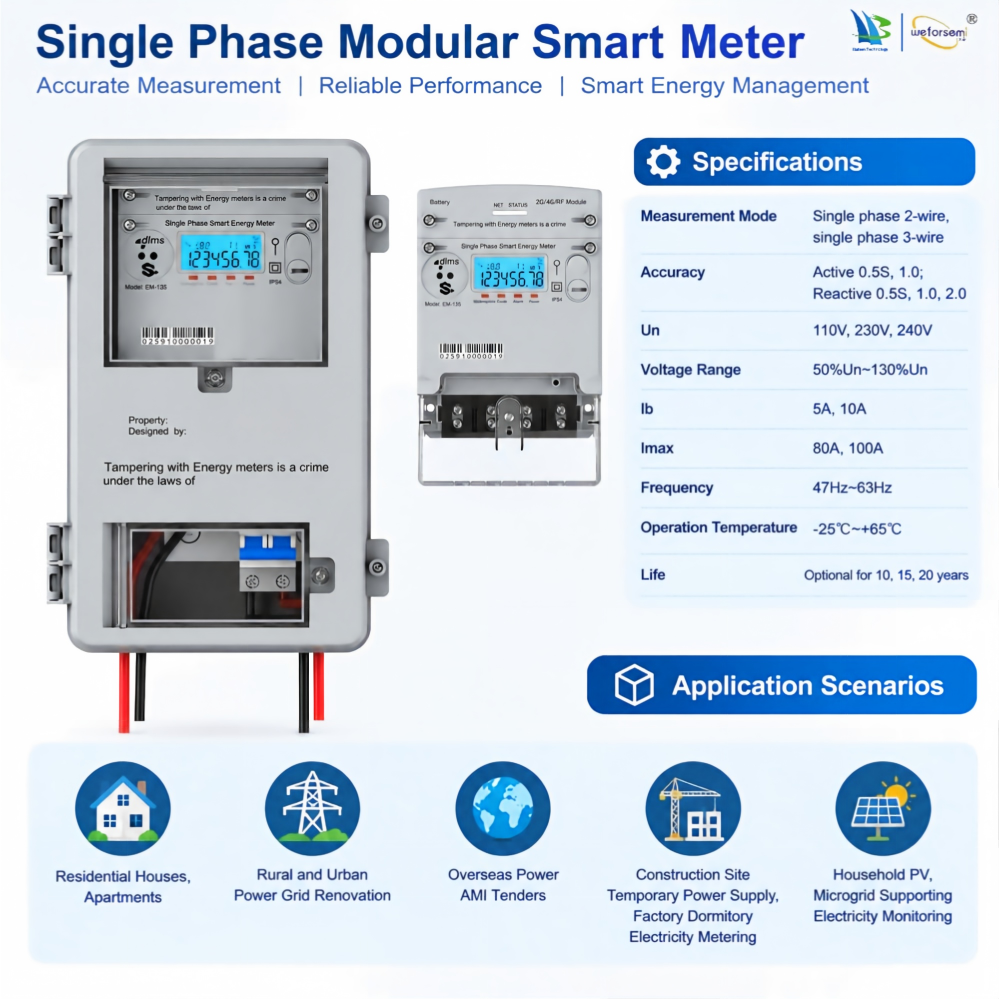

Single Phase Modular Smart Meter Wide Voltage Range Anti-Fraud Power Monitoring Instrument

Product Type:
135A is modular-design direct-connect single-phase AMI smart prepaid meter.
Application:
Accurately measure electric energy for residential customers, complying with international energy meter standards.
Billing Mode:
Switchable prepaid / postpaid mode; prepaid function complies with STS standard.
Communication:

Plug-and-play replaceable modules: WIFI, RF, GPRS, 3G, 4G, NB-IoT, Wi-SUN, PLC for remote management.
Multi-protocol support: DLMS/COSEM, ANSI, DL645-2007, Modbus-RTU.

Detects: load unbalance, voltage missing, current bypass, phase reversal, neutral disturbance/cut, magnetic tamper, 35kV ESD disturbance, cover-open.
Maintains measurement accuracy, logs events and performs punitive measurement to protect utility assets and revenue.

Mode Selection:
Prepaid / postpaid can be selected via local tools (CMRI, HHU, CIU) or remote communication by utility company.

Please read this manual fully before installation, operation, testing and usage.
The meter can tolerate rough field handling. Proper care ensures long-term trouble-free operation.
Manufacturer shall not be liable for consequential damage caused by wrong application, misuse or incorrect installation.

Product nature: 135A is an all-electronic, solid-state single-phase energy meter.
Measurement capacity: Accurately measures supply voltage, current, power factor and other parameters; measures active, reactive and apparent energy as applicable.
Hardware core: Built around ASIC-based micro-controller with dedicated programming language.
Programmability: High programmability to support diverse applications and tariff schemes.

Adopt analog-to-digital converter to sample voltage and current of input waveform.
High sampling rate delivers outstanding measurement accuracy.
Available accuracy class: 1.0 class, 0.5S class.

Non-volatile Memory (NVM)

4.Electrical Characteristics

SN	Parameters	Value
1	Measurement Mode	Single phase 2-wire, single phase 3-wire
2	Accuracy	Active 0.5S, 1.0; Reactive 0.5S, 1.0, 2.0
3	Un	110V, 230V, 240V
4	Voltage Range	50%Un~130%Un
5	Ib	5A, 10A
6	Imax	80A, 100A
7	Frequency	47Hz~63Hz
8	Operation Temperature	-25°C~+65°C
9	Life	Optional for 10, 15, 20 years

Highly-reliable NVM, data retention up to 30-years under power-off condition.
All cumulative & billing energy data cannot be altered in any way after factory delivery.
NVM data is accessible via: LCD local display, local communication ports, or remote communication module from data server.
