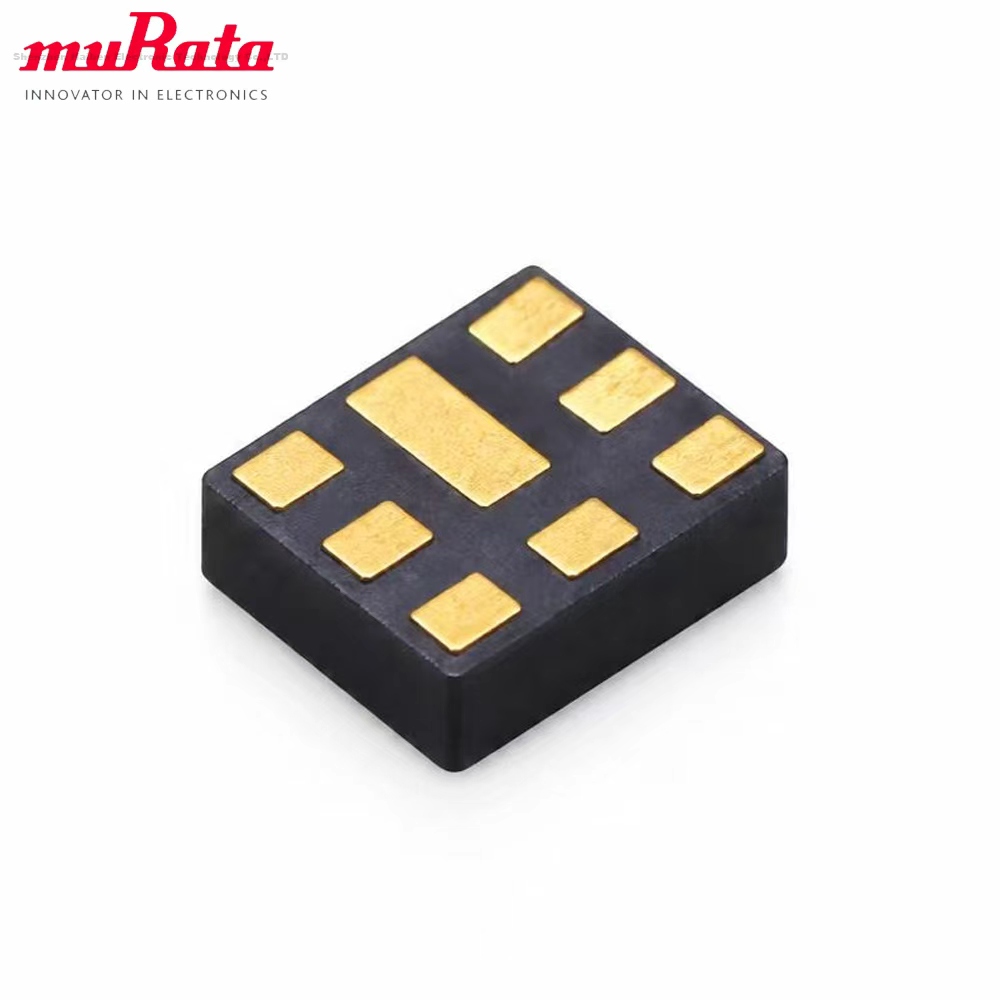

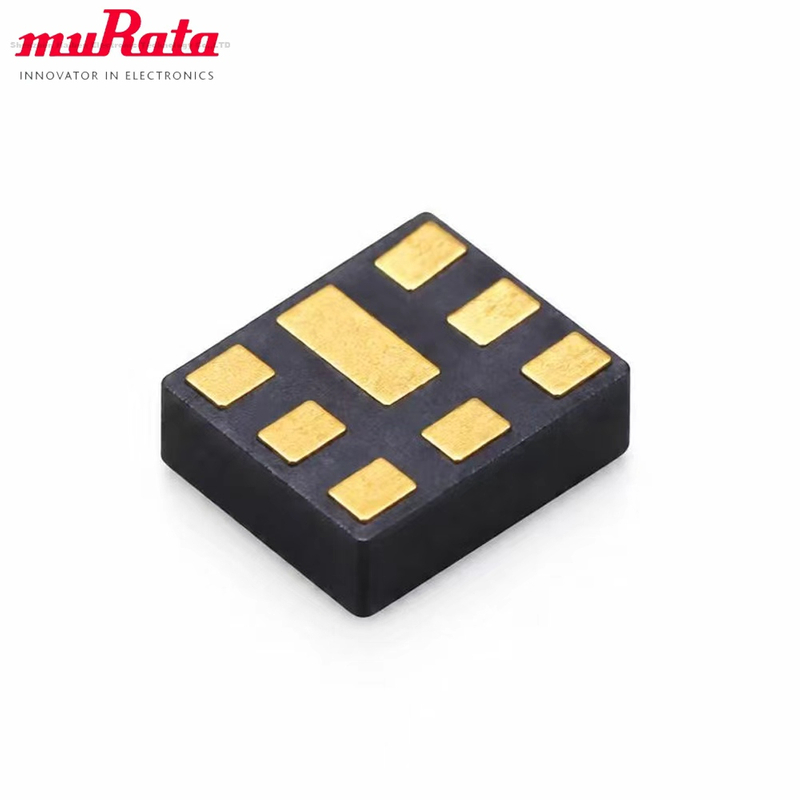

| Datasheet of SAW Device |
|
| SAW Duplexer |
|
| for Band5 / Unbalanced / LR /1814 |
|
| Murata PN : SAYEY836MBE0F0A |
|
| ■ Feature |
|
| > LTE-A |
|
| > High Power Durability |
|
|
|
|
| Note : This Murata SAW Component is Consumer grade product and |
|
| applicable for Cellular phone or similar end devices. |
|
| Please also read Important Notice at the end of this document. |
|
| Revision |
|
|
| G |
|
|
| SAYEY836MBE0F0A ( Band5 / Unbalanced / LR / 1814 ) |
| General Information |
| - | Operating temperature | : -20 to +85deg.C |
|
| - | Storage temperature | : -40 to +85deg.C |
|
| - | Input Power | : +30.0 dBm 5000 h | +50 deg.C |
| - | D.C. Voltage between the terminals | : 3V (25+/-2 deg.C) |
|
| - | Minimum Resistance between the terminals | : 10M ohm |
|
| - | RoHS compliance | : Yes |
|
| - ESD (ElectroStatic Discharge) sensitive device |
The input power shall be applied to Tx-port within own Tx passband frequency range.
All Rights Reserved, Copyright© Murata Manufacturing Co., Ltd 1/11 |
|
* : Month code
$ : Date code
1 : 8
2 : T
3 : A
Terminal Number
(6) : Ant
(3) : TX
(1) : RX
Others : GND
Notice) Please refer to Measurement Circuit
for Port information in detail. |
| Land Pattern |
|
| Measurement Circuit (Top Thru View) |
| R1 : 50 ohm | L : 7.2 nH (Ideal inductor) |
|
| : 7.5 nH (LQP03TN7N5)
<Reference> |
| R2 : 50 ohm | L : 25 nH (Ideal inductor) |
| R3 : 50 ohm |
|
|
|
|
|
|
|
|
|
|
|
|
| Electrical Characteristic |
| TX → ANT. | Characteristics | Unit | Note |
| (-20~+85deg.C) |
| min. | typ.* | max. |
| Center Frequency |
|
| 836.5 |
| MHz |
|
| Insertion Loss | 824. to 849. MHz |
| 1.6 | 2.0 | dB |
|
| 826.5 to 846.5 MHz |
| 1.3 | 1.7 | dBINT | Any 4.5MHz |
| Ripple Deviation | 824. to 849. MHz |
| 0.7 | 1.4 | dB |
|
| 824. to 849. MHz |
| 0.4 | 1.2 | dB | Any 3.84MHz |
| VSWR | 824. to 849. MHz |
| 1.3 | 2.0 |
| TX |
| 824. to 849. MHz |
| 1.3 | 2.0 |
| ANT. |
| Absolute Attenuation | 10. to 420. MHz | 35 | 43 |
| dB |
|
| 420. to 494. MHz | 35 | 40 |
| dB | 450MHz Rejection |
| 494. to 701. MHz | 30 | 34 |
| dB |
|
| 699. to 716. MHz | 30 | 34 |
| dB | B12 TX |
| 701. to 728. MHz | 30 | 34 |
| dB |
|
| 704. to 716. MHz | 30 | 34 |
| dB | B17 TX |
| 728. to 764. MHz | 30 | 34 |
| dB | 700MHz Rejection |
| 764. to 804. MHz | 30 | 36 |
| dB |
|
| 860. to 869. MHz | 5.0 | 8.1 |
| dB |
|
| 869. to 894. MHz | 45 | 56 |
| dB | RX |
| 1559. to 1563. MHz | 42 | 47 |
| dB | COMPASS |
| 1565.42 to 1573.37 MHz | 42 | 47 |
| dB | Lower GPS |
| 1573.37 to 1577.47 MHz | 42 | 47 |
| dB | Regular GPS |
| 1577.47 to 1585.42 MHz | 42 | 47 |
| dB | Upper GPS |
| 1597.55 to 1605.89 MHz | 42 | 47 |
| dB | GLONASS |
| 1638. to 1708. MHz | 40 | 46 |
| dB | 2f |
| 1710. to 1785. MHz | 40 | 45 |
| dB | B4 TX |
| 1844.9 to 1879.9 MHz | 40 | 48 |
| dB | B3 TX |
| 1884.5 to 1919.6 MHz | 40 | 49 |
| dB |
|
| 1920. to 1980. MHz | 39 | 49 |
| dB | B1 TX |
| 2110. to 2170. MHz | 37 | 51 |
| dB | B1 RX |
| 2400. to 2494. MHz | 35 | 43 |
| dB | ISM2.4 |
| 2472. to 2547. MHz | 35 | 41 |
| dB | 3f |
| 3286. to 3406. MHz | 11 | 18 |
| dB | 4f |
| 4110. to 4255. MHz | 5.0 | 7.9 |
| dB | 5f |
| 4900. to 5950. MHz | 5.0 | 7.6 |
| dB | ISM 5G, 6f, 7f |
| 6582. to 6802. MHz | 10 | 16 |
| dB | 8f |
| 7406. to 7651. MHz | 10 | 16 |
| dB | 9f |
| 8230. to 8500. MHz | 10 | 14 |
| dB | 10f |
| 9054. to 9349. MHz | 5.0 | 10.0 |
| dB | 11f |
| 9878. to 10198. MHz | 5.0 | 7.4 |
| dB | 12f |
| 10702. to 11047. MHz | 5.0 | 7.9 |
| dB | 13f |
| 11526. to 11896. MHz | 5.0 | 12.0 |
| dB | 14f |
| 12350. to 12745. MHz | 5.0 | 12.0 |
| dB | 15f |
| ANT. → RX | Characteristics | Unit | Note |
| (-20~+85deg.C) |
| min. | typ.* | max. |
| Center Frequency |
|
| 881.5 |
| MHz |
|
| Insertion Loss | 869. to 894. MHz |
| 1.6 | 2.1 | dB |
|
| 871.5 to 891.5 MHz |
| 1.6 | 1.9 | dBINT | Any 4.5MHz |
| Ripple Deviation | 869. to 894. MHz |
| 0.3 | 1.0 | dB |
|
| 869. to 894. MHz |
| 0.2 | 0.8 | dB | Any 3.84MHz |
| VSWR | 869. to 894. MHz |
| 1.5 | 2.0 |
| RX |
| 869. to 894. MHz |
| 1.4 | 2.0 |
| ANT. |
| Absolute Attenuation | 10. to 447. MHz | 50 | 63 |
| dB |
|
| 45. MHz | 50 | 99 |
| dB | RX - TX |
| 447. to 824. MHz | 45 | 55 |
| dB |
|
| 779. to 804. MHz | 45 | 56 |
| dB | 2TX - RX |
| 824. to 849. MHz | 45 | 63 |
| dB | TX |
| 849. to 854. MHz | 30 | 58 |
| dB | (RX + TX) / 2 |
| 909. to 979. MHz | 10 | 18 |
| dB |
|
| 1693. to 1743. MHz | 50 | 73 |
| dB | RX + TX |
| 1710. to 1785. MHz | 50 | 72 |
| dB | B3 TX |
| 1788. to 1788. MHz | 50 | 76 |
| dB | 2f |
| 1850. to 1920. MHz | 50 | 68 |
| dB | B2 TX |
| 1920. to 1980. MHz | 50 | 66 |
| dB | B1 TX |
| 1980. to 2400. MHz | 50 | 60 |
| dB |
|
| 2305. to 2315. MHz | 50 | 61 |
| dB | B30 TX |
| 2400. to 2500. MHz | 50 | 59 |
| dB | ISM2.4 |
| 2467. to 2494. MHz | 50 | 59 |
| dB | WLAN Co-ex |
| 2517. to 2592. MHz | 50 | 58 |
| dB | RX + 2TX |
| 2607. to 2682. MHz | 50 | 57 |
| dB | 3f |
| 3476. to 3576. MHz | 40 | 50 |
| dB | 4f |
| 4345. to 4470. MHz | 33 | 41 |
| dB | 5f |
| 4900. to 5950. MHz | 20 | 29 |
| dB | ISM 5G |
| 5214. to 5364. MHz | 22 | 30 |
| dB | 6f |
| 6083. to 6258. MHz | 20 | 30 |
| dB | 7f |
| 6952. to 7152. MHz | 20 | 30 |
| dB | 8f |
| 7821. to 8046. MHz | 20 | 31 |
| dB | 9f |
| 8690. to 8940. MHz | 25 | 34 |
| dB | 10f |
| 9559. to 9834. MHz | 25 | 34 |
| dB | 11f |
| 10428. to 10728. MHz | 25 | 31 |
| dB | 12f |
| 11297. to 11622. MHz | 20 | 28 |
| dB | 13f |
| 12166. to 12516. MHz | 20 | 38 |
| dB | 14f |
| TX → RX | Characteristics | Unit | Note |
| (-20~+85deg.C) |
| min. | typ.* | max. |
| Isolation | 824. to 849. MHz | 55 | 64 |
| dB | TX |
| 826.5 to 846.5 MHz | 55 | 66 |
| dBINT | Any 4.5MHz, TX |
| 869. to 894. MHz | 50 | 52 |
| dB | RX |
| 871.5 to 891.5 MHz | 52 | 53 |
| dBINT | Any 4.5MHz, RX |
| 1574. to 1577. MHz | 50 | 59 |
| dB | GPS |
| 1683. to 1708. MHz | 50 | 58 |
| dB | 2f |
| 2462. to 2557. MHz | 45 | 54 |
| dB | 3f |
|
|
|
|
|
| * Typical value at 25±2deg.C |
|
|
|
|
|
|
Dimensions of Tape & Reel unit: mm
Carrier Tape |
|
|
| Tape |
|
|
|
|
| Reel |
|
| φ178Reel φ330Reel
A: φ13.0 A: φ13.0
B: 13.5max B: 15.5max
C: 9.0 C: 9.5
D: φ60 D: φ100
E: φ178 E: φ330 |
|
SAYEY836MBE0F0AR00 … 10000pcs (φ330)
SAYEY836MBE0F0AR1S … Sample Order (φ178/330) |
|
