Wholsale price Micro Compact Variable DC Power Supply 30V 60V 150W/300W Switching Regulated Source

Wholsale price Micro Compact Variable DC Power Supply 30V 60V 150W/300W Switching Regulated Source

1.Ultra-compact mini size, space-saving, easy for desktop use and field portable debuggin

2.4-digit digital tube simultaneously displays voltage, current and power value

3.Independent ON/OFF output switch, no need to reboot the whole unit

4.Power-off memory function: restore preset voltage & current when power on again

5.Built-in USB quick-charge port for extra digital device charging

6.Key-lock function to avoid accidental parameter change, improve testing stability

7.Auto switch between constant-voltage & constant-current mode

8.Widely used for phone repair, circuit debugging, MCU test, DIY projects and laboratory teaching

Model:
HBVC-305MS/3010MS/605MS
Brand:
Weforsemi/Haiben
Code:
DC Power Supply

Quantity:
type:	Micro DC Power supply
Rated Voltage Output:	0~30V/0~30V/0~60V
Rated Current Output:	0~5A/0~10A/0~5A
Rated Power Output:	0~ 150W/0~300W/0~300W
AC Input Voltage:	115-230V±10% (wide voltage)
Product Size:	305MS:(102×195×80)mm/3010/605MS:(102×220×80)mm
Fuse Specifications:	3.15A/5A/5A
Availability:





Inquire Add to Basket

Product Description

Micro Compact Variable DC Power Supply 30V 60V 150W/300W Switching Regulated Source

Overview

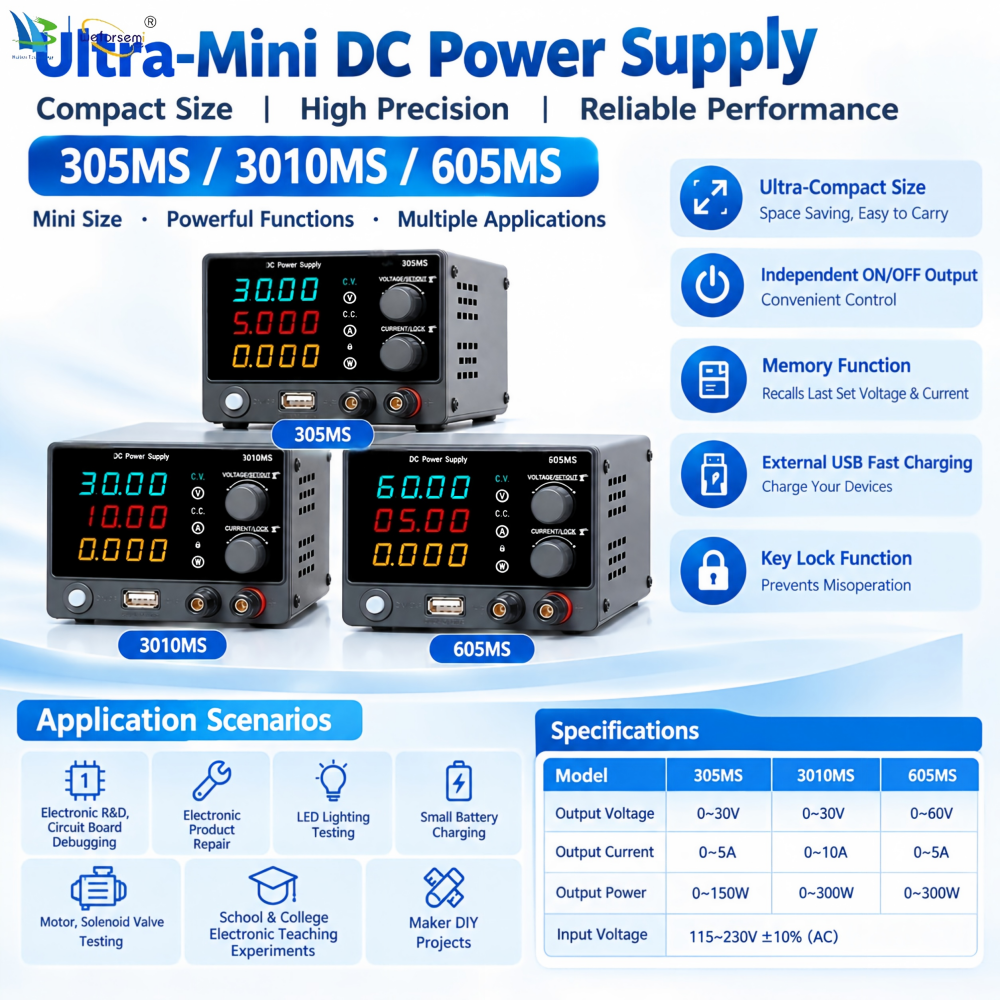

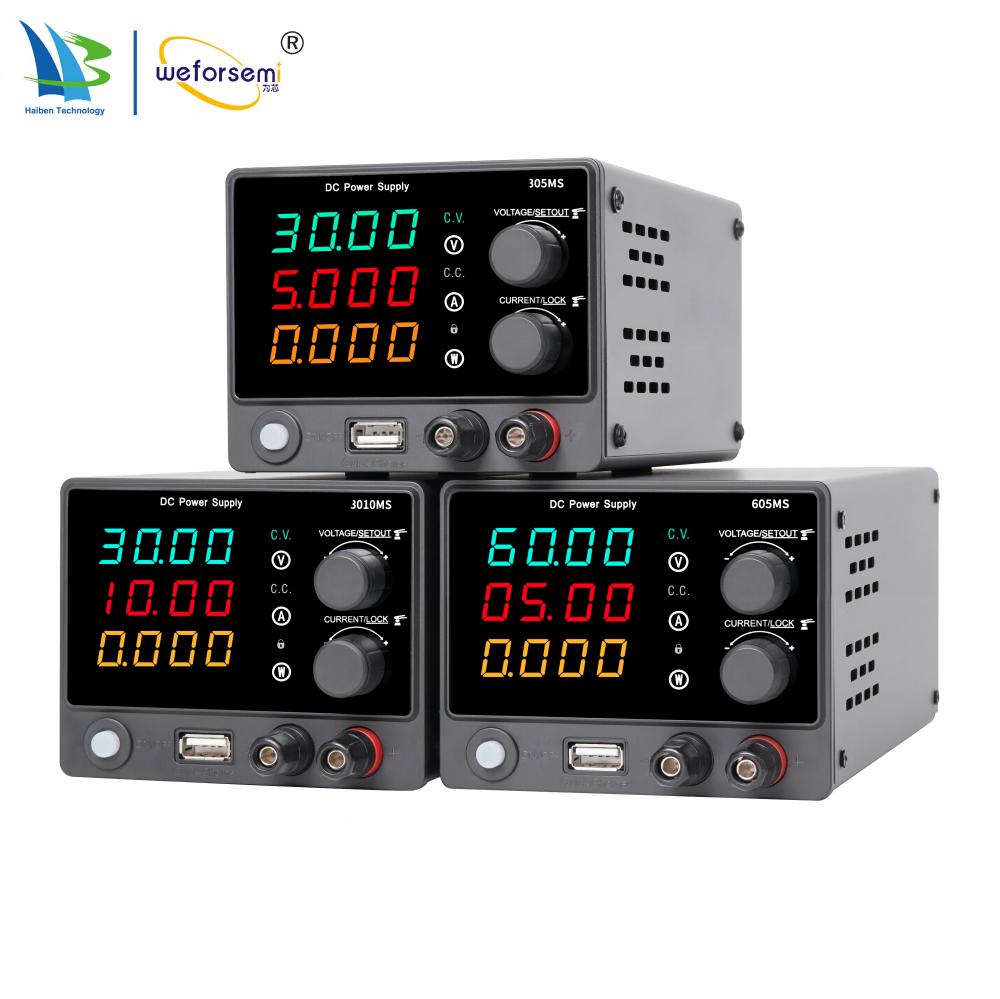

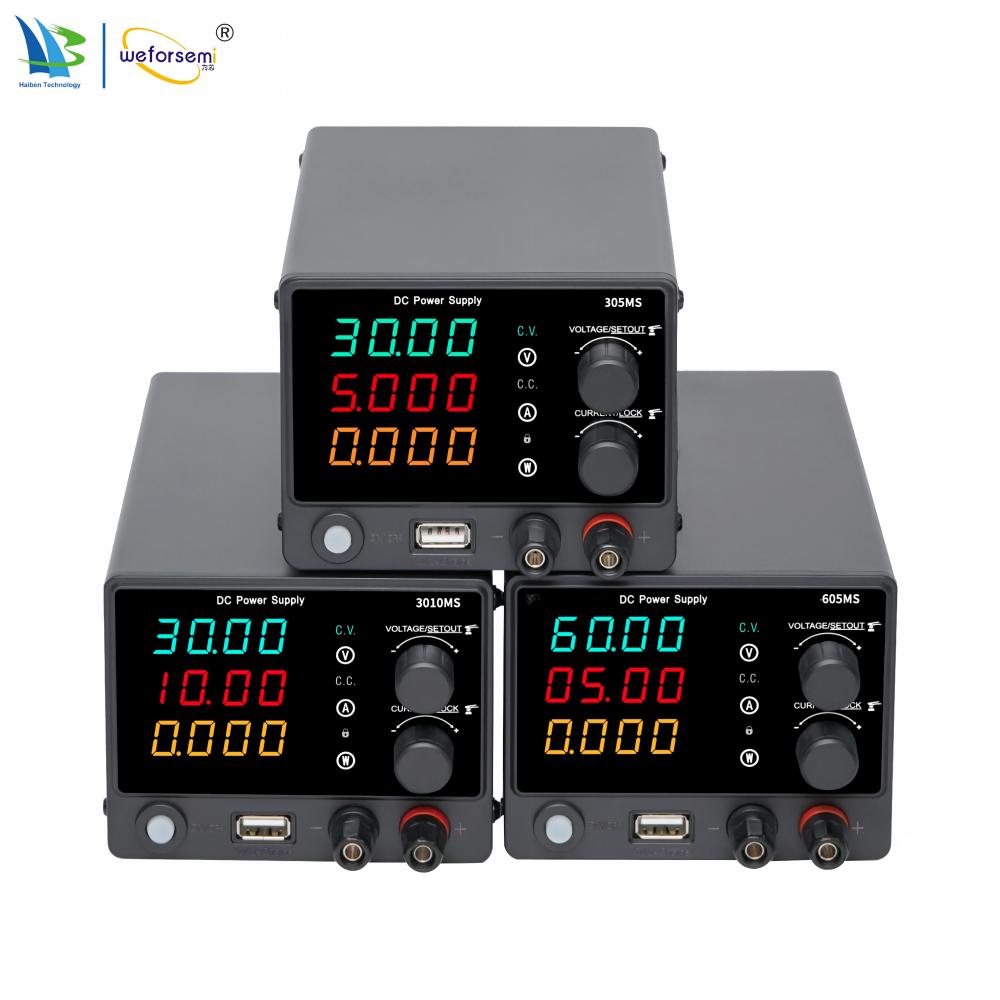

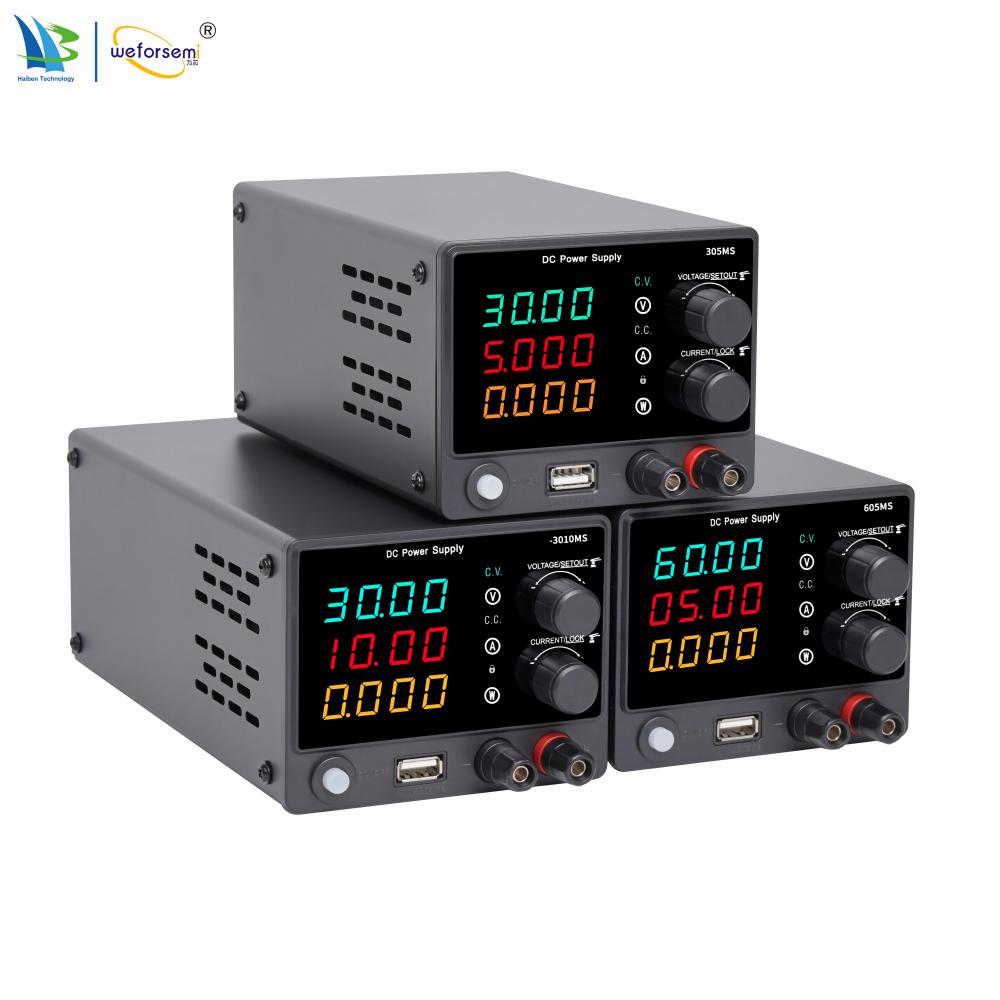

The ultra-mini DC regulated power supply is a tiny single-channel DC power supply with a four-digit digital tube that simultaneously displays voltage, current and power values. It is equipped with an "ON/OFF" output switch and a USB fast-charging output. Lightweight and compact, it is the ideal preferred test tool for customers.

Features
Small in size, fully functional
Independent ON/OFF output switch
It can remember the preset voltage and current values before turning off
External USB Type-A fast charging
Key lock function to prevent misoperation

Applications

Teaching & Laboratory (Classroom demonstrations, student experiments, tech innovation projects)

Desktop R&D (Embedded systems development, module testing, prototyping & debugging)
Mobile Repair (On-site repair for cell phones, laptops, home appliances, etc.)
Field Debugging (On-site equipment maintenance, exhibition demonstrations, outdoor testing)

Specification

Model	305MS	3010MS	605MS
Rated Voltage	0~30V	0~30V	0~60V
Rated Current	0~5A	0~10A	0~5A
Rated Power	0~150W	0~300W	0~300W
Input Voltage	115~230V±10%(Wide-voltage Input)
Rated Operating Conditions
Operating Condition	Temperature::0ºC~40ºC	Relative Humidity:<80%RH
Storage Condition	Temperature:-10ºC~70ºC	Relative Humidity:<70%RH
Constant-Voltage Mode
Voltage Stability	≤1%±3mV	≤1%±10mV	≤1%±10mV
Load Regulation	≤1%±3mV	≤1%±10mV	≤1%±10mV
Ripple & Noise	≤50mVrms	≤60mVrms	≤60mVrms
Constant-Current Mode
Current Stability	≤1%±3mA	≤1%±10mA	≤1%±10mA
Load Regulation	≤1%±3mA	≤1%±10mA	≤1%±10mA
Ripple & Noise	≤50mArms	≤60mArms	≤60mArms
Display
Voltage Resolution	0.01V
Current Resolution	0.001A
Display Accuracy	1%±5digits	1%±10digits	1%±10digits
USB-AOutput	QC3.0 (18Wmax)(5V-3A/9V-2A/12V-1.5A)
Fast-charge Protocol	Support QC3.0/2.0/FCP(SCP A)
Bare-unit Dimension (W×D×H) mm	(102×195×80)mm	(102×220×80)mm	(102×220×80)mm
Bare-unit Weight	Approx.0.8kg	Approx.1kg	Approx.1kg
Package Dimension (W×D×H) mm	(178×228×115)mm	(178×253×115)mm	(178×253×115)mm
Package Weight	Approx.1.15kg	Approx.1.35kg	Approx.1.35kg
Fuse Rating	3.15A	5A	5A

Panel Introduction

1 .Voltage display window: Shows preset voltage values in standby mode; In the output state, display the output voltage value. Unit:
volts (V).
2 .Current display window: Displays preset current values in
standby mode; Display the output current value in the output state. Unit: Amperes (A).
3 .Power display window: In standby mode, shows "OFF"; In the output state, show the power output of the power supply. Unit: Watt (W).
4 .18W fast charging output port: QC18W (5V-3A/9V-2A/12V-1.5A).
5 .Output on/off button : Short press to switch output status.
6 .Positive(Red) output terminal.
7 .Negative(Black) output terminal.
8 .Keypad Lock indicator : Hold down the current knob lock
indicator light. The lock indicator light is yellow, indicating that the knob is locked; Hold down the current adjustment knob again and the lock indicator light will turn off and the lock will be released.
9 .Current adjustment knob: Rotate clockwise and the preset
current value increases. Turn it counterclockwise and the current preset will decrease. Press the knob short to move the current
preset editing position from right to left; Hold down the knob to lock/unlock the knob.
10 .CC Constant current indicator : The red "CC" light on, indicating that the power supply is currently in constant current output mode.
11 .Voltage adjustment knob: Turn clockwise to increase the preset voltage value; Turn it counter clockwise and the preset voltage will decrease. Press the knob short to move the voltage preset editing
position from right to left; Long press the knob to save the current output state, and the next time the power is connected, restore the previous output state directly.
12 .CV Constant voltage indicator: The green "CV" light on,
indicating that the power supply is in constant voltage output mode at this time.

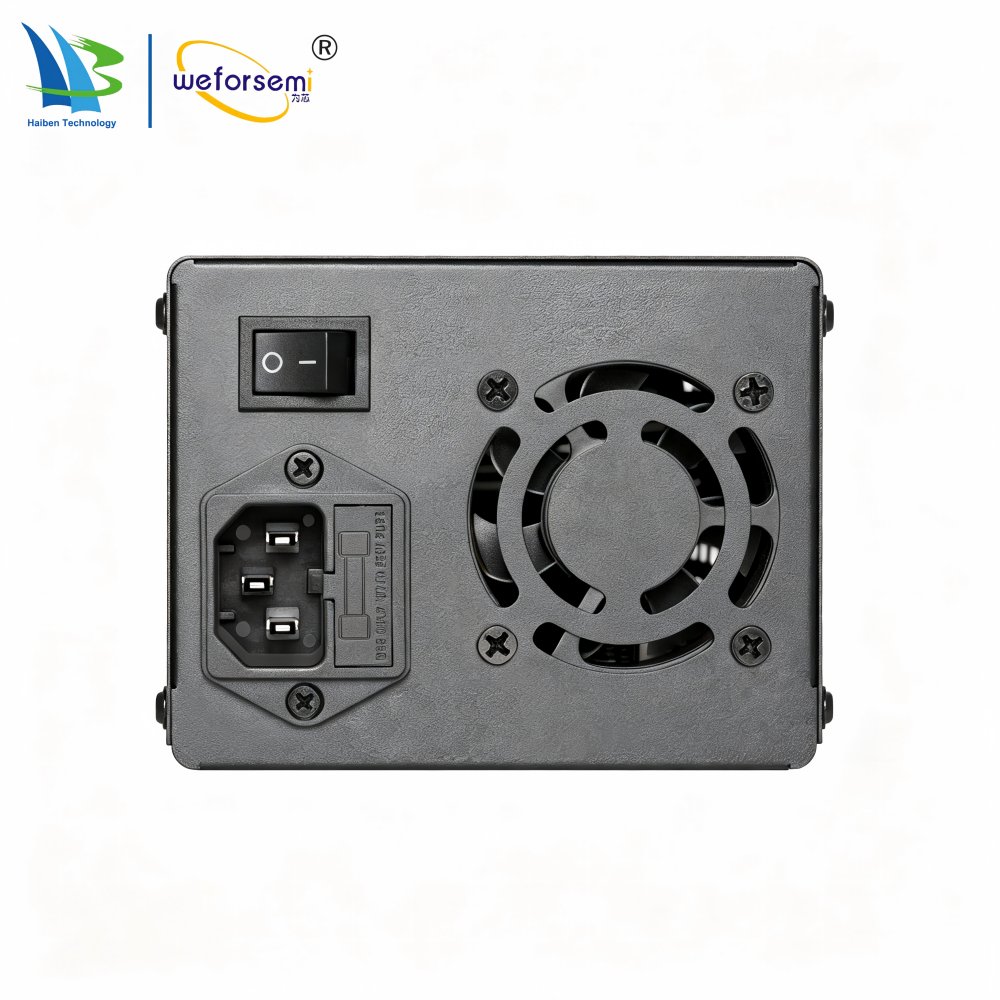

Rear Panel

1 .Power input on-off switch: Press "1" to turn on power, press "0"to turn off power input.
2 .Power supply socket: 115-230V±10% (wide voltage).
3 .Fuse holder: Built-in 3.15A/5A fuse.
4 .Cooling fan.
