Wholesale 450mW SOD-323 SMD Surface Mount Schottky Diode Semiconductor with Exclusive Patent

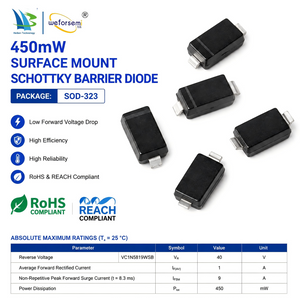

SMD Schottky Barrier Diode VC1N5819WSB SOD-323 Factory Direct Support OEM Customization Semiconductor

Wholesale 450mW SOD-323 SMD Surface Mount Schottky Diode Semiconductor with Exclusive Patent

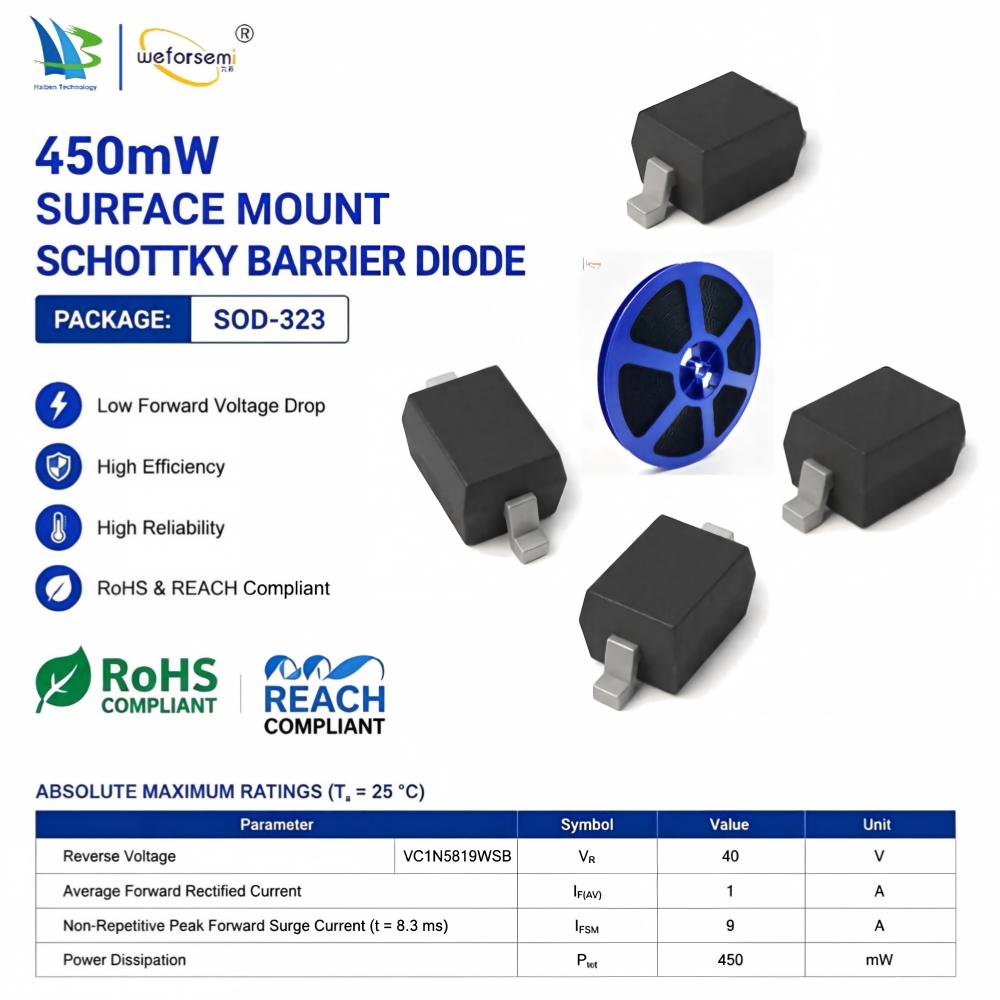

1.SOD-323 SMD Schottky Diode Miniature Package

2.Ultra-Low Forward Voltage Drop & High Efficiency

3.Mini package for compact PCB design

4.High Forward Surge Current Capability

5.Low forward voltage drop, fast switching speed

6.Strict quality control, cost-effective

Model:
VC1N5819WSB
Brand:
Weforsemi
Code:
SMD Schottky Barrier Diode

Quantity:
Reverse Voltage:	40V
Average Forward Rectified Current:	1A
Ifsm:	9A
Power Dissipation:	450MW
PACKAGE:	SOD-323
MODEL:	VC1N5819WSB
Specification:	A Surface Mount Schottky Barrier Diode
Availability:





Inquire Add to Basket

Product Description

Wholesale 450mW SOD-323 SMD Surface Mount Schottky Diode Semiconductor with Exclusive Patent

PIN DESCRIPTION
PIN1:Cathode
PIN2:Anode

Absolute Maximum Ratings (Ta = 25 ºC)
Characteristics at T = 25ºC

Parameter		Symbol	Min.	Max.	Unit
Reverse Breakdown Voltage at IR = 1 mA	VC1N5817WSB VC1N5818WSB VC1N5819WSB	V(BR)R	20 30 40	- - -	V
Forward Voltage at IF = 1 A at IF = 3 A	VC1N5817WSB VC1N5818WSB VC1N5819WSB VC1N5817WSB VC1N5818WSB VC1N5819WSB	VF	- - - - - -	0.45 0.55 0.6 0.75 0.875 0.9	V
Reverse Voltage Leakage Current at VR = 20 V at VR = 30 V at VR = 40 V	VC1N5817WSB VC1N5818WSB VC1N5819WSB	IR	- - -	1 1 1	mA
Total Capacitance at VR = 4 V, f = 1 MHz		Ctot	-	120	pF

Important Notice and Disclaimer
Weforsemi reserves the right to make changes to this document and its products and specifications at any time without notice. Customers should obtain and confirm the latest product information and specifications before final design, purchase or use.
Weforsemi makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does Weforsemi assume any liability for application assistance or
customer product design. Weforsemi does not warrant or accept any liability with products which are purchased or used for any unintended or unauthorized application.
No license is granted by implication or otherwise under any intellectual property rights of Weforsemi .
Weforsemi products are not authorized for use as critical components in life support devices or systems without express written approval of Weforsemi .

VC1N5817WSB SOD-323 11 SOD-323 10
