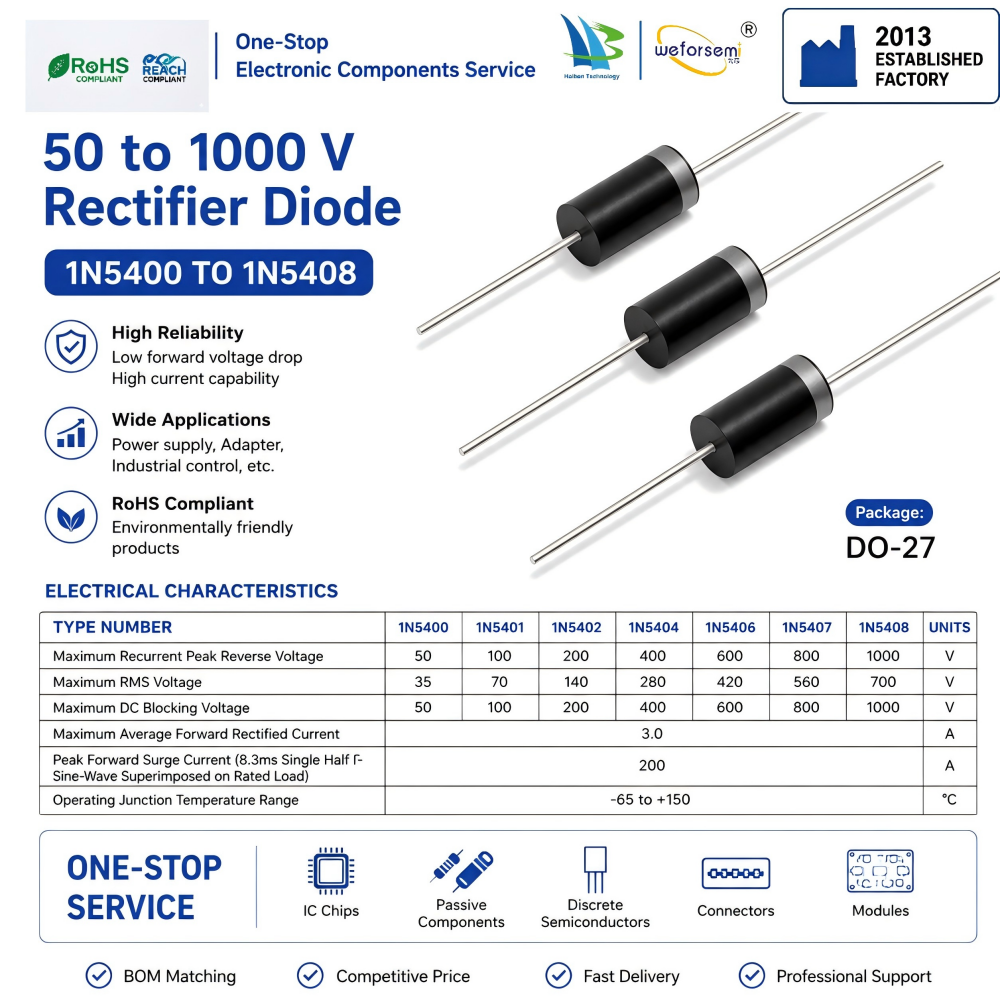

Manufacturer OEM SKD 3A 1N5400 To 1N5408 DO‑27 50‑1000V Rectifier Diode One‑Stop Sourcing Semiconductor

High‑Tech Patent 3A 1N5400 to 1N5408 DO‑27 Rectifier Diode Factory Direct OEM SKD Supply Electronic Components

Manufacturer OEM SKD 3A 1N5400 To 1N5408 DO‑27 50‑1000V Rectifier Diode One‑Stop Sourcing Semiconductor

1.50-1000V wide reverse voltage range, 3A continuous forward current, DO-27 axial through-hole package

2.Low forward voltage drop, low power consumption,epoxy housing UL94V-0 flame-retardant certified

3.High-temperature soldering resistance, durable axial leads for reliable assembly

4.Direct manufacturer with exclusive-patent-supported high-tech production & advanced design

5.Support OEM, SKD, customized marking & packaging for bulk-order projects

6.Strict incoming-outgoing quality inspection, stable batch consistency for industrial & consumer electronics

7.One-stop electronic-components supply, support BOM full-List matching

Model:
1N5400 THRU 1N5408
Brand:
Weforsemi/Haiben/Distributor Brands
Code:
1N5400 THRU 1N5408

Quantity:
FEATURES1:	Low forward voltage drop
FEATURES2:	High current capability
FEATURES3:	High reliabilit
FEATURES4:	High surge current capability
Case:	Molded plastic
Epoxy:	UL 94V-0 rated flame retardant
Model:	1N5400 THRU 1N5408
Availability:





Inquire Add to Basket

Product Description

Manufacturer OEM SKD 3A 1N5400 To 1N5408 DO‑27 50‑1000V Rectifier Diode One‑Stop Sourcing Semiconductor

FEATURES
* Low forward voltage drop
* High current capability
* High reliability
* High surge current capability

MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rated flame retardant
* Lead: Axial leads, solderable per MIL-STD-202, method 208 guaranteed
* Polarity: Color band denotes cathode end
* Mounting position: Any
* Weight: 1.10 grams

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25 °C ambient temperature unless otherwise specified.
Single-phase half-wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.

TYPE NUMBER	1N5400	1N5401	1N5402	1N5404	1N5406	1N5407	1N5408	UNITS
Maximum Recurrent Peak Reverse Voltage	50	100	200	400	600	800	1000	V
Maximum RMS Voltage	35	70	140	280	420	560	700	V
Maximum DC Blocking Voltage	50	100	200	400	600	800	1000	V
Maximum Average Forward Rectified Current .375"(9.5mm) Lead Length at Ta=75 C	3.0							A
Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method)	100							A
Maximum Instantaneous Forward Voltage at 3.0A	0.98							V
Maximum DC Reverse Current at Rated DC Blocking Voltage	5.0 50							μA μA
Typical Junction Capacitance (Note 1)	40							pF
Typical Thermal Resistance R JA (Note 2)	30							ºC/W
Operating and Storage Temperature Range TJ, TSTG	-65 +150							ºC
