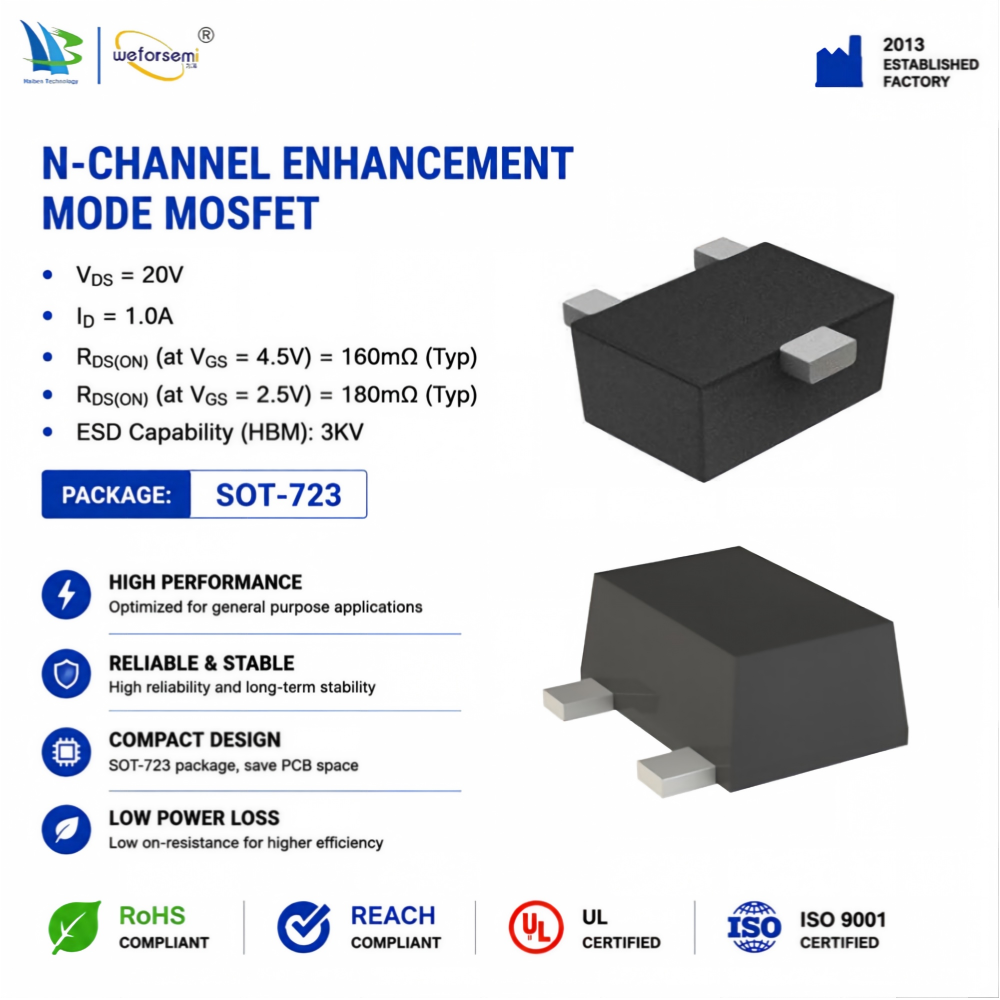

Direct factory Advanced Design N-Channel Enhancement Mode MOSFET VC9320A-1 SOT-723 Semiconductor

1.N-Channel enhancement mode MOSFET, SOT-723 compact surface-mount package
2.High ESD capability up to 3KV (HBM), excellent anti-static performance
3.VDS 20V, continuous drain current up to 1.0A for stable switching operation
4.Miniature SOT-723 footprint, effectively saving PCB layout space
5.Reliable switching performance for consumer electronics and PCBA solutions
6.RoHS & REACH compliant, suitable for global market export
7.Strict quality control, consistent batch-to-batch performance

  • VC9320A-1

  • Weforsemi

  • VC9320A-1 SOT-723

Material:
Silicon
Structure:
Planar
Package Structure:
Plastic Sealed Transistor
Drain-Source Voltage:
20V
Gate-Source Voltage:
±10V
Continuous Drain Current:
1.0A
Power Dissipation:
0.2W
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Direct factory Advanced Design N-Channel Enhancement Mode MOSFET VC9320A-1 SOT-723 Semiconductor



Features
• VDS= 20V,
• ID= 1.0A
• RDS(ON) (at VGS= 4.5V) =160mΩ(Typ)
• RDS(ON) (at VGS= 2.5V) =180mΩ(Typ)
• ESD Capability (HBM): 3KV

Application
• Load Switch for Portable Devices
• Voltage controlled small signal switch

Absolute Maximum Ratings (at Ta = 25ºC unless otherwise specified)

Parameter Symbol Value Unit
Drain-Source Voltage VDS 20 V
Gate-Source Voltage VGS ±10 V
Continuous Drain Current ID 1.0 A
Peak Drain Current, Pulsed 1) IDM 4.0 A
Power Dissipation 2) Ptot 0.2 W
Operating Junction TJ 150 ºC
Storage Temperature Range Tstg -55~150 ºC

Thermal Characteristics

Parameter Symbol Max. Unit
Thermal Resistance from Junction to Ambient 2) RθJA 833 ºC/W

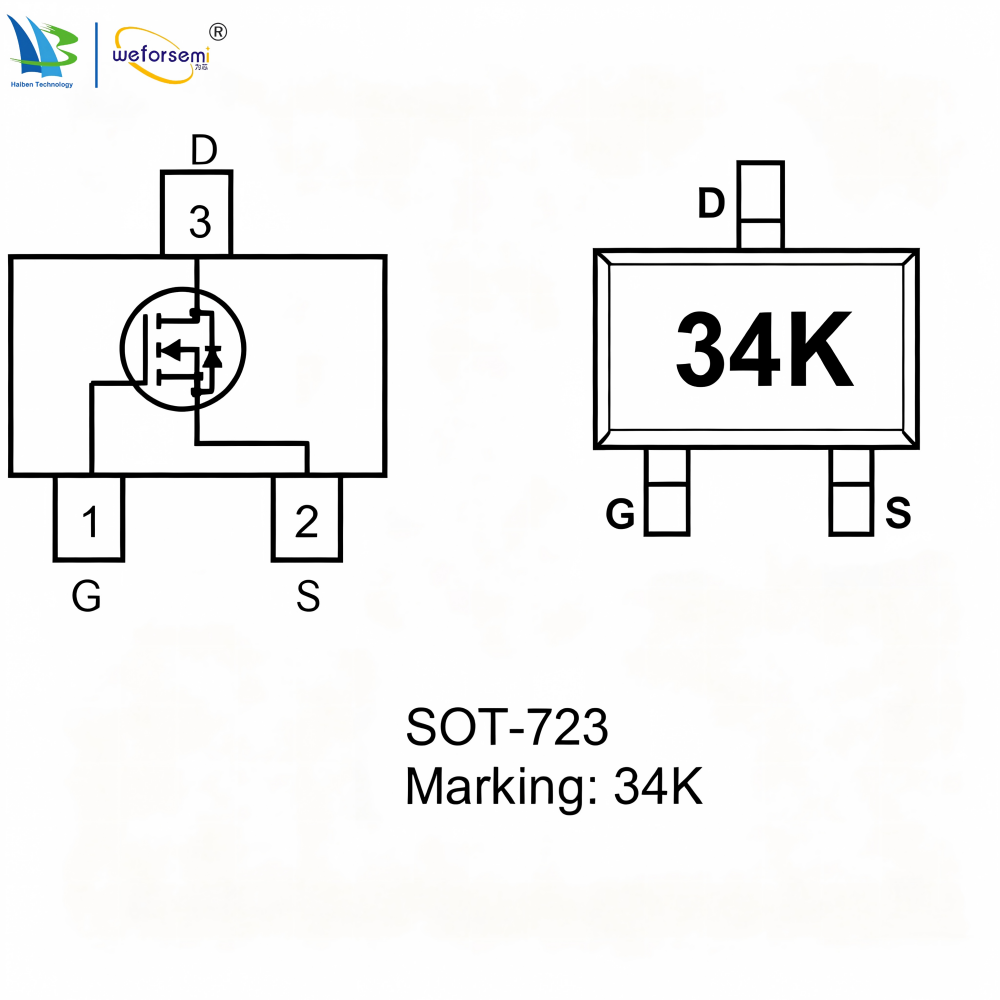

VC9320A_1 4


电子元器件通用图



Previous:
Next:
N-Channel Enhancement Mode MOSFET VC9320A-1 Advanced Design MOSFET N-Channel MOSFET Semiconductor VC9320A-1 MOSFET Semiconductor Enhanced N-Channel MOSFET VC9320A-1 Advanced MOSFET VC9320A-1 SOT-723 High-Performance N-Channel MOSFET SOT-723 N-Channel Enhancement MOSFET Premium N-Channel MOSFET VC9320A-1 Reliable N-Channel Enhancement MOSFET

Related Products

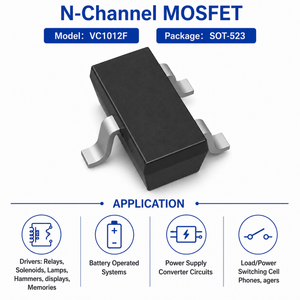

Factory Direct SOT-523 150mW VC1012F ESD 2000V N-Channel MOSFET TRANSISTOR for Global Distribution video
