Factory Direct SOT-523 P-Channel MOSFET Professional Electronic Component Low RDS Semiconductor MOSFET Electronic Product Assembly Services

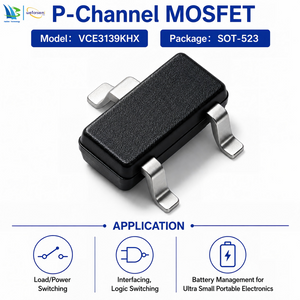

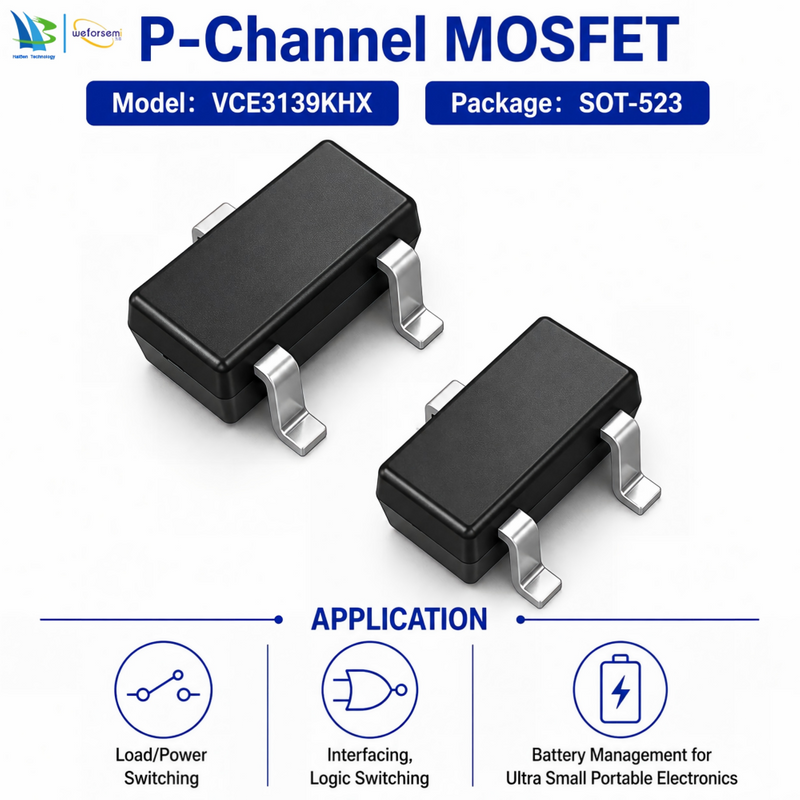

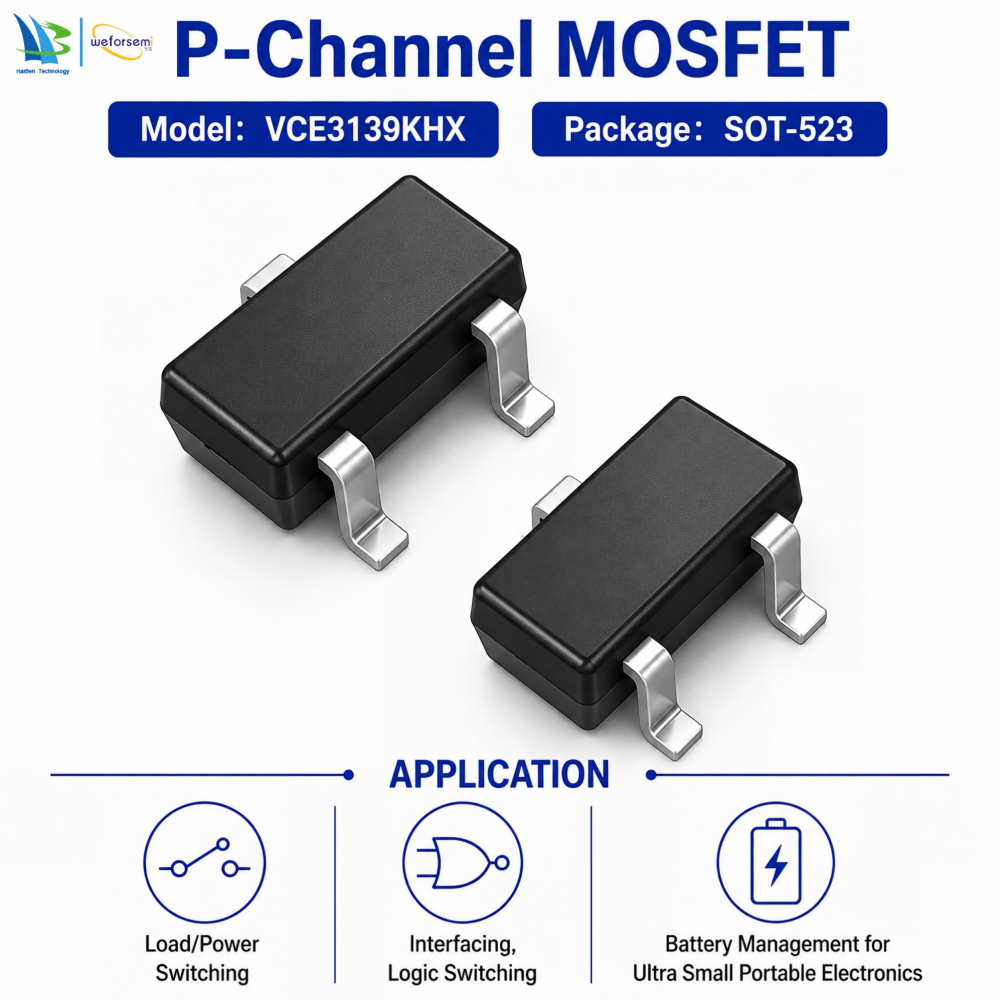

Factory Direct 150MW VCE3139KHX SOT-523 SMD P-Channel MOSFET OEM SKD Custom ODM Electronics Solutions

Factory Direct SOT-523 P-Channel MOSFET Professional Electronic Component Low RDS Semiconductor MOSFET Electronic Product Assembly Services

1.Tiny SOT-523 package saves PCB layout space

2.Stable low-power P-channel switching performance

3.Fast response speed with low conduction loss

4.Built-in ESD protection enhances service life

5.RoHS & halogen-free for global export standards

6.Factory direct supply, support OEM & SKD customization

Model:
VCE3139KHX
Brand:
Weforsemi
Code:
P-Channel MOSFET

Quantity:
Drain-Source Voltage:	-20V
Typical Gate-Source Voltage:	±12V
Continuous Drain Current (Note 1):	-0.8A
Power Dissipation (Note 1):	150MW
PACKAGE:	SOT-523
RDS(on):	375 mΩ@-4.5V
MODEL:	VCE3139KHX
Availability:





Inquire Add to Basket

Product Description

Factory Direct SOT-523 P-Channel MOSFET Professional Electronic Component Low RDS Semiconductor MOSFET Electronic Product Assembly Services

Product Description

General Features

VDSS= -20V ID= -0.8A
RDS(on) = 375 mΩ@-4.5V
RDS(on) = 495mΩ@-2.5V

FEATURE
Lead Free Product is Acquired
Surface Mount Package
P-Channel Switch with Low RDS(on)
Operated at Low Logic Level Gate Drive

APPLICATION
Load/Power Switching
Interfacing, Logic Switching
Battery Management for Ultra Small Portable Electronics

Maximum ratings (Ta=25ºC unless otherwise noted)

Parameter	Symbol	Value	Unit
Drain-Source Voltage	VDS	-20	V
Typical Gate-Source Voltage	VGS	±12	V
Continuous Drain Current (note 1)	ID	-0.8	A
Pulsed Drain Current (tp=10 μs)	IDM	-1.2	A
Power Dissipation (note 1)	PD	150	mW
Thermal Resistance from Junction to Ambient (note 1)	RθJA	833	ºC/W
Junction Temperature	TJ	150	ºC
Storage Temperature	TSTG	-55~+150	ºC
Lead Temperature for Soldering Purposes(1/8" from case for 10 s)	TL	260	ºC
