Factory Direct 150MW VCE3139KHX SOT-523 SMD P-Channel MOSFET OEM SKD Custom ODM Electronics Solutions

Factory Direct 150MW VCE3139KHX SOT-523 SMD P-Channel MOSFET OEM SKD Custom ODM Electronics Solutions

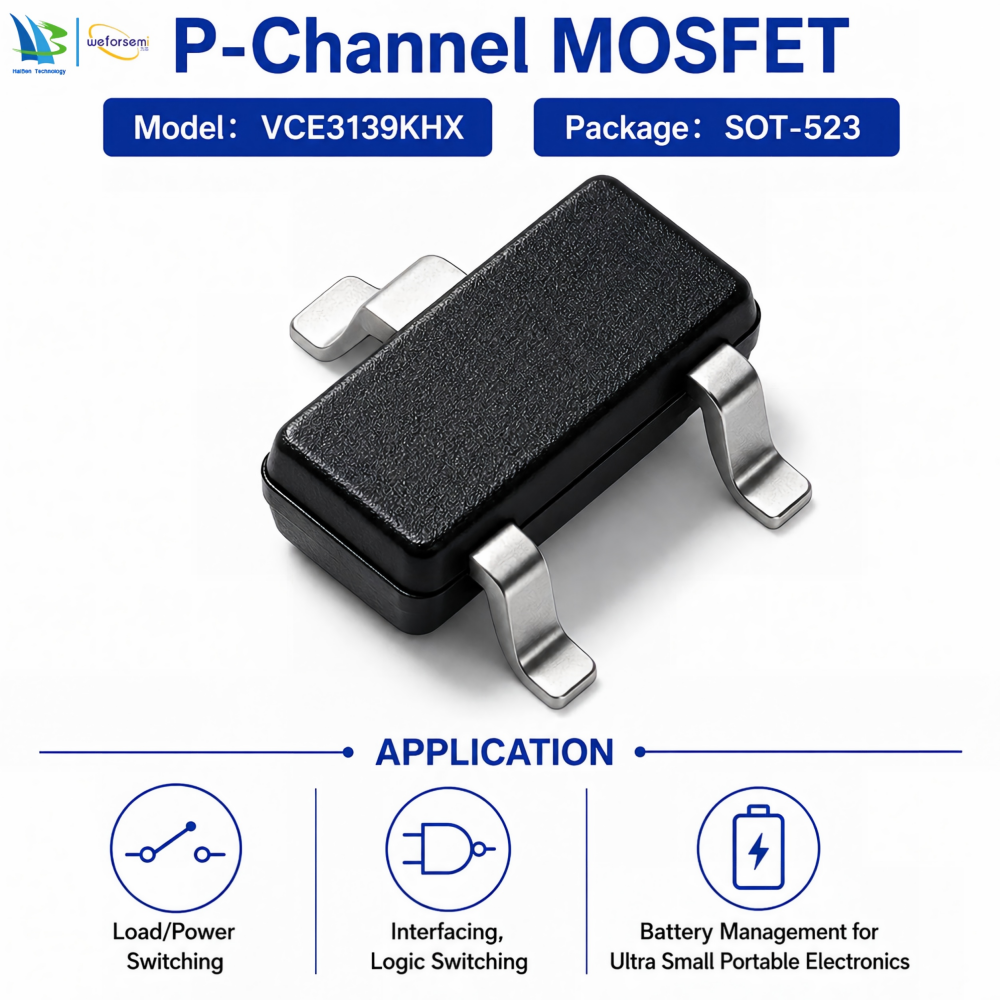

1.Tiny SOT-523 package saves PCB layout space

2.Stable low-power P-channel switching performance

3.Fast response speed with low conduction loss

4.Built-in ESD protection enhances service life

5.RoHS & halogen-free for global export standards

6.Factory direct supply, support OEM & SKD customization

Model:
VCE3139KHX
Brand:
Weforsemi
Code:

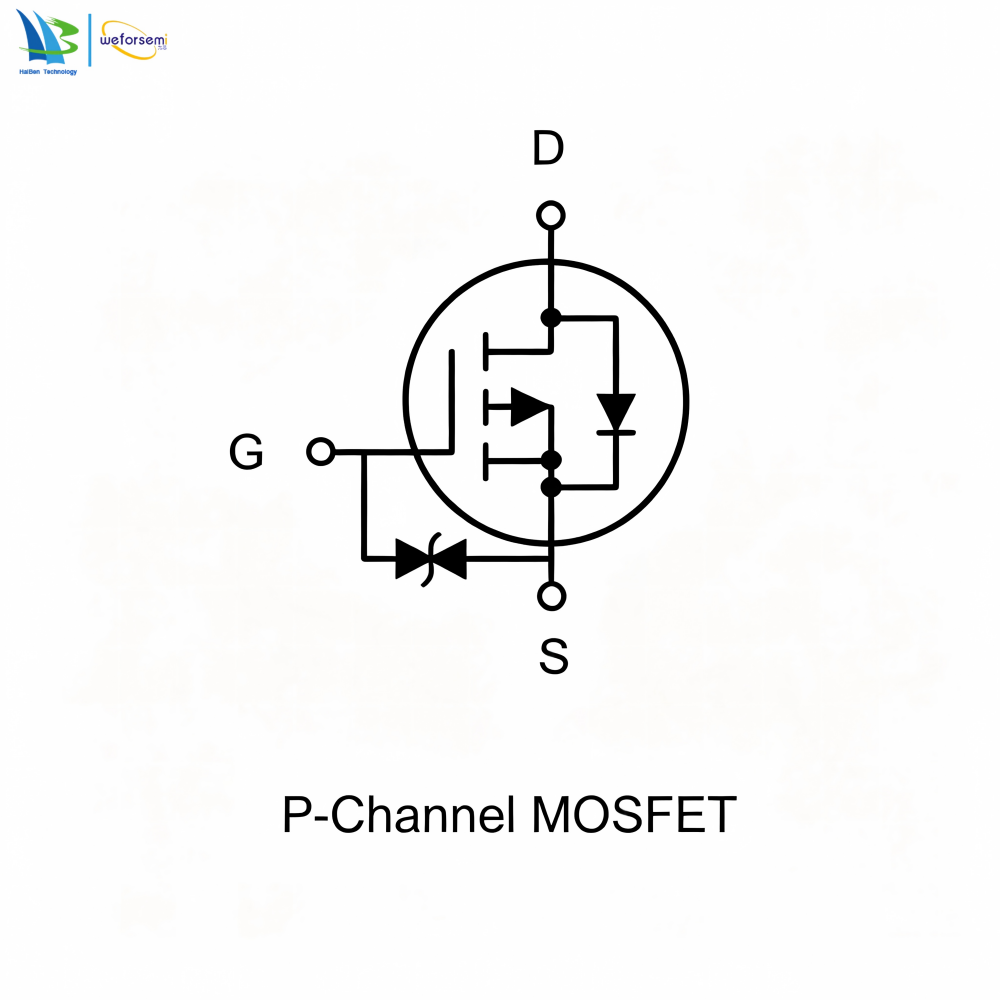

P-Channel MOSFET

Quantity:
Drain-Source Voltage:	-20V
Typical Gate-Source Voltage:	±12V
Continuous Drain Current (Note 1):	-0.8A
Power Dissipation (Note 1):	150MW

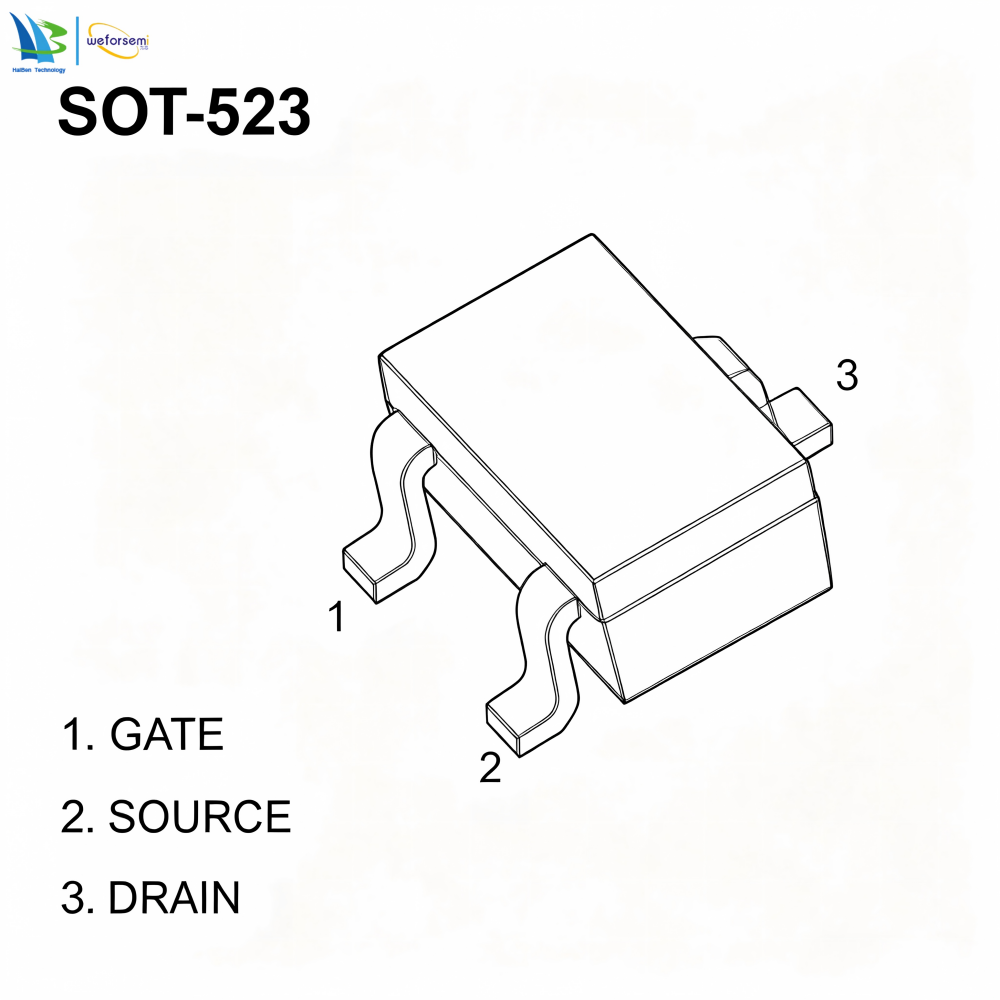

PACKAGE:	SOT-523
RDS(on):	375 mΩ@-4.5V
MODEL:	VCE3139KHX
Availability:





Inquire Add to Basket

Product Description

Factory Direct 150mW VCE3139KHX SOT-523 P-Channel MOSFET OEM SKD Custom

Product Description

General Features

VDSS= -20V ID= -0.8A
RDS(on) = 375 mΩ@-4.5V
RDS(on) = 495mΩ@-2.5V

FEATURE
Lead Free Product is Acquired
Surface Mount Package
P-Channel Switch with Low RDS(on)
Operated at Low Logic Level Gate Drive

APPLICATION
Load/Power Switching
Interfacing, Logic Switching
Battery Management for Ultra Small Portable Electronics

Maximum ratings (Ta=25ºC unless otherwise noted)

Parameter	Symbol	Value	Unit
Drain-Source Voltage	VDS	-20	V
Typical Gate-Source Voltage	VGS	±12	V
Continuous Drain Current (note 1)	ID	-0.8	A
Pulsed Drain Current (tp=10 μs)	IDM	-1.2	A
Power Dissipation (note 1)	PD	150	mW
Thermal Resistance from Junction to Ambient (note 1)	RθJA	833	ºC/W
Junction Temperature	TJ	150	ºC
Storage Temperature	TSTG	-55~+150	ºC
Lead Temperature for Soldering Purposes(1/8" from case for 10 s)	TL	260	ºC

Important Notice and Disclaimer
Weforsemi reserves the right to make changes to this document and its products and specifications at any time without notice. Customers should obtain and confirm the latest product information and specifications before final design, purchase or use.
Weforsemi makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does Weforsemi assume any liability for application assistance or
customer product design. Weforsemi does not warrant or accept any liability with products which are purchased or used for any unintended or unauthorized application.
No license is granted by implication or otherwise under any intellectual property rights of Weforsemi .
Weforsemi products are not authorized for use as critical components in life support devices or systems without express written approval of Weforsemi .

VCE3139KHX 2 VCE3139KHX 3
