High-Performance NPN Transistor VCSS8050B-1.5A 300MW SOT-23 Manufacturer SKD Solution Support Electronic Product Assembly Services

High-Performance NPN Transistor VCSS8050B-1.5A 300MW SOT-23 Manufacturer SKD Solution Support Electronic Product Assembly Services

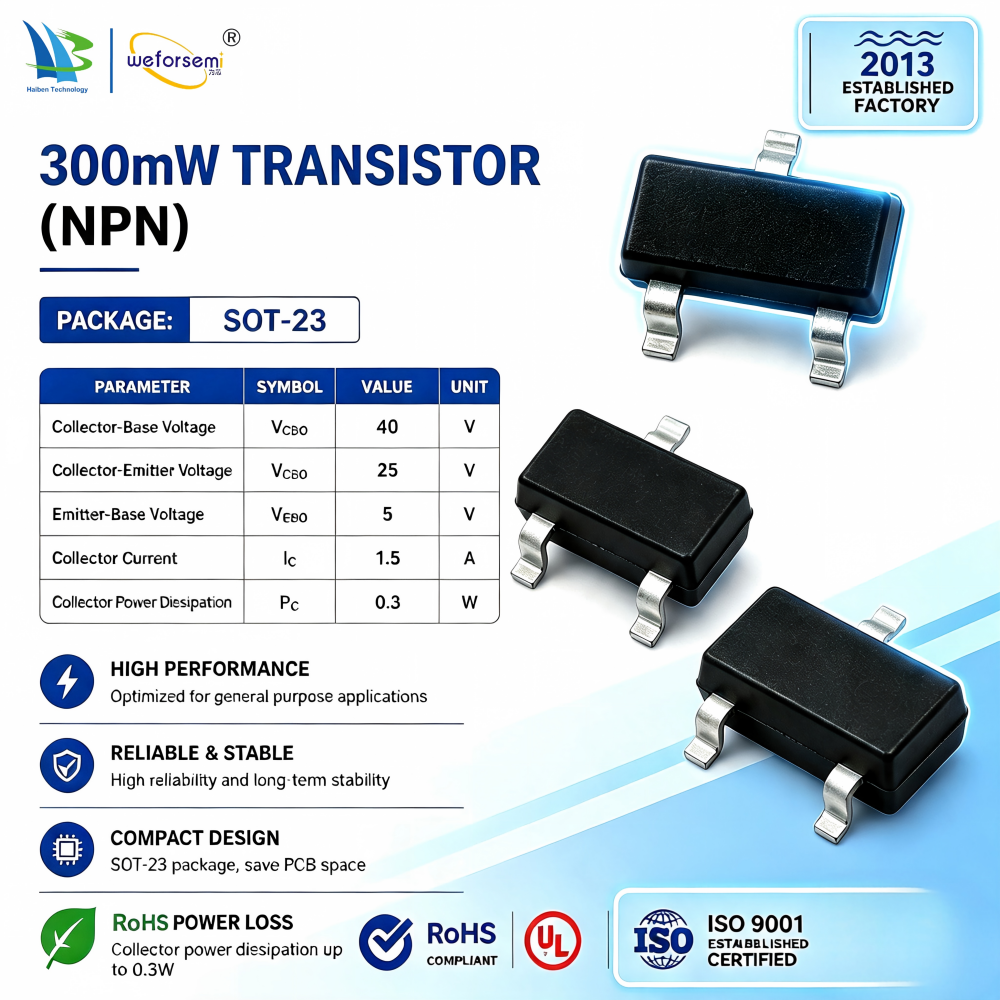

1.High-performance NPN silicon transistor, 1.5A continuous collector current, ideal for switching applications

2.Compact SOT-23 surface-mount package, saves PCB board space

3.Stable electrical performance, low power consumption for long-time operation

4.RoHS & REACH compliant, meets international environmental requirements

5.Wide application for home appliances, LED drive, smart PCBA control board

6.Strict quality control, full-test before delivery, low failure rate

7.Fast switching speed for signal switching and circuit drive

Model:
VCSS8050B-1.5A
Brand:
Weforsemi
Code:
NPN Transistor

Quantity:
Mounting Type:	SMD Triode
Power Rating::	Small Power
Structure:	NPN
Collector Power Dissipation:	300MW
Emitter-Base Voltage:	5V
Collector Current -Continuous:	1.5A
PACKAGE:	SOT-23
Availability:





Inquire Add to Basket

Product Description

High-Performance NPN Transistor VCSS8050B-1.5A 300MW SOT-23 Manufacturer SKD Solution Support Electronic Product Assembly Services

Product Description

FEATURES
Complimentary to VCSS8550B-1.5A

MAXIMUM RATINGS (TA=25ºC unless otherwise noted)

Vcbo (Collector-Base Voltage): 40V
Vceo (Collector-Emitter Voltage): 25V
Vebo (Emitter-Base Voltage): 5V
Ic (Collector Current-Continuous): 1.5A
Pc (Collector Power Dissipation): 0.3W
Tj (Junction Temperature): 150ºC
Tstg (Storage Temperature): -55ºC ~ 150ºC
