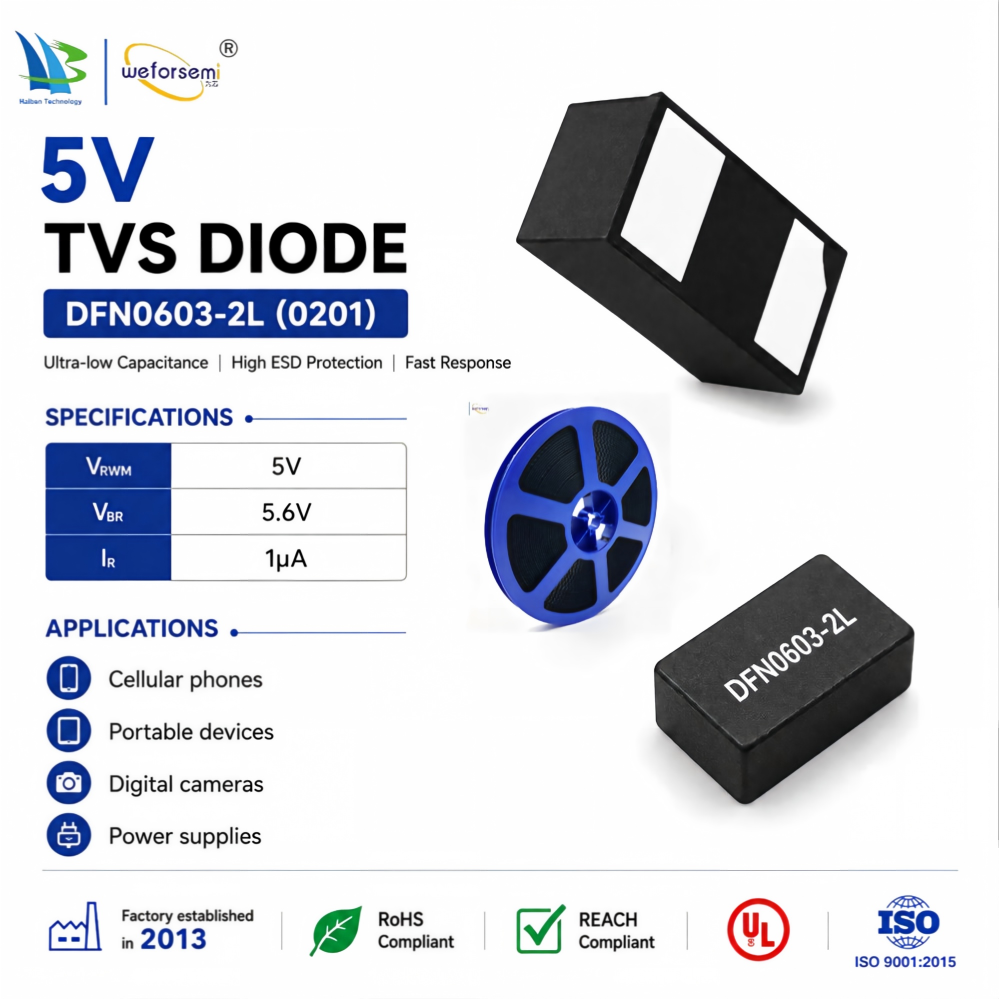

VCTB5V0P215YW
Weforsemi
TVS Diode
| Feature1: | |
|---|---|
| Feature2: | |
| Feature3: | |
| Feature4: | |
| Applications1: | |
| Applications2: | |
| Applications3: | |
| Availability: | |
| Quantity: | |
DFN0603-2L(0201) Semiconductor Manufacturer VCTB5V0P215YW ESD Diodes SMD Electronic Component Tvs Diode
Description
The VCTB5V0P215YW protects sensitive semiconductor components from damage or upset due to electrostatic discharge (ESD) and other voltage induced transient events. They feature large cross-sectional area junctions for conducting high transient currents, offer desirable electrical characteristics for board level protection, such as fast response time and low operating voltage. It gives designers the flexibility to protect one unidirectional line in applications where arrays are not practical.
Feature

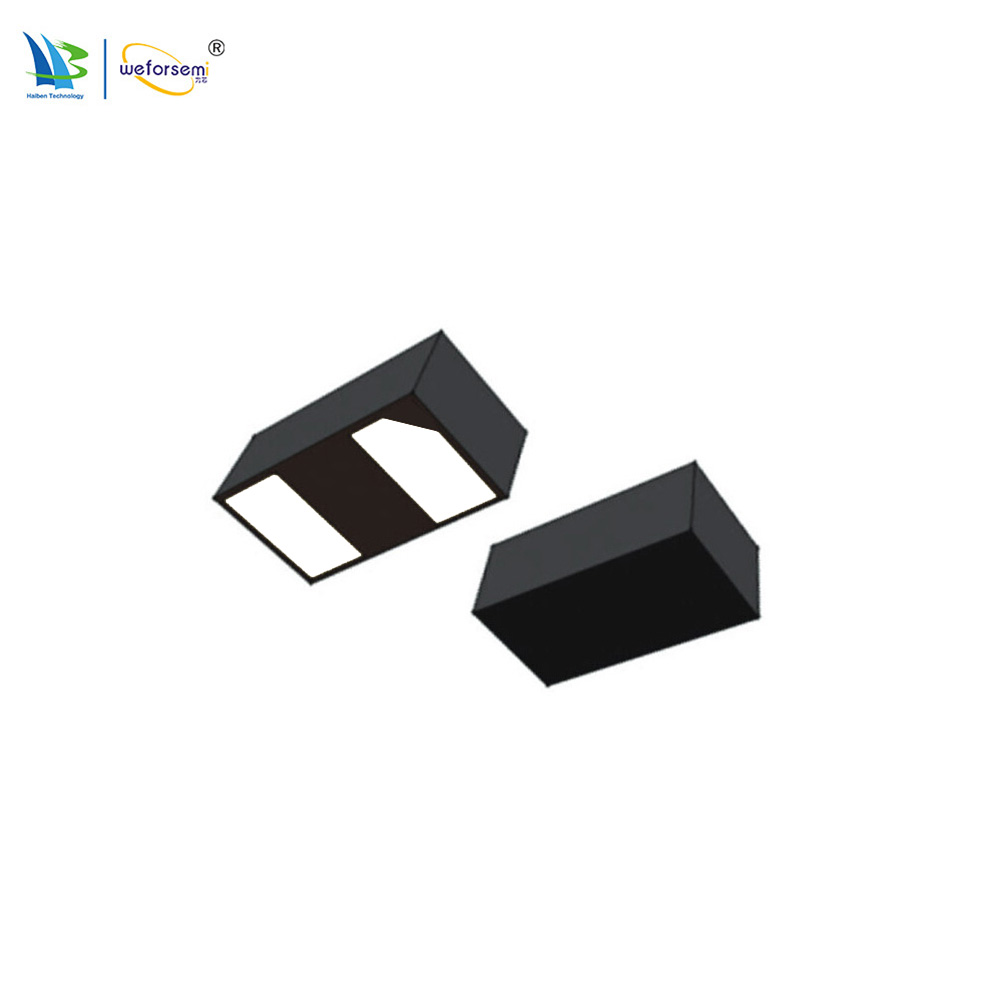

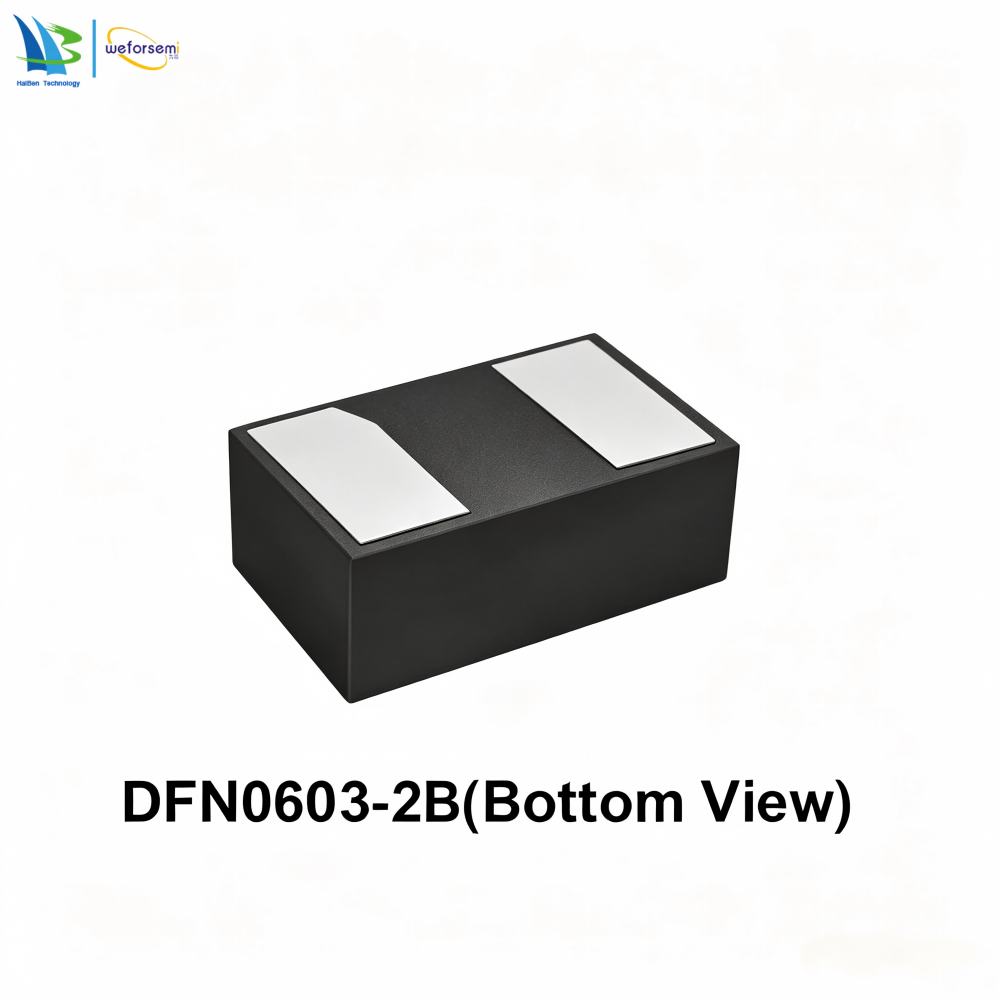

DFN0603-2L package
Replacement for MLV(0201)
Bidirectional configurations
Response time is typically < 1 ns
Low clamping voltage
RoHS compliant
Transient protection for data lines to
IEC 61000-4-2(ESD) ±30KV(air), ±30KV(contact); IEC 61000-4-4 (EFT) 40A (5/50ns)
Applications
Cellular phones
Portable devices
Digital cameras
Power supplies

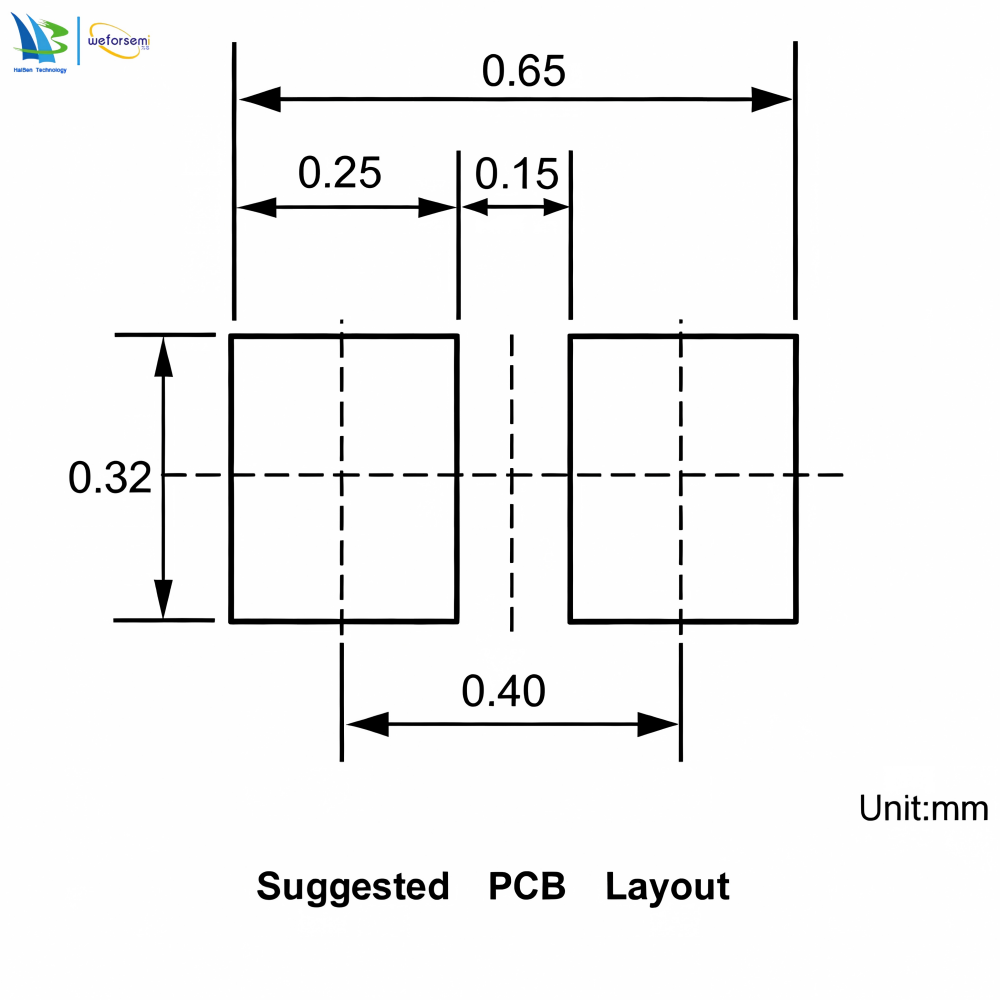

Mechanical Characteristics
Mounting position: Any
Qualified max reflow temperature:260ºC
Device meets MSL 1 requirements
DFN0603-2L without plating
Electrical characteristics per line@25ºC( unless otherwise specified)
| Parameter | Symbol | Conditions | Min. | Typ. | Max. | Units |
| Peak Reverse Working Voltage | VRWM | 5.0 | V | |||
| Breakdown Voltage | VBR | It = 1mA | 5.6 | V | ||
| Reverse Leakage Current | IR | VRWM = 5V T=25ºC | 1 | μA | ||
| Clamping Voltage | VCL | IPP=16A tp=100ns | 27 | V | ||
| Clamping Voltage | VC | IPP = 1A tP = 8/20μs | 11 | 13 | V | |
| Clamping Voltage | VC | IPP = 5.5A tP = 8/20μs | 21 | 23 | V | |
| Junction Capacitance | Cj | VR=0V f = 1MHz | 0.25 | 0.32 | pF |
