Wholesale price 2.3V-3.6V SOP-8-208mil 128Mbit Serial Flash Memory Chip Integrated Circuit New and Original

Wholesale price 2.3V-3.6V SOP-8-208mil 128Mbit Serial Flash Memory Chip Integrated Circuit New and Original

1.128Mbit Uniform-Sector Serial NOR Flash, 2.3V-3.6V wide operating voltage

2.Support Single / Dual / Quad SPI, QPI & DTR high-speed interface, max 120MHz clock frequency

3.Ultra-low power consumption, ideal for battery-powered portable devices

4.Multiple erase options: 4K sector /32K /64K block / full-chip erase

5.Built-in hardware & software write-protection, OTP security register & unique 128-bit ID

6.Widely used for IoT, smart home, consumer electronics code storage

Model:
BL25Q128G
Brand:
Weforsemi/Haiben/Distributor Brands
Code:
128M-bit SPI NOR Flash

Quantity:
Features1:	128M-bit Serial Flash
Features2:	Standard, Dual, Quad SPI, QPI
Features3:	High Speed Clock Frequency
Features4:	Software/Hardware Write Protection
Features5:	Data Retention and Endurance

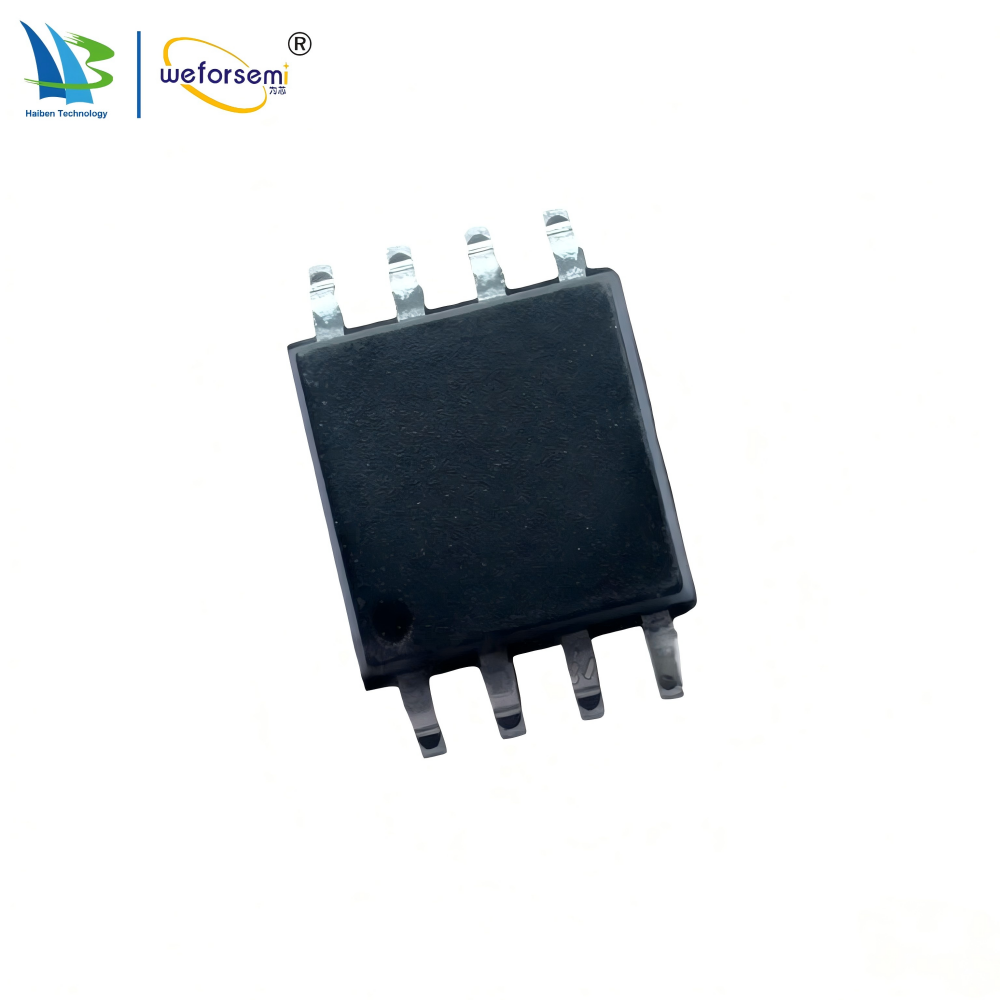

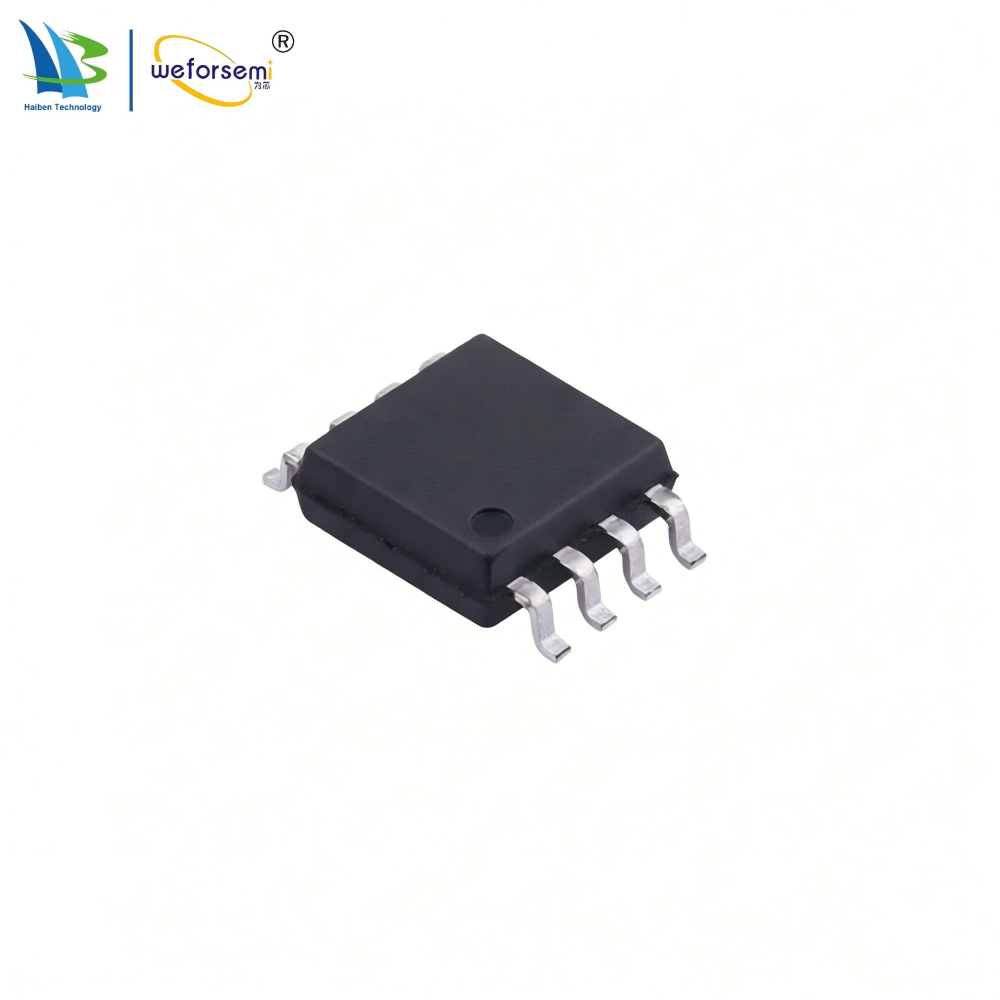

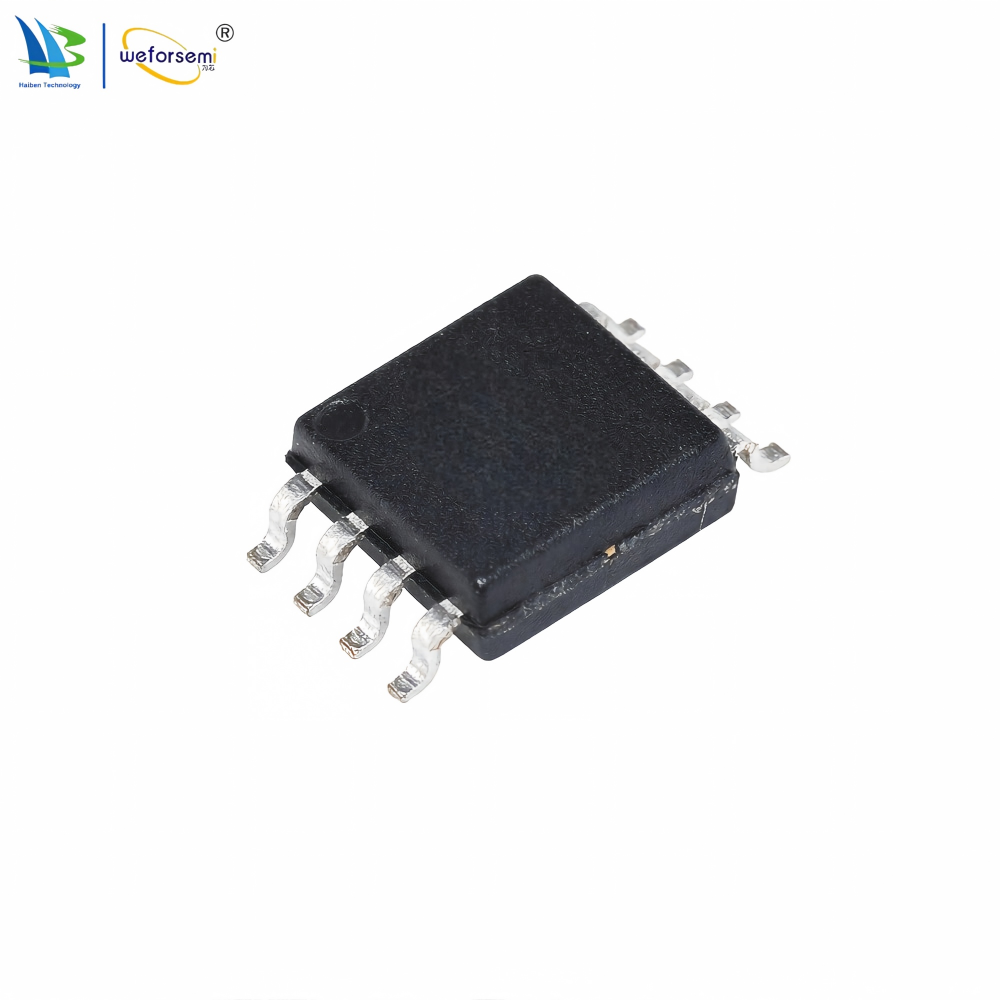

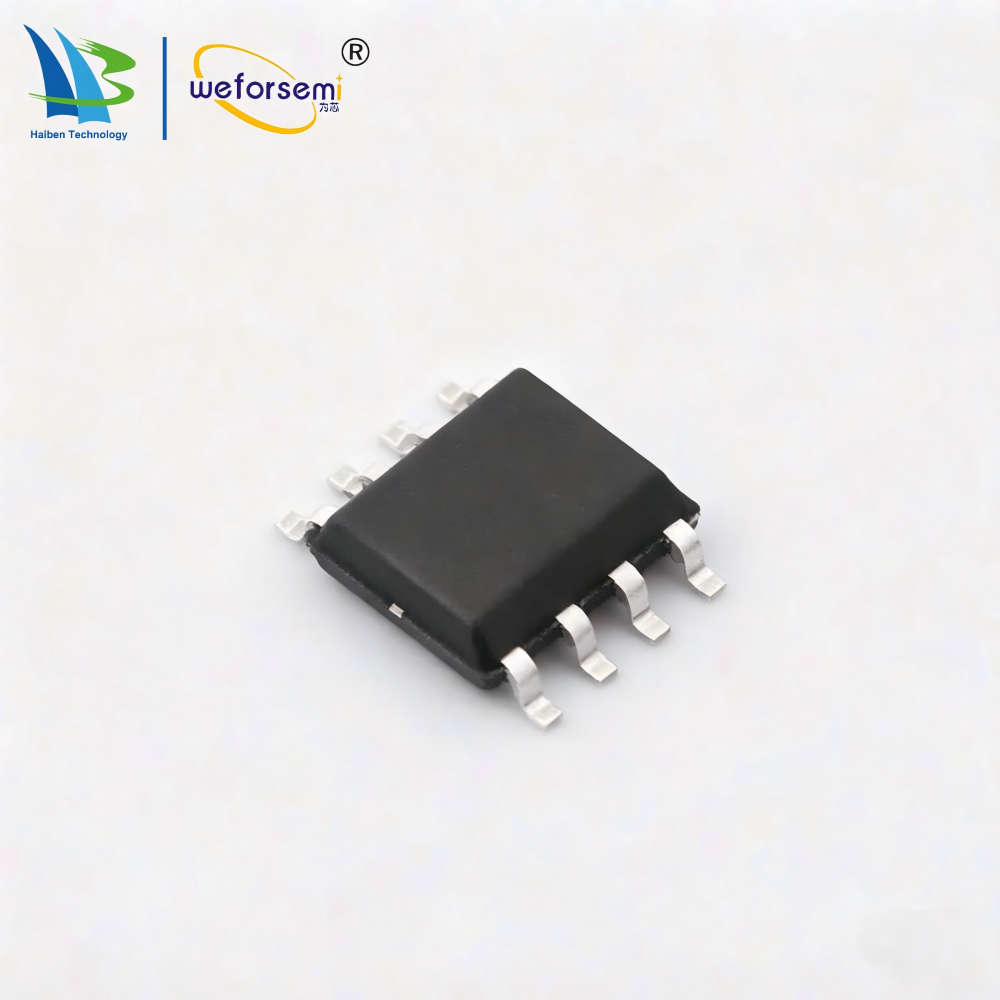

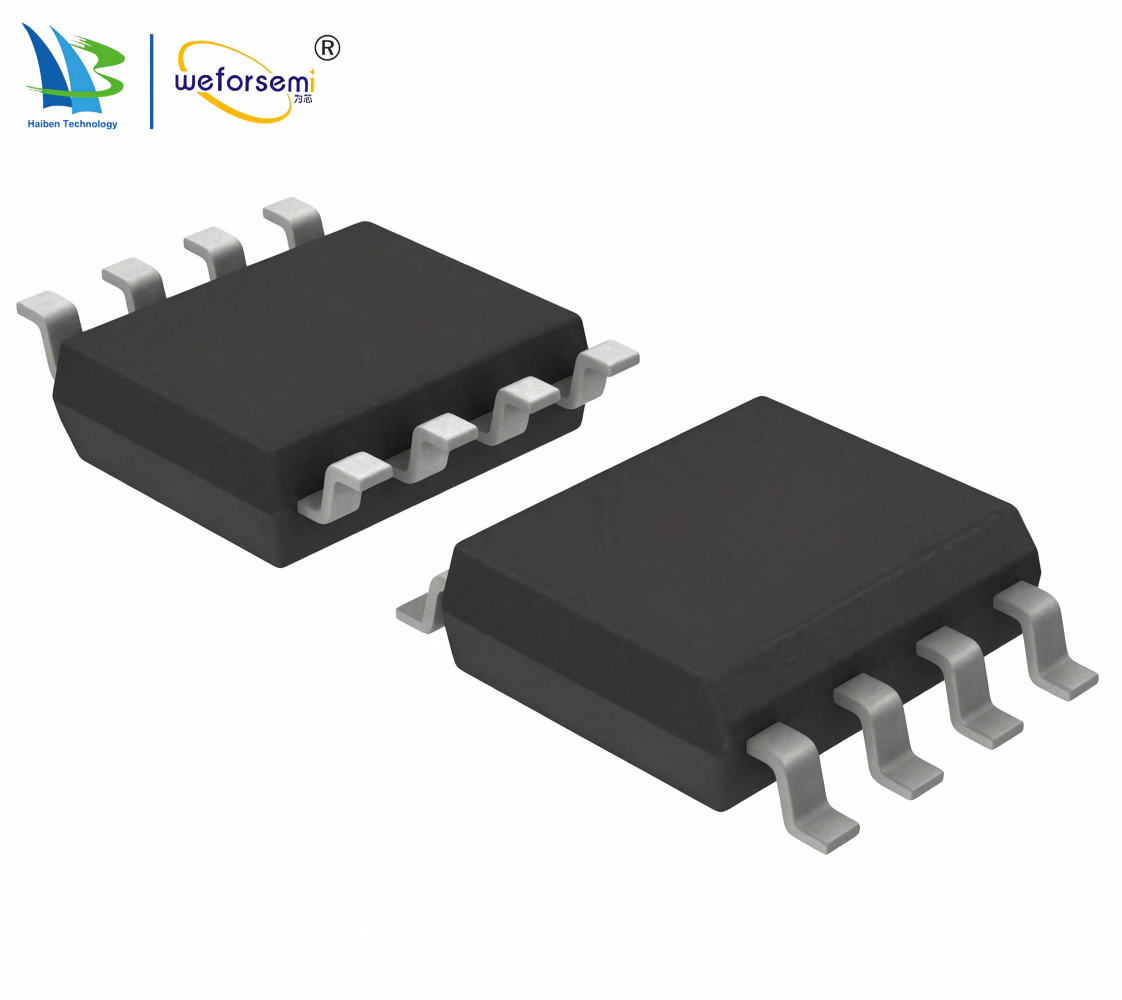

Package Information:	SOP8 208mil
Single Power Supply Voltage:	2.3V-3.6V
Availability:





Inquire Add to Basket

Product Description

2.3V-3.6V SOP-8-208mil 128Mbit Serial Flash Memory Chip Integrated Circuit New and Original

Product Description

Product Features

▪ 128M-bit Serial Flash

1. 16M-Byte

2. 256 Bytes per programmable page

▪ Standard, Dual, Quad SPI, QPI

1.Standard SPI: SCLK, CS#, SI, SO, WP#,

HOLD#

2. Dual SPI: SCLK, CS#, IO0, IO1, WP#,

HOLD#

3. Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3

4. QPI: SCLK, CS#, IO0, IO1, IO2, IO3

▪ High Speed Clock Frequency

1.110MHz for fast read with 30PF load

2 Dual I/O Data transfer up to 220 Mbits/s

3. Quad I/O Data transfer up to 440 Mbits/s

4. QPI Data transfer up to 416 Mbits/s

▪ Software/Hardware Write Protection

1.Write protect all/portion of memory via

software

2. Enable/Disable protection with WP# Pin

3. Top/Bottom Block protection

▪ Data Retention and Endurance

1.20-year data retention typical

2. Minimum 3,000 Program/Erase Cycles

▪ Allows XIP (eXecute In Place) Operation
▪ Fast Program/Erase Speed
▪ Flexible Architecture
▪ Low Power Consumption
▪ Advanced Security Features

Single Power Supply Voltage

2.3V-3.6V

Package Information

SOP8 208mil

Product Applications

▪ Equipment of Base Station

▪ Smart Wearable Devices

▪ IOT Application

▪ Industrial Application

Architecture
Table 2 Memory Architecture

Each device has	Each block has	Each sector has	Each page has
16M	64(1)/32(2) K	4K	256	Bytes
64K	256(1)/128(2)	16	-	Pages
4K	16(1)/8(2)	-	-	Sectors
256(1)/512(2)	-	-	-	Blocks
