Low Vf 150mW VC520S8-30F SOD-882 Schottky Barrier Diode High Frequency Electronic Components Diodes

1.Ultra-Compact SOD-882 Package for Space-Saving Design
2.Low Forward Voltage Drop for Enhanced Energy Efficiency
3.Ultra-Fast Switching Speed Ideal for High-Frequency Circuits
4.Original VC520S8-30F with Stable Quality and Bulk Supply

  • VC520S8-30F

  • Weforsemi

  • SOD-882 Schottky Barrier Diode

Power Dissipation:
150mW
Storage Temperature Range:
-55 to +125°C
Operating Junction Temperature:
+125°C
DC Reverse Voltage:
30v
Average Forward Current:
200mA
Peak Forward Surge Current:
0.5A
Features:
Low Forward Voltage Drop
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Low Vf 150mW VC520S8-30F SOD-882 Schottky Barrier Diode High Frequency Electronic Components Diodes


Specification Features:

Low Forward Voltage Drop

Small Surface Mounting Type (DFN1006)

RoHS Compliant

Green EMC

Matte Tin(Sn) Lead Finish

Band Indicates Cathode

Weight: approx. 0.001g


Absolute Maximum Ratings    TA  = 25°C unless otherwise noted

Symbol Parameter Value Units
PD Power Dissipation 150 mW
TSTG Storage Temperature Range -55 to +125 °C
TJ Operating Junction Temperature +125 °C
VR DC Reverse Voltage 30 V
IF(AV) Average Forward Current 200 mA
IFSM Peak Forward Surge Current
(At 8.3ms single half sine-wave)		 0.5 A

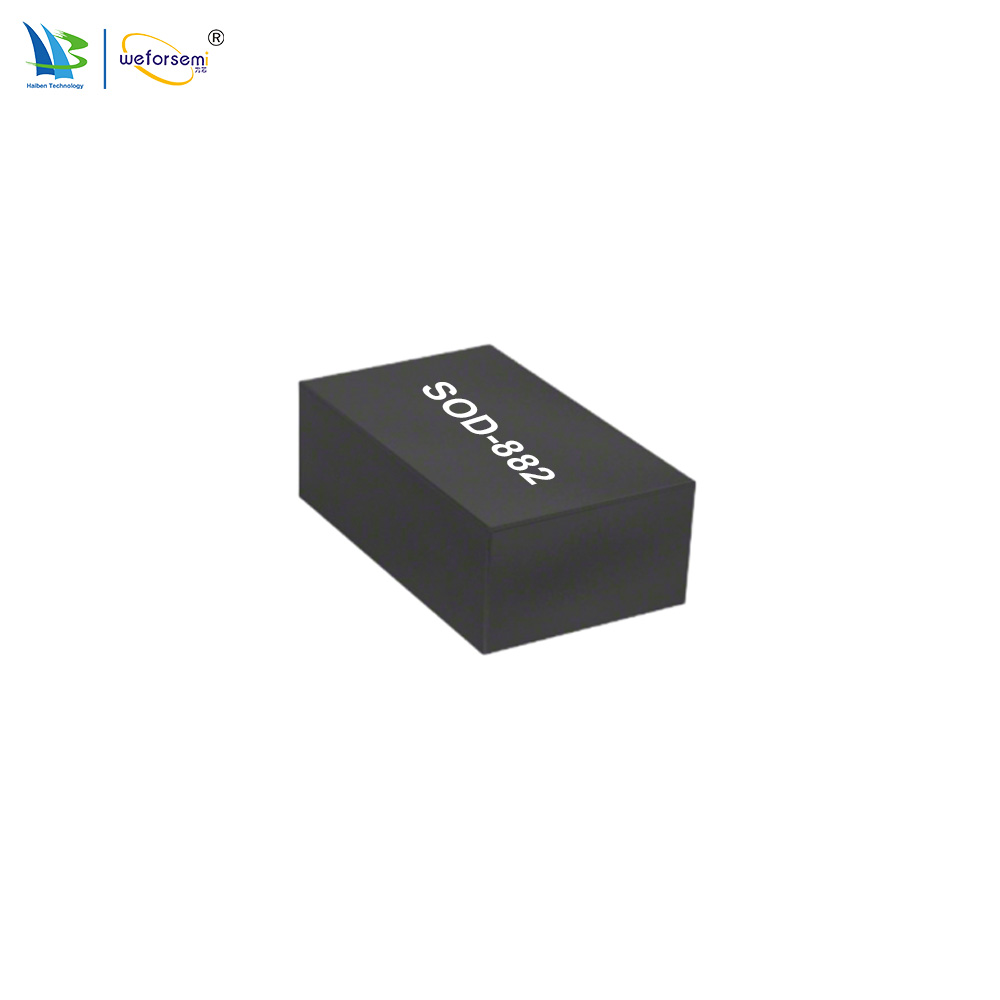

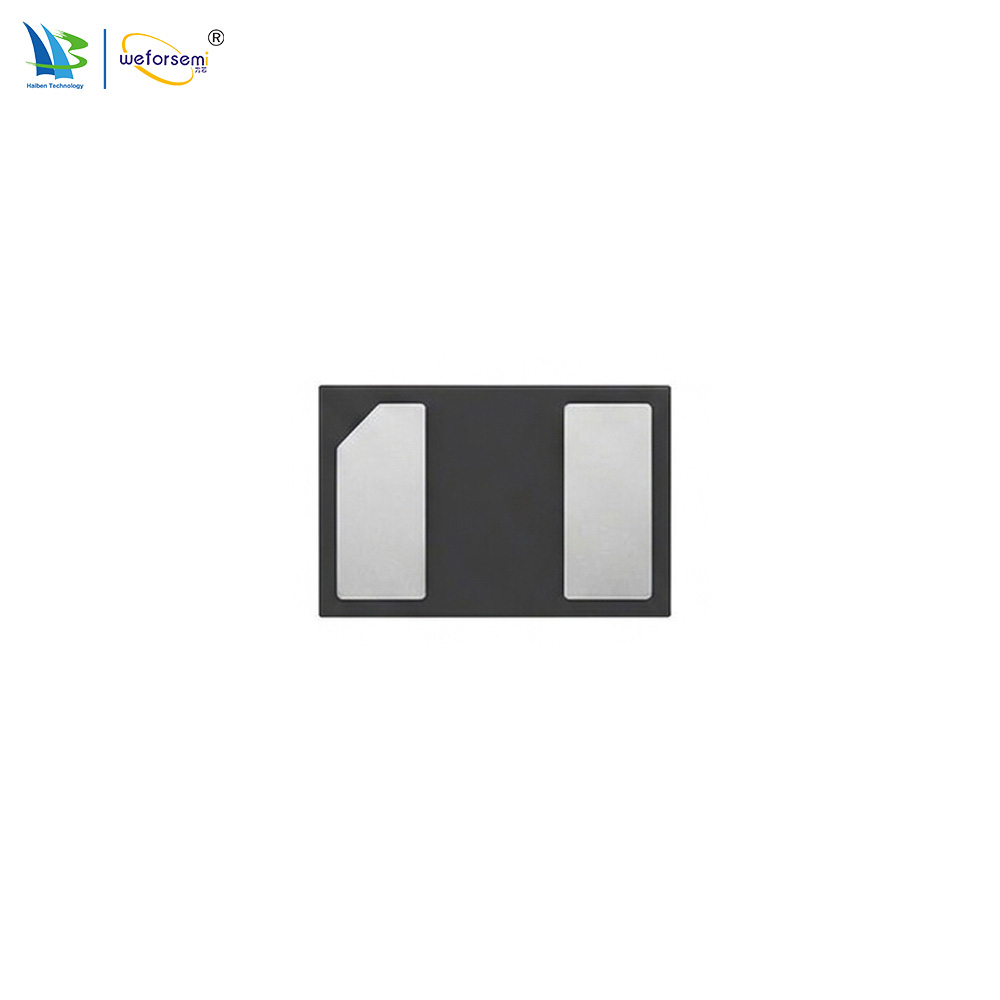

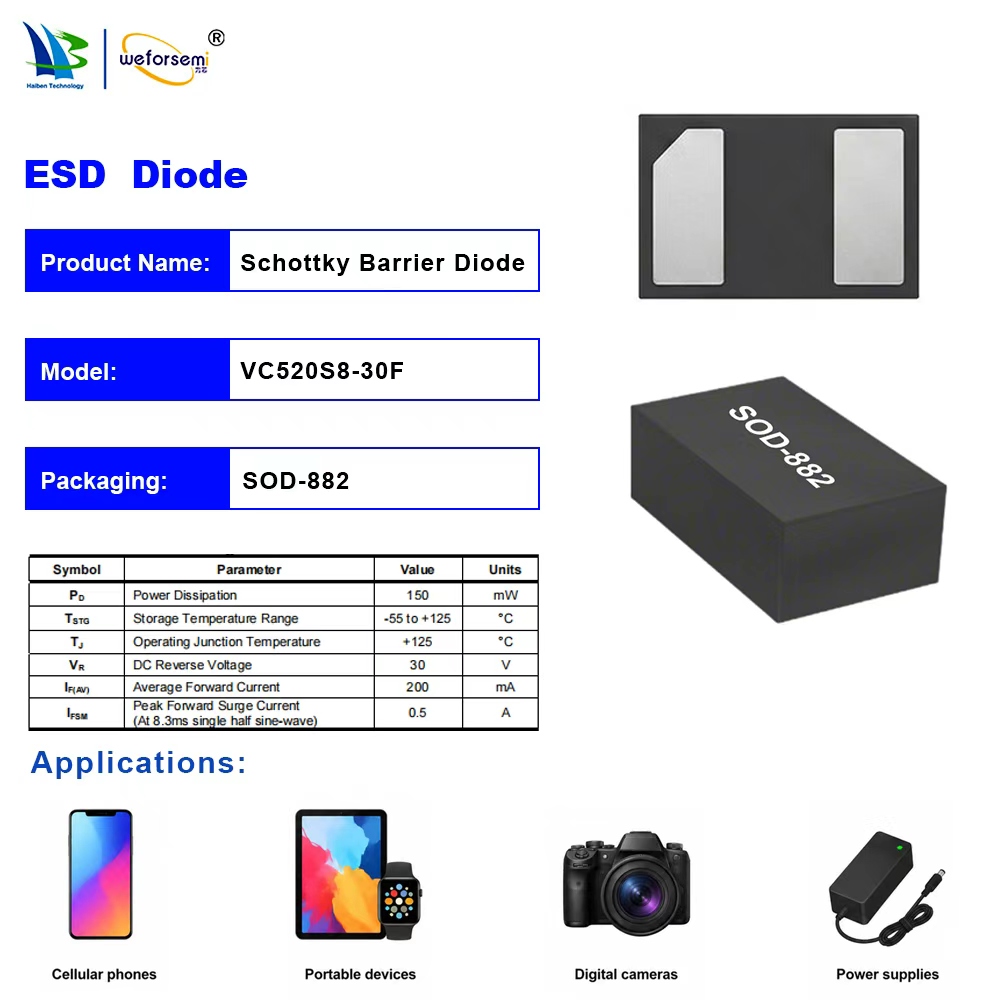

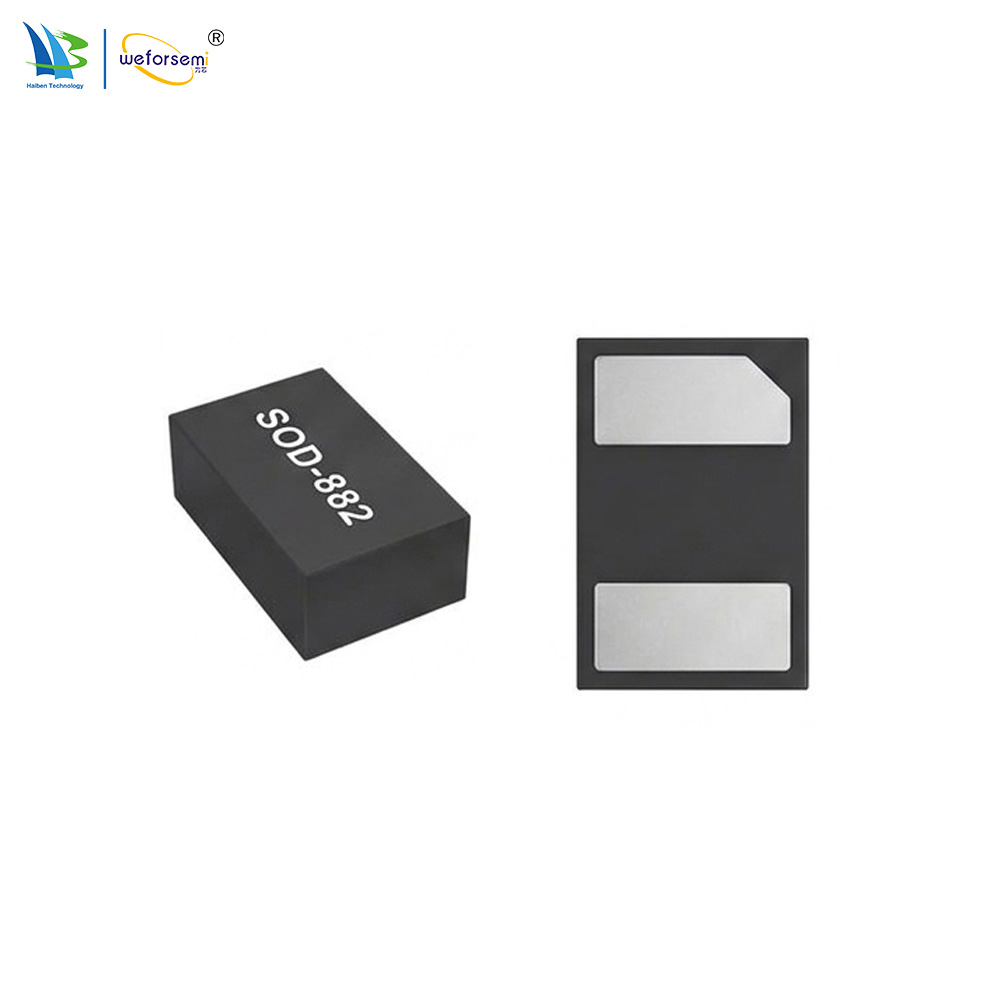

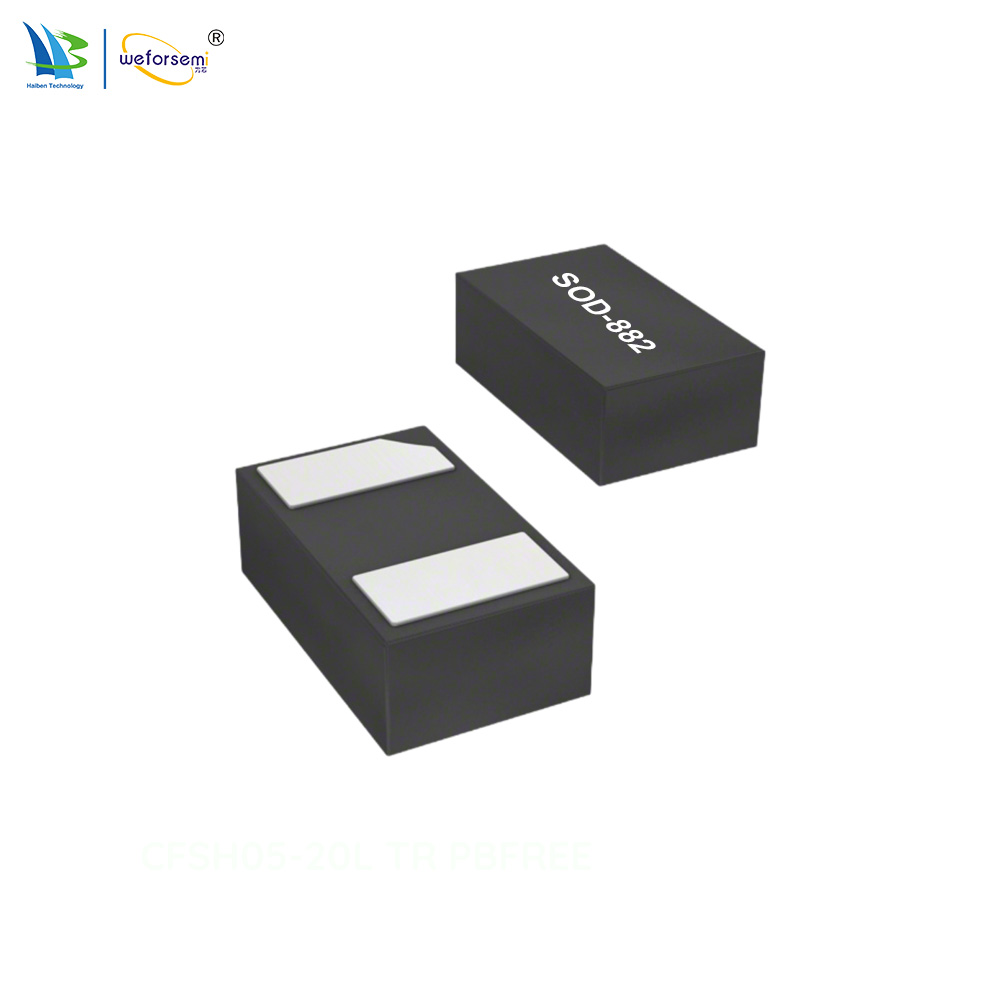

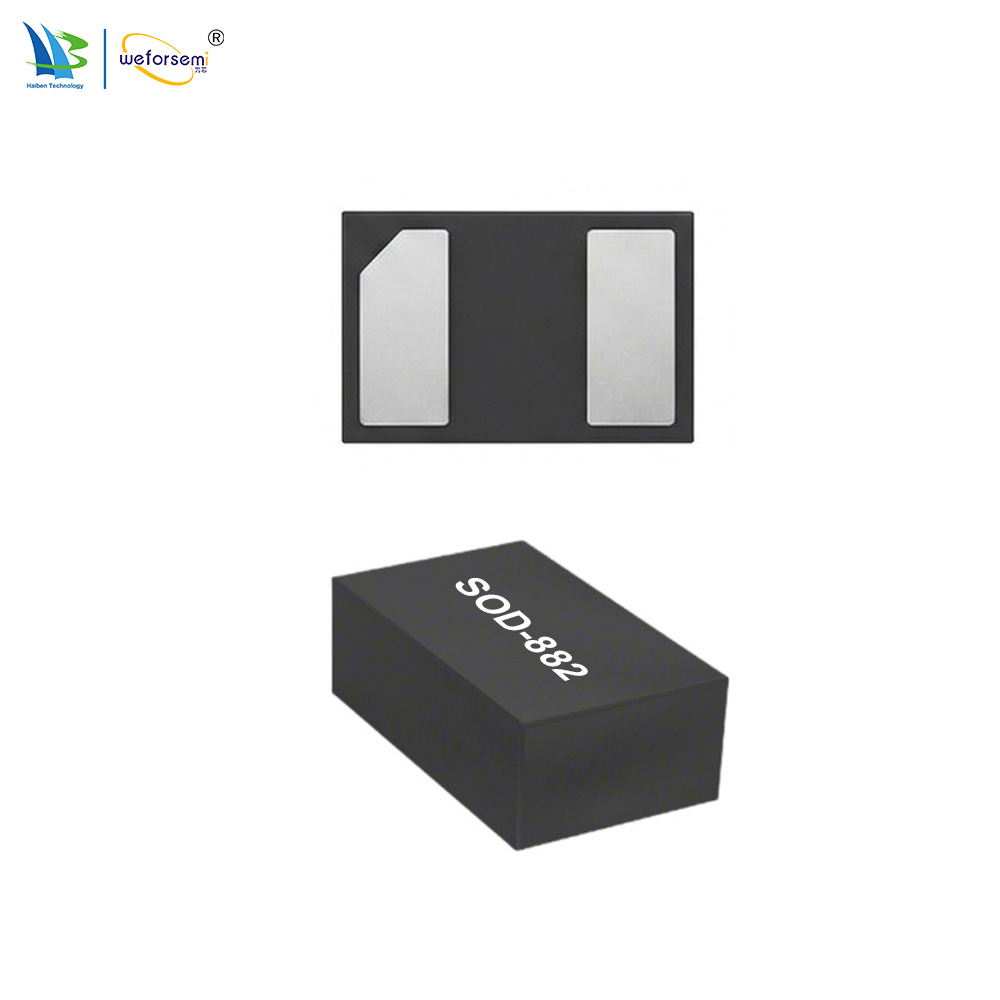

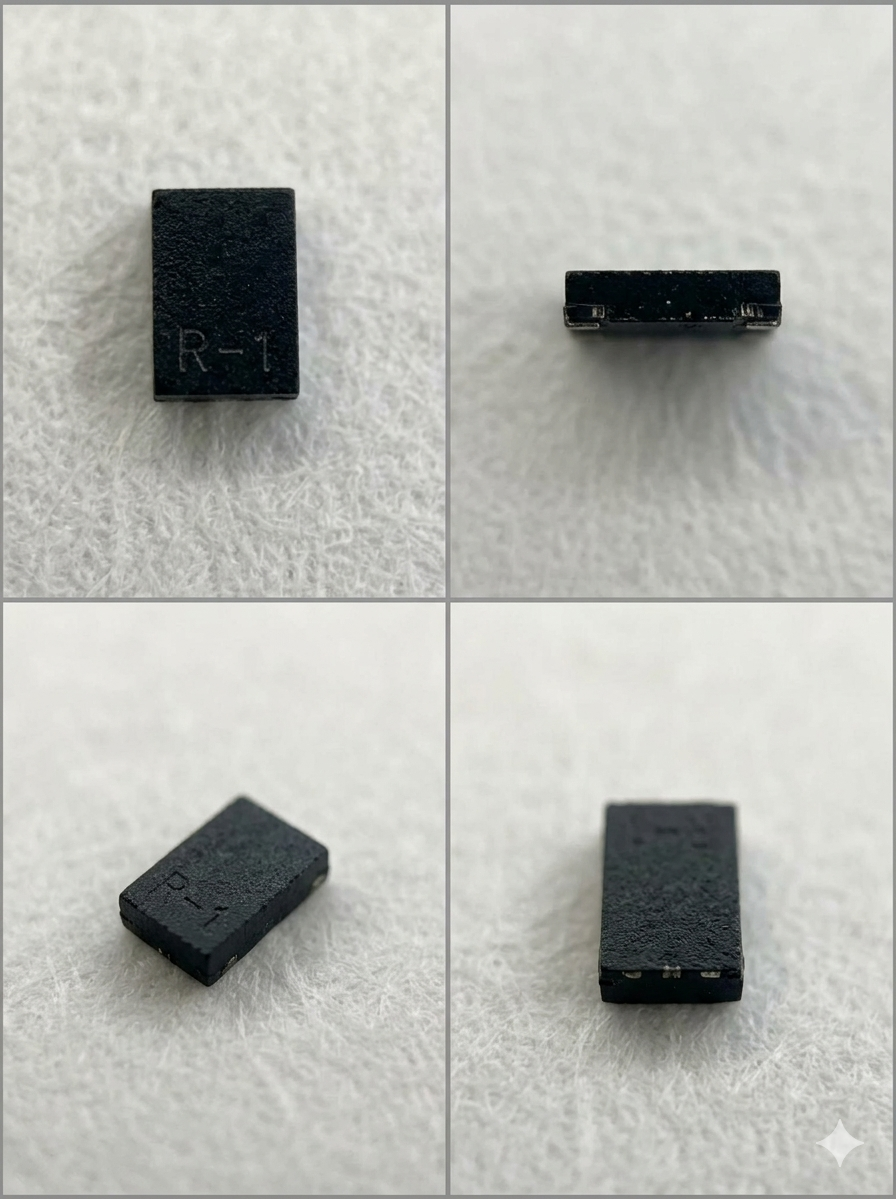

SOD-882SOD-882 (8)SOD-882 (1)SOD-882 (10)SOD-882 (1)
