Home » Products » Transistors / Discrete Semiconductors » Bipolar Junction Transistors (BJT) / Triodes » Advanced High-Tech Design 150mW SOT-523 Ultra-Small SMD NPN Transistor with Consistent Performance OEM Electronics Manufacturer

1.Ultra-small SOT-523 surface mount package, occupies less PCB space, ideal for miniaturized, portable and wearable electronic equipment

2.VC2SC4617F NPN silicon general purpose transistor, excellent small signal switching and amplification characteristics

3.Low saturation voltage, stable current gain, low power consumption during continuous operation

4.Wide operating temperature range, outstanding parameter consistency for large-scale SMT mass production

5.Factory direct supply, flexible MOQ, support OEM marking and customized packaging

6.High-tech advanced design, stable stock supply to support SKD complete machine projects

Quantity:
Collector Power Dissipation:	150MW
Collector-Base Voltage:	50V
Collector-Emitter Voltage:	50V
Emitter-Base Voltage:	5V
Collector Current - Continuous:	100mA

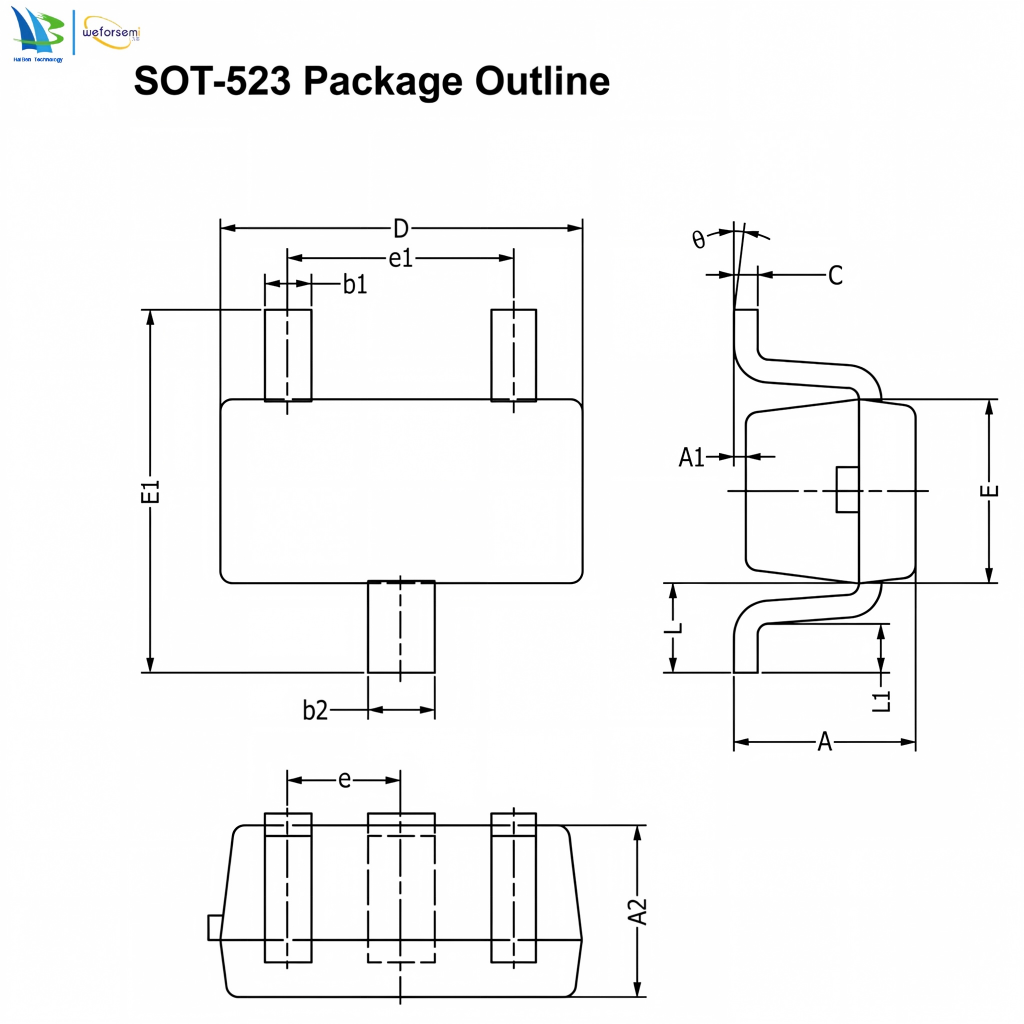

PACKAGE:	SOT-523
Availability:





Inquire Add to Basket

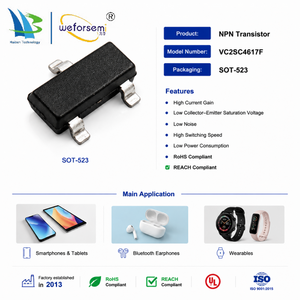

VC2SC4617F SOT-523 NPN General Purpose Transistor For Small Signal Amplification & Switching

Advanced High-Tech Design 150mW SOT-523 Ultra-Small SMD NPN Transistor with Consistent Performance OEM Electronics Manufacturer

FEATURES:

NPN TRANSISTOR

SOT-523 150mW

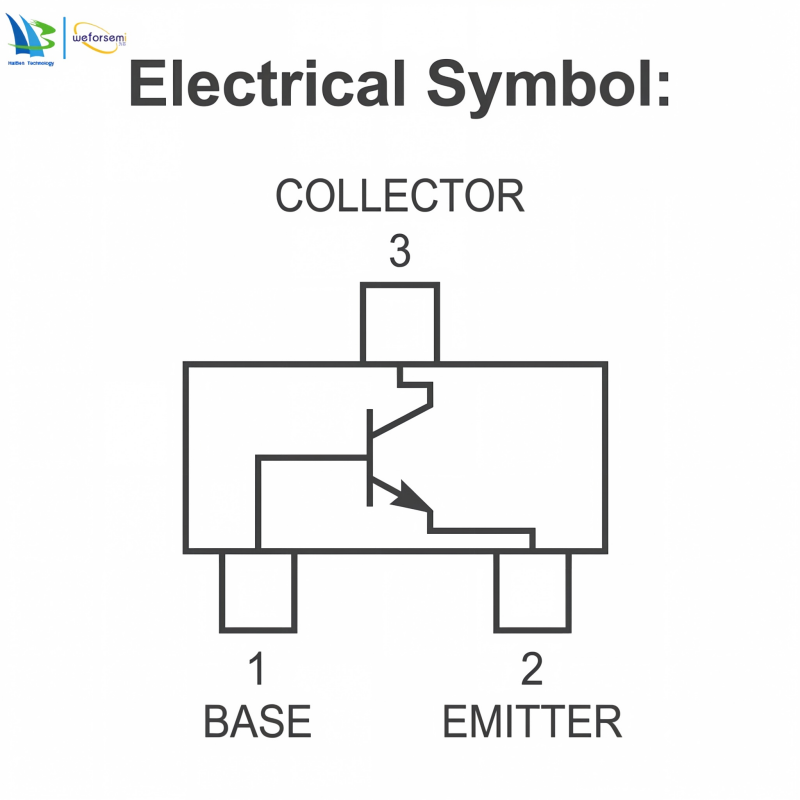

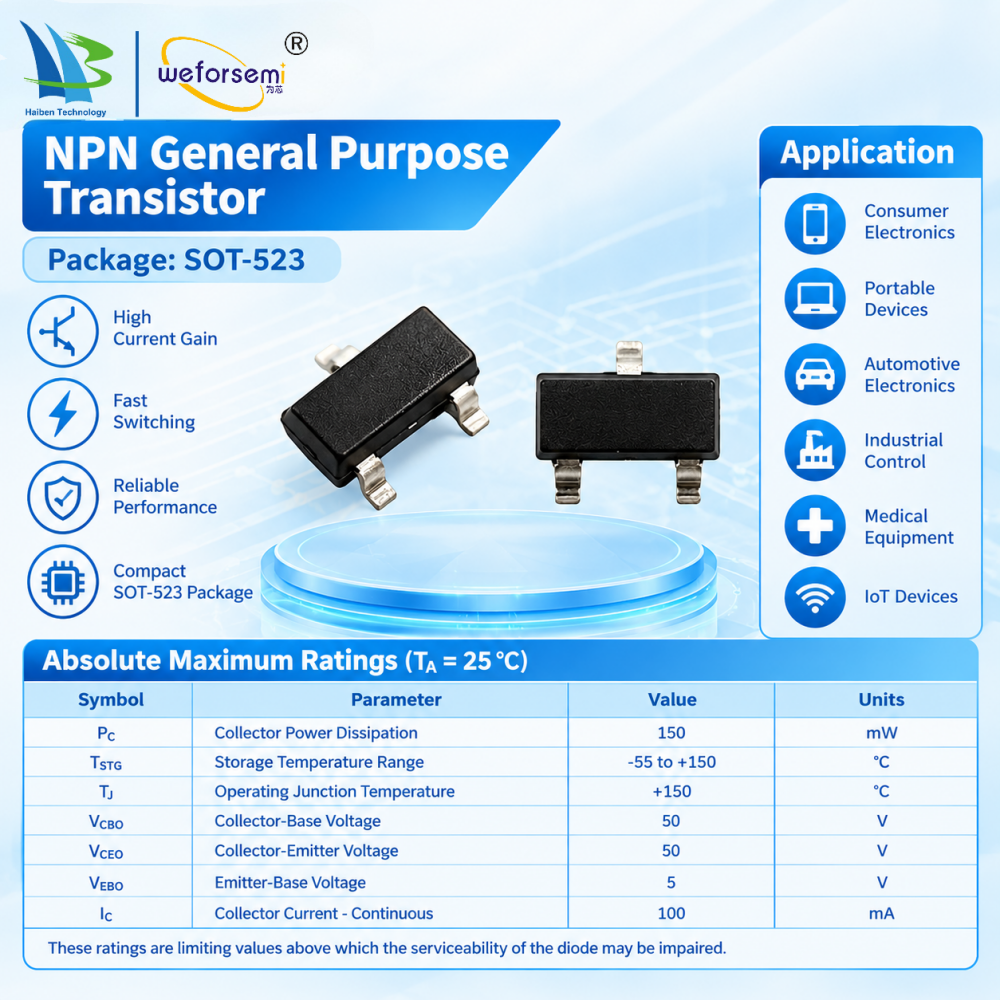

Absolute Maximum Ratings TA = 25°C unless otherwise noted

Electrical Characteristics TA = 25°C unless otherwise noted

Symbol	Parameter	Test Condition	Limits			Unit
Symbol	Parameter	Test Condition	Min	TYP	Max	Unit
V(BR)CBO	Collector-Base Breakdown Voltage	IC=50uA, IE=0A	50			Volts
V(BR)CEO	Collector-Emitter Breakdown Voltage	IC=1mA, IB=0A	50			Volts
V(BR)EBO	Emitter-Base Breakdown Voltage	IE=50uA, IC=0A	5			Volts
ICBO	Collector Cut-off Current	VCB=50V, IE=0A			0.1	µA
IEBO	Emitter Cut-off Current	VEB=5V, IC=0A			0.1	µA
hFE	DC Current Gain	VCE=6V, IC=1mA	120		560	---
VCE(sat)	Collector-Emitter Saturation Voltage	IC=50mA, IB=5mA			0.4	Volts
fT	Transition Frequency	VCE =5V, IC=10mA f=30MHz		280		MHz
COB	Collector Output Capacitance	VCB =12V, IE =0A, f=1MHz		2.0		pF
