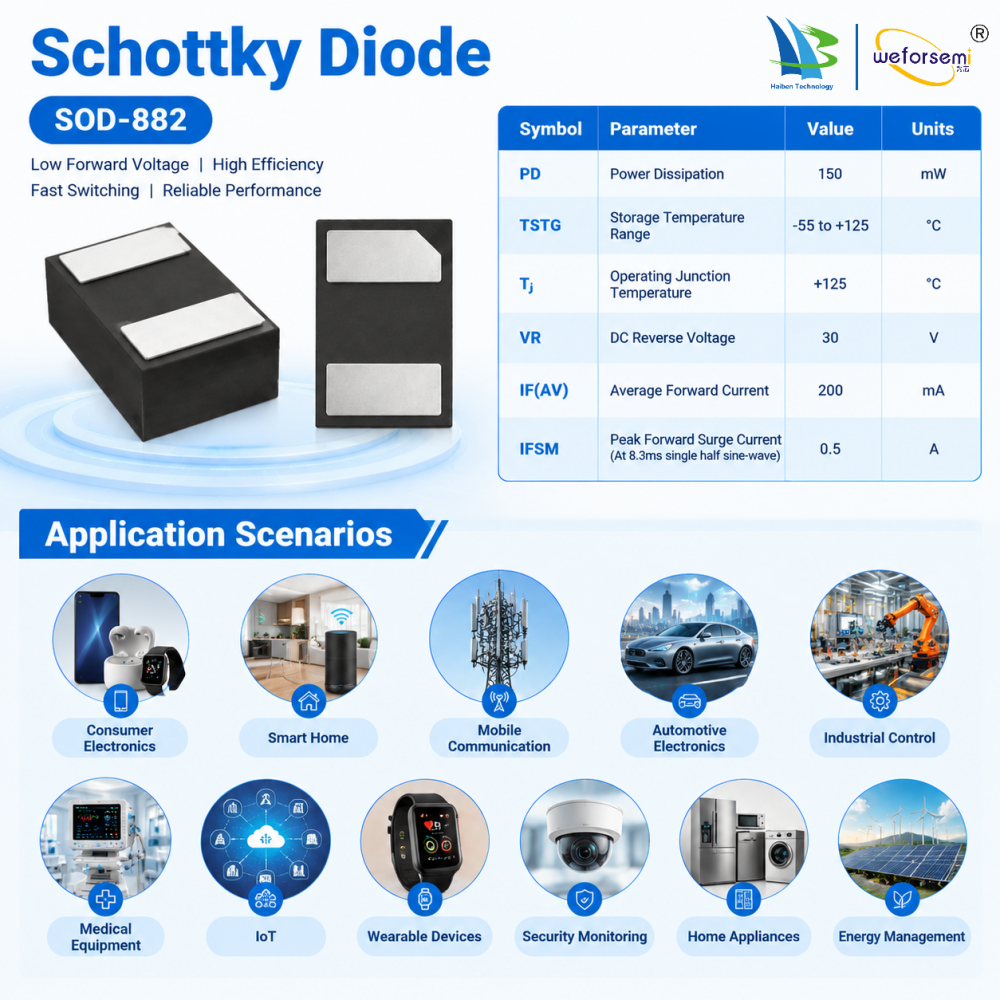

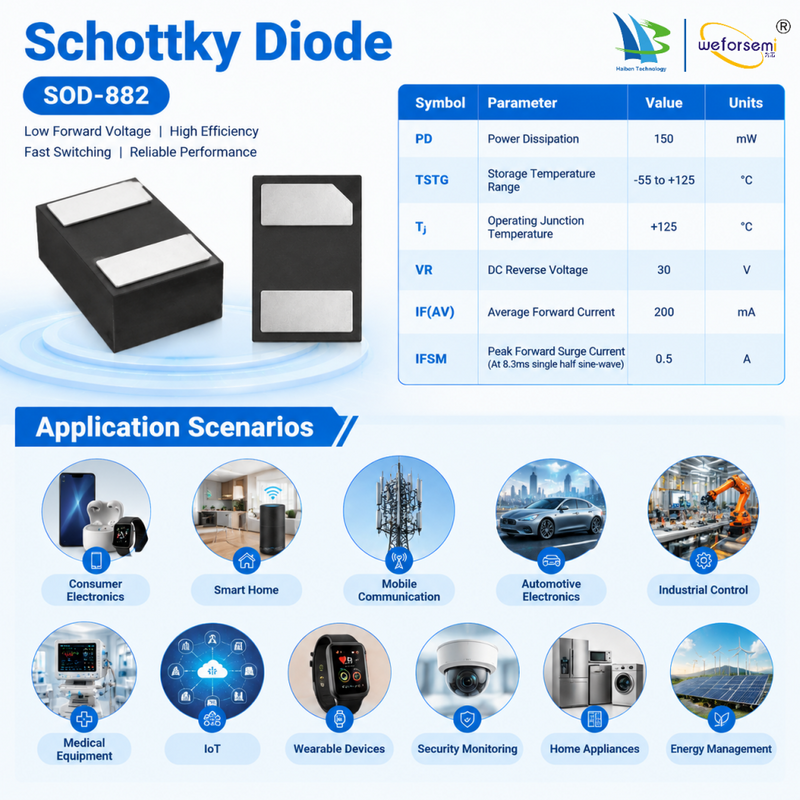

SOD-882 Schottky Diode Vc520s8-30f Surface Mount Small Signal Switching Rectifier Diodes Electronic Manufacturing Solutions
Specification Features:
Low Forward Voltage Drop
Small Surface Mounting Type (DFN1006)
RoHS Compliant
Green EMC
Matte Tin(Sn) Lead Finish
Band Indicates Cathode
Weight: approx. 0.001g
Absolute Maximum Ratings TA = 25°C unless otherwise noted
| Symbol | Parameter | Value | Units |
| PD | Power Dissipation | 150 | mW |
| TSTG | Storage Temperature Range | -55 to +125 | °C |
| TJ | Operating Junction Temperature | +125 | °C |
| VR | DC Reverse Voltage | 30 | V |
| IF(AV) | Average Forward Current | 200 | mA |
| IFSM | Peak Forward Surge Current
(At 8.3ms single half sine-wave) | 0.5 | A |
