OEM factory OEM Manufacturer 200MW SOD-323 Schottky Barrier Diode Vc103awsb SKD Electronic Components

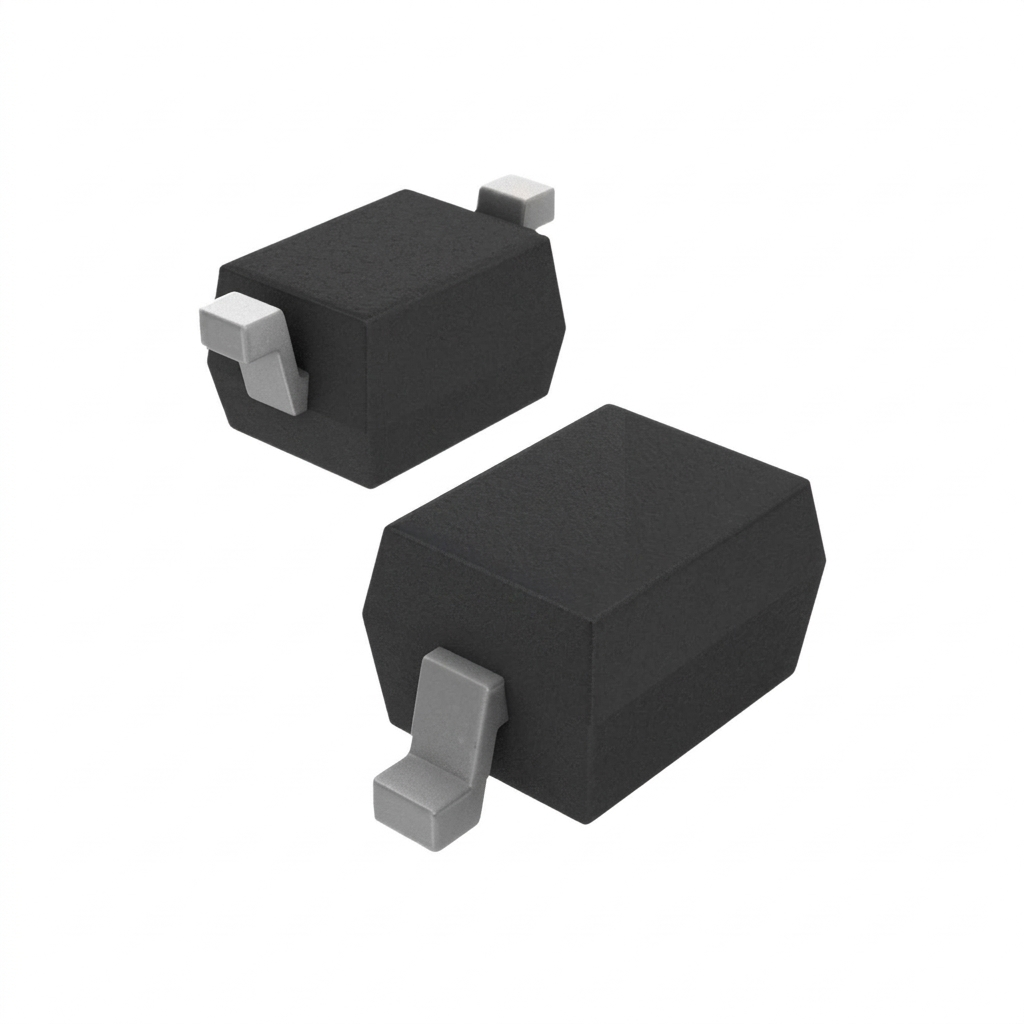

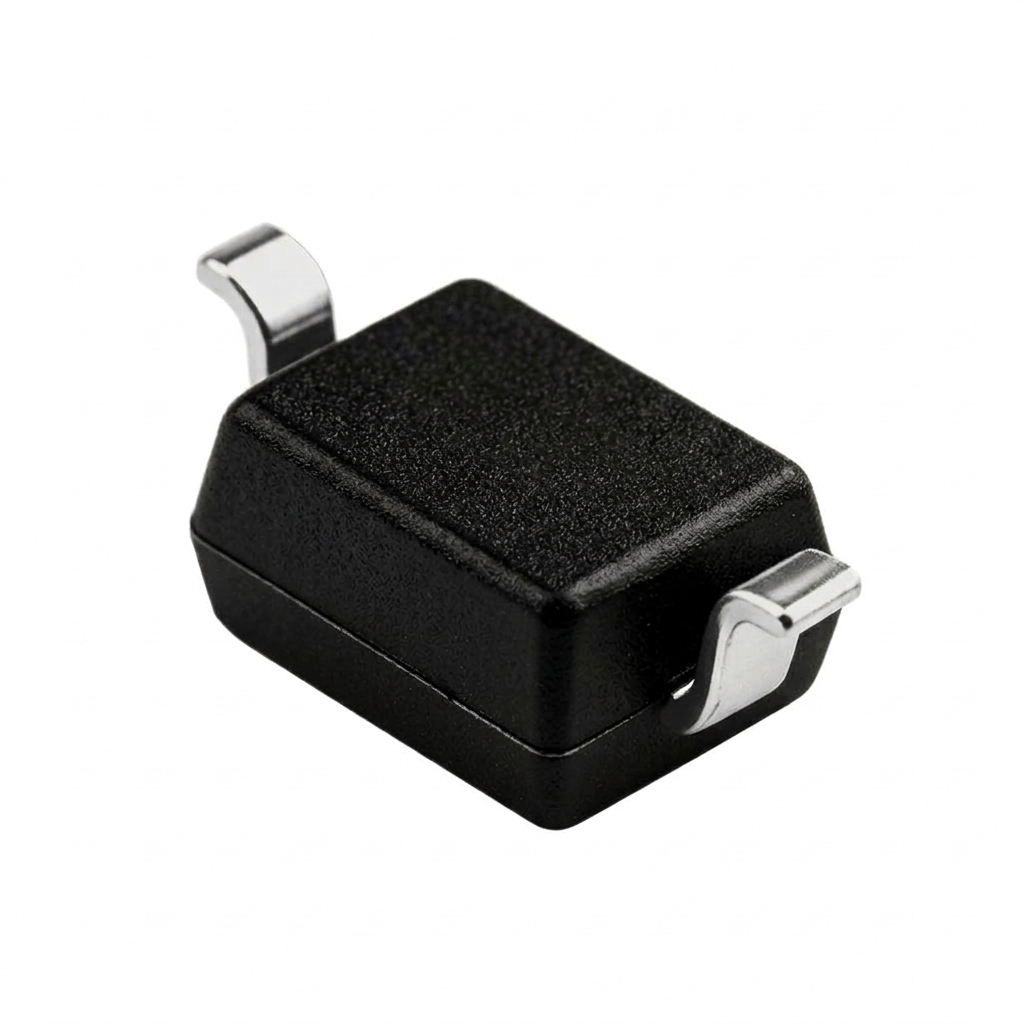

1.Ultra-compact SOD-323 SMD package, saving PCB layout space

2.200mW power dissipation, low forward voltage drop & low power loss

3.Fast switching speed, ideal for high-frequency rectification & freewheeling

4.Reliable reverse voltage performance for reverse-polarity & clamp protection

5.High-temperature plastic package, compatible with SMT automatic assembly

6.Factory direct supply, support OEM & SKD, strict quality control

Quantity:
Material:	Silicon
Structure:	200MW Schottky Diode
Package Structure:	Plastic Sealed Transistor
Peak Repetitive Reverse Voltage:	40V
Average Forward Rectified Current:	350mA
Ifsm:	2A
Power Dissipation:	200MW
Availability:





Inquire Add to Basket

OEM factory OEM Manufacturer 200MW SOD-323 Schottky Barrier Diode Vc103awsb SKD Electronic Components

Features
• Low Forward Voltage

• Marking: VC103AWSB: S4

Absolute Maximum Ratings (Ta = 25 ºC)

Parameter	Symbol	Value	Unit
Peak Repetitive Reverse Voltage	VRRM	40	V
Reverse Voltage	VR	40	V
Average Forward Rectified Current	IF(AV)	350	mA
Non-Repetitive Peak Forward Surge Current at t = 1 s	IFSM	2	A
Power Dissipation	Ptot	200	mW
Operating and Storage Temperature Range	Tj, Tstg	- 65 to + 125	ºC

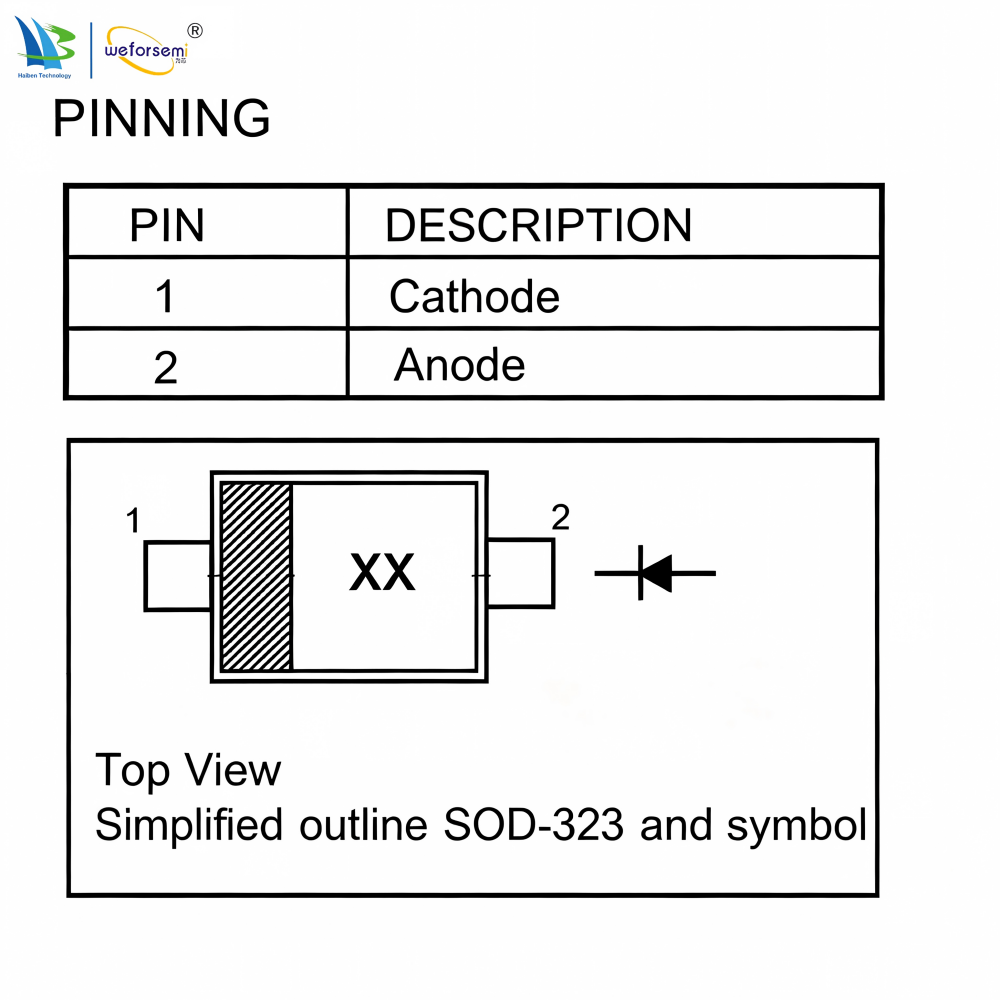

VC103AWSB
