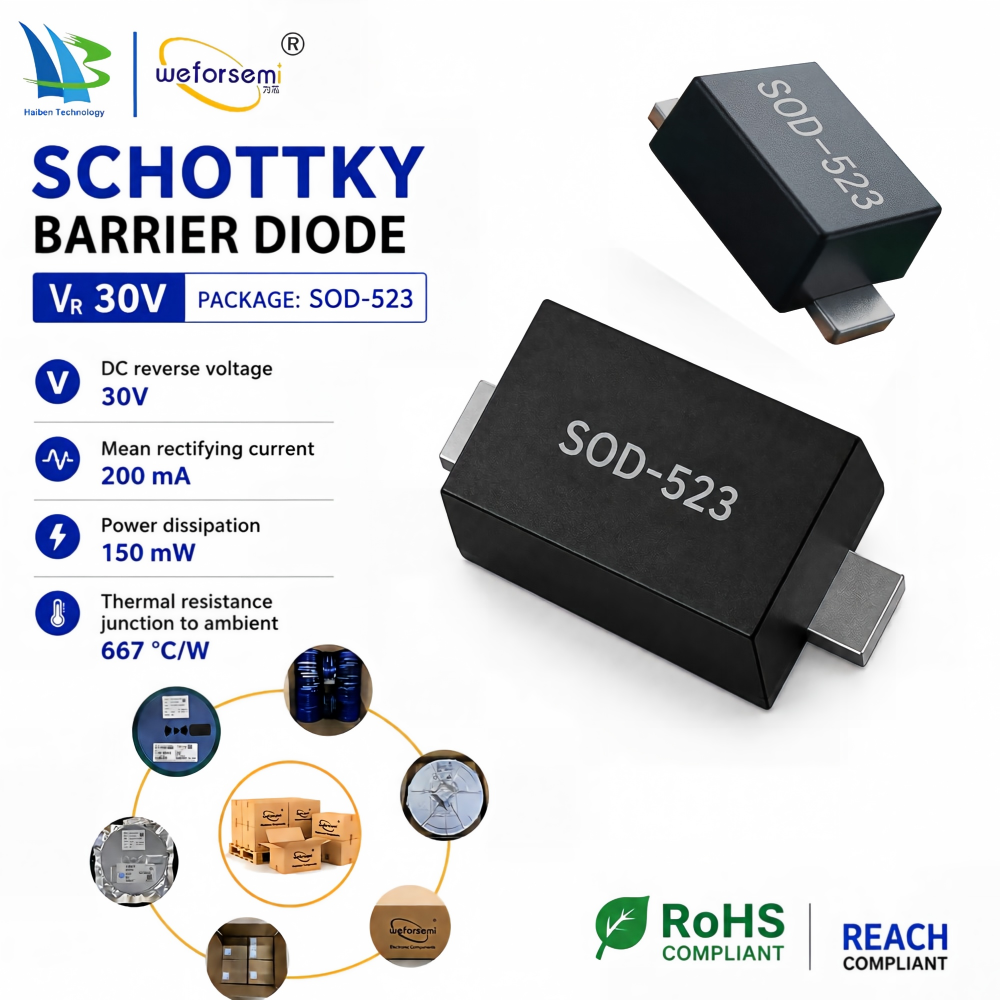

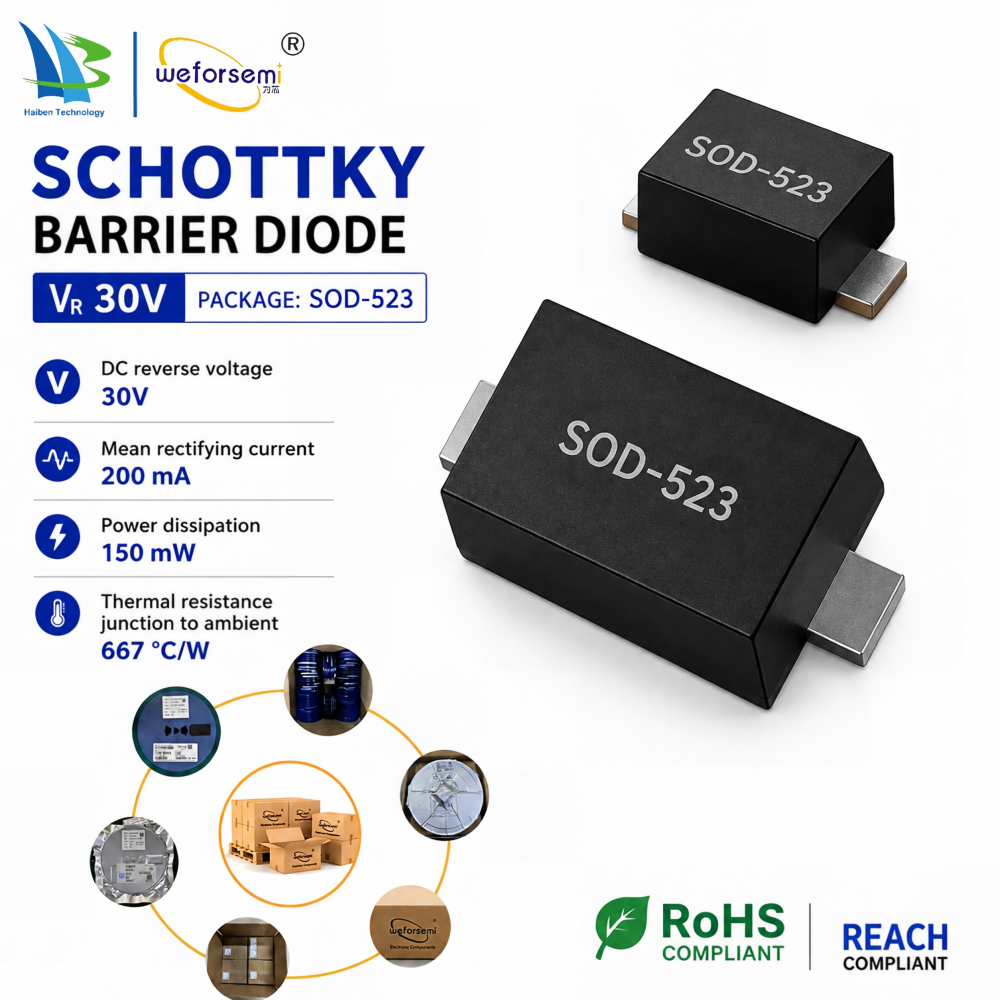

China Factory SOD-523 VCRB520S-30B Small Signal SMD Schottky Diode 30V 200mA Original manufacturer

China Factory SOD-523 VCRB520S-30B Small Signal SMD Schottky Diode 30V 200mA Original manufacturer

1.Low forward voltage drop, low conduction power loss, energy-saving for low voltage circuits

2.Fast switching speed & ultra-short reverse recovery time, ideal for high frequency rectification

3.30V reverse voltage rating, suitable for 5V /12V low voltage electronic equipment

4.Ultra-compact SOD-523 SMD package, save PCB space for miniaturized product design

5.Factory direct supply, support OEM custom marking & one-stop BOM service

6.Surface mount device, fully compatible with automatic SMT mass production

Model:
VCRB520S-30B
Brand:
Weforsemi
Code:
SMD Schottky Diode 30V 200mA

Quantity:
Package Structure:	Plastic Sealed Transistor
Application:	Electronic Products
Structure:	Planar
Material:	Silicon
Specification:	Schottky Barrier Diode
DC Reverse Voltage:	30V
Mean Rectifying Current:	200mA
Availability:





Inquire Add to Basket

Product Description

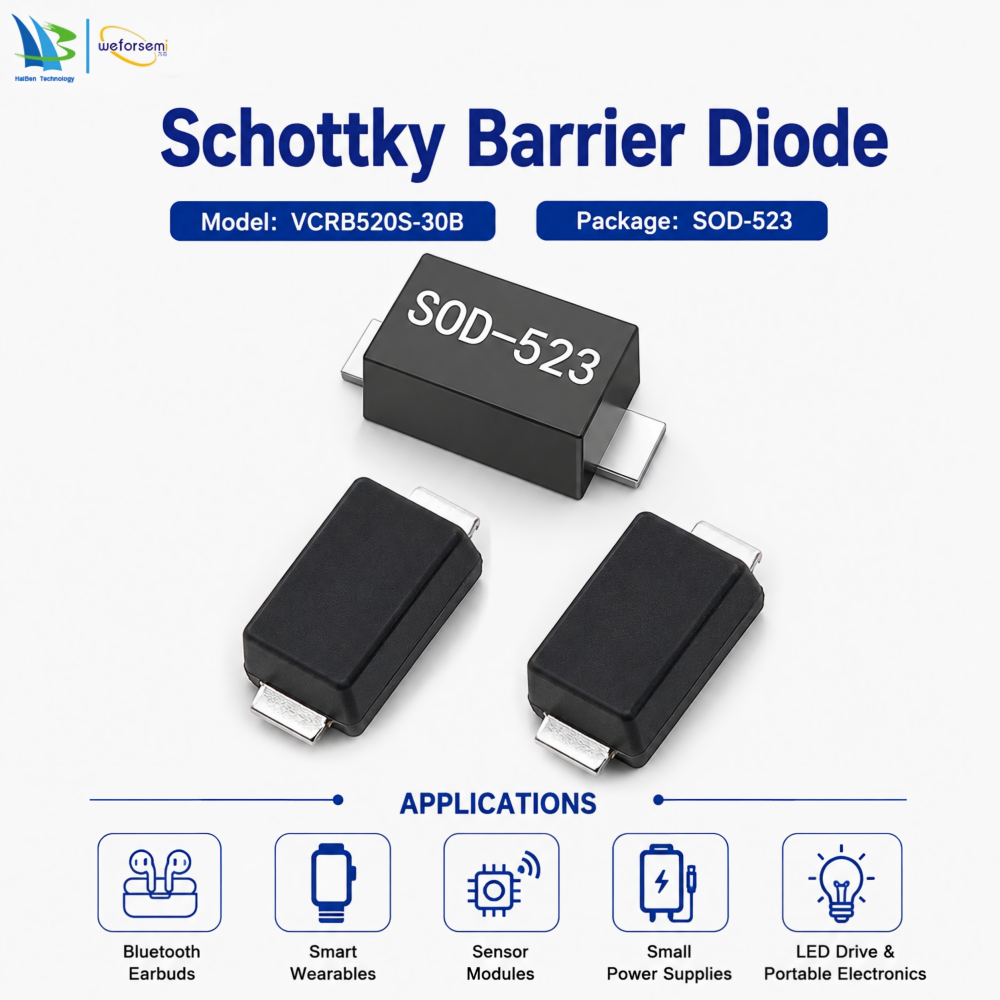

China Factory SOD-523 VCRB520S-30B Small Signal SMD Schottky Diode 30V 200mA Original manufacturer

Product Description

FEATURES
Small surface mounting type
Low IR
High reliability

MARKING: B

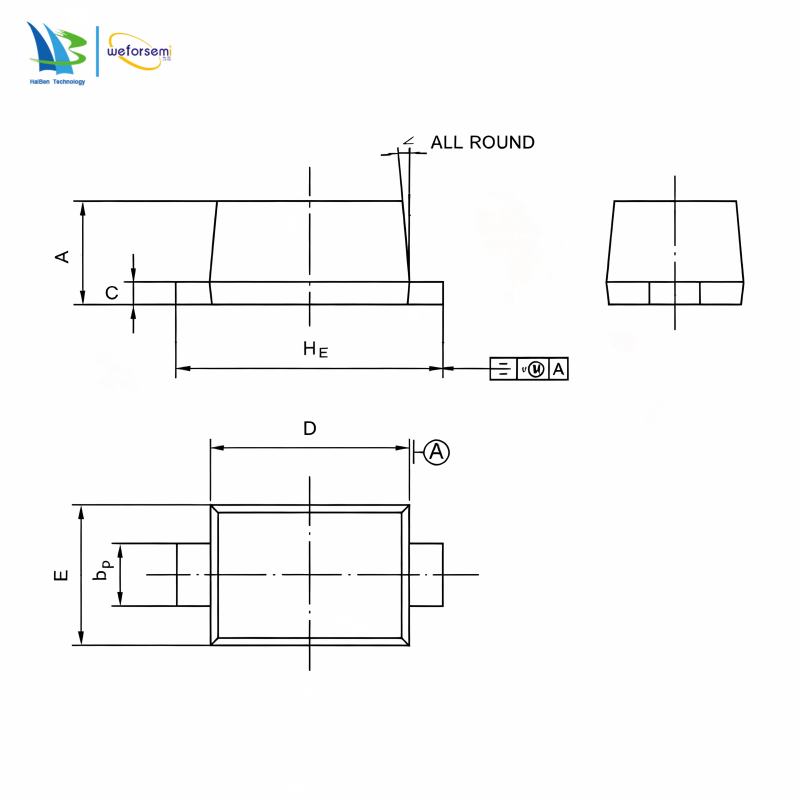

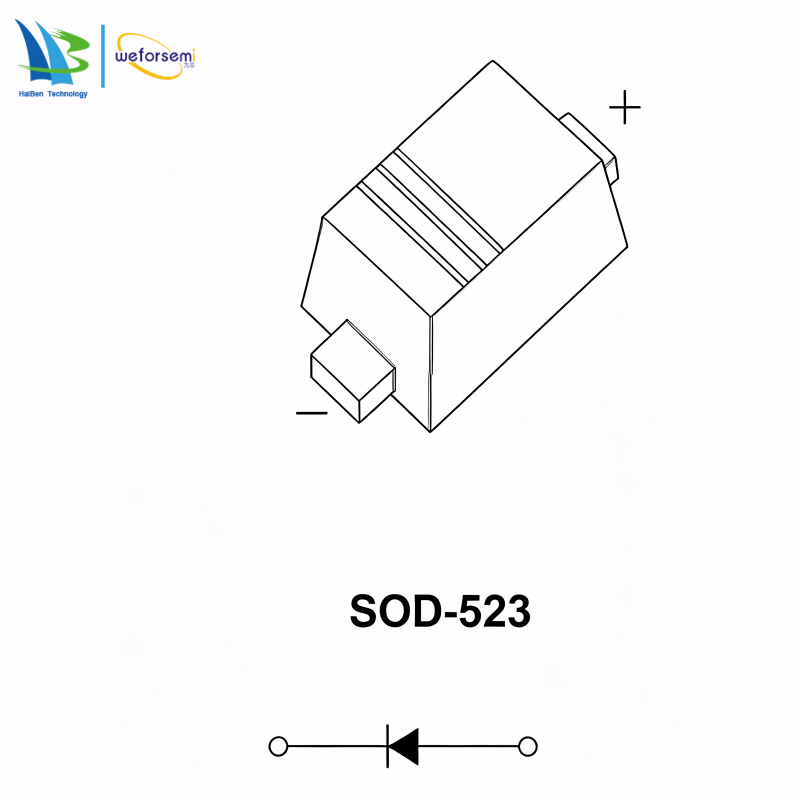

PACKAGE OUTLINE
Plastic surface mounted package; 2 leads

Maximum Ratings and Electrical Characteristics, Single Diode @Ta=25ºC

Parameter	Symbol	Limit	Unit
DC reverse voltage	VR	30	V
Mean rectifying current	IO	200	mA
Non-repetitive Peak Forward Surge	IFSM	1	A
Power dissipation	PD	150	mW
Thermal resistance junction to ambient	RθJA	667	ºC/W
Operating Junction Temperature Range	Tj	-40 ~ +125	ºC
Storage Temperature Range	Tstg	-55 ~ +150	ºC

Electrical Ratings @Ta=25ºC

Parameter	Symbol	Typ	Max	Unit	Conditions
Forward voltage	VF		0.6	V	IF=200mA
Reverse current	IR		1	μA	VR=10V

Important Notice and Disclaimer
Weforsemi reserves the right to make changes to this document and its products and specifications at any time without notice. Customers should obtain and confirm the latest product information and specifications before final design, purchase or use.
Weforsemi makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does Weforsemi assume any liability for application assistance or
customer product design. Weforsemi does not warrant or accept any liability for products which are purchased or used for any unintended or unauthorized application.
No license is granted by implication or otherwise under any intellectual property rights of Weforsemi .
Weforsemi products are not authorized for use as critical components in life support devices or systems without express written approval of Weforsemi .

VCRB520S_30B 2 VCRB520S_30B 1 VCRB520S_30B 3
