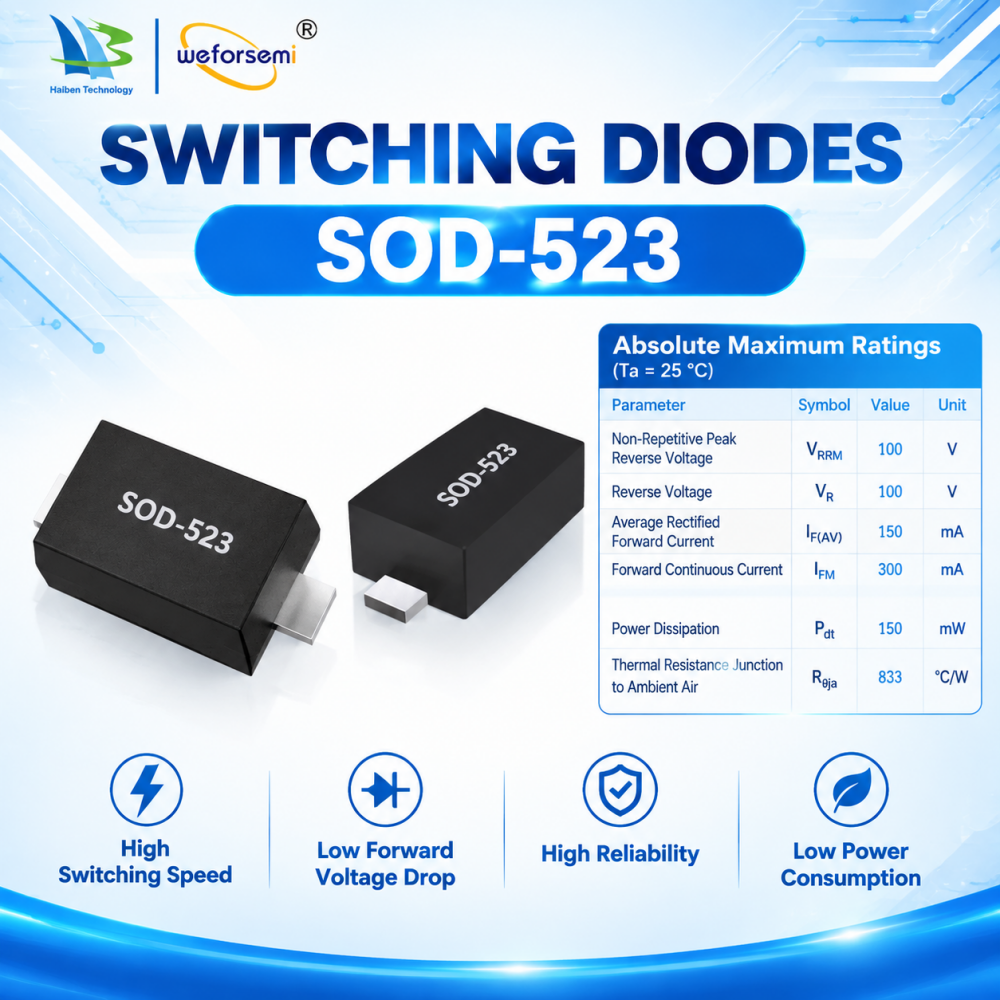

High-Tech Fast Switching Diode Semiconductor VC1N4148WTB SOD-523 100V Wholesale From China Factory Original manufacturer
Features
• Fast switching speed
• Ultra-small surface mount package
• For general purpose switching applications
• High conductance
Marking Code: T4
PACKAGE OUTLINE
Plastic surface mounted package: 2 leads
Absolute Maximum Ratings (Ta = 25°C)
| Parameter | Symbol | Value | Unit |
| Non-Repetitive Peak Reverse Voltage | VRM | 100 | V |
| Reverse Voltage | VR | 100 | V |
| Average Rectified Forward Current | IF(AV) | 150 | mA |
| Forward Continuous Current | IFM | 300 | mA |
| Power Dissipation | Ptot | 150 | mW |
| Thermal Resistance Junction to Ambient Air | Reja | 833 | ºC/W |
| Operating Temperature Range | Tj | - 65 to + 150 | ºC |
| Storage Temperature Range | Tstg | - 65 to + 150 | ºC |
Characteristics at Ta = 25 °C
| Parameter | Symbol | Min. | Max. | Unit |
Reverse Breakdown Voltage
at IR = 1 µA | V(BR)R | 100 | - | V |
Forward Voltage
at IF = 1 mA
at IF = 10 mA
at IF = 50 mA
at IF = 150 mA |
VF |
-
-
-
- | 0.715
0.855
1
1.25 |
V |
Peak Reverse Current
at VR = 75 V
at VR = 20 V
at VR = 75 V, TJ = 150 OC
at VR = 25 V, TJ = 150 OC |
IR |
-
-
-
- | 1
25
50
30 | µA
nA
µA
µA |
Total Capacitance
at VR = 0 V, f = 1 MHz | CT | - | 2 | pF |
Reverse Recovery Time
at Irr = 0.1 X IR, IF = IR = 10 mA, RL = 100 Ω | trr | - | 4 | ns |
