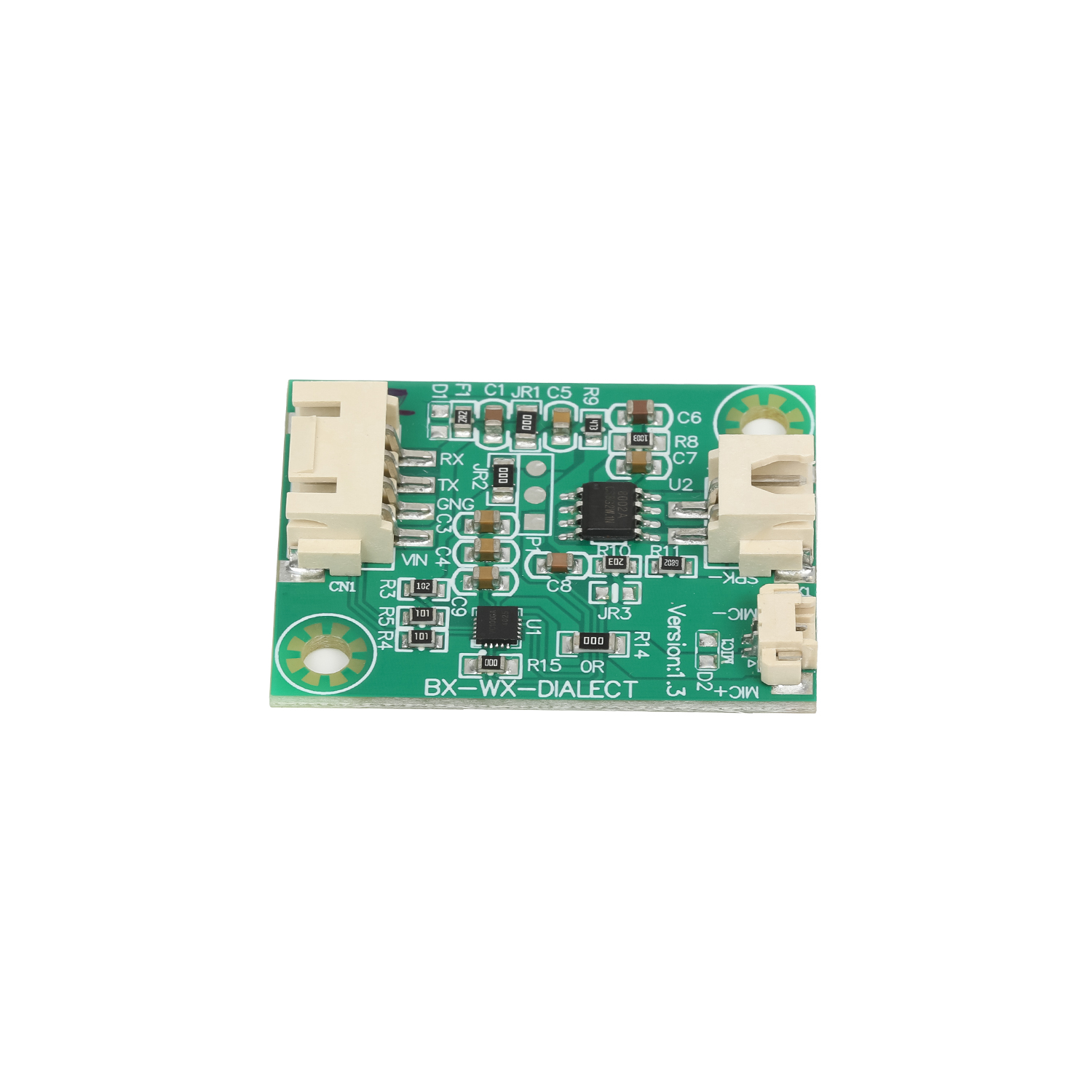

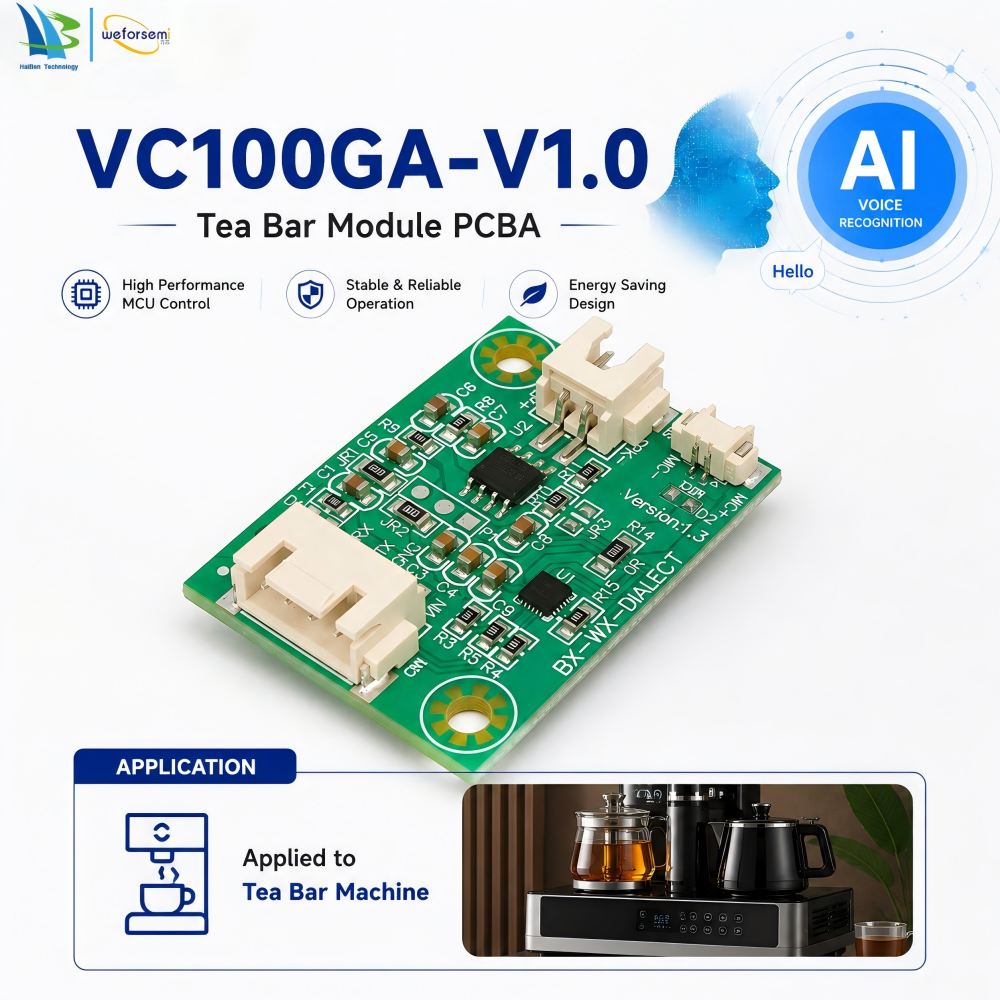

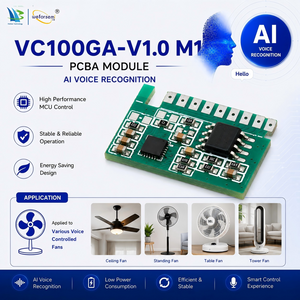

Factory Manufacturer Voice Control ASR Tea Bar Machine PCBA, Factory Direct SKD Circuit Board

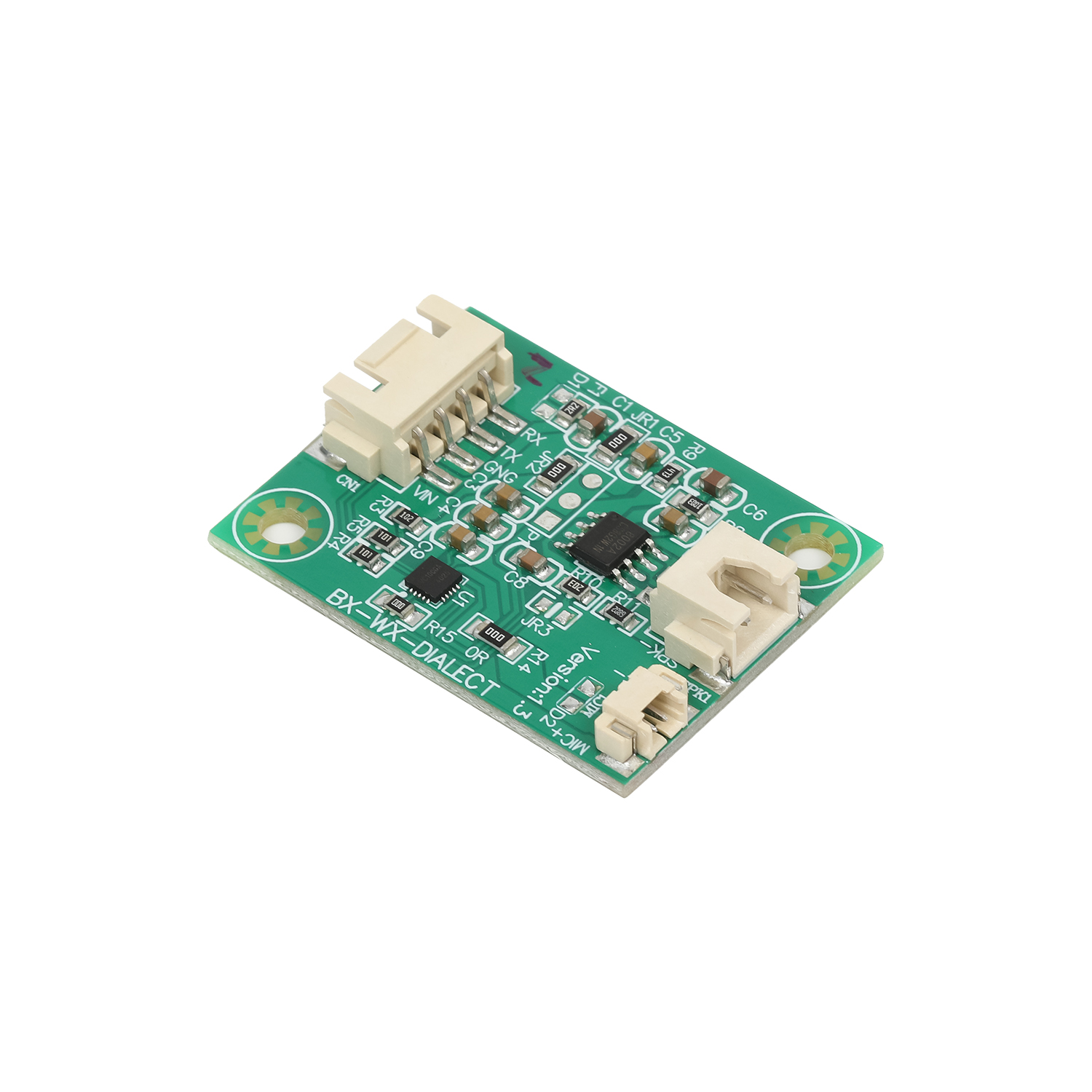

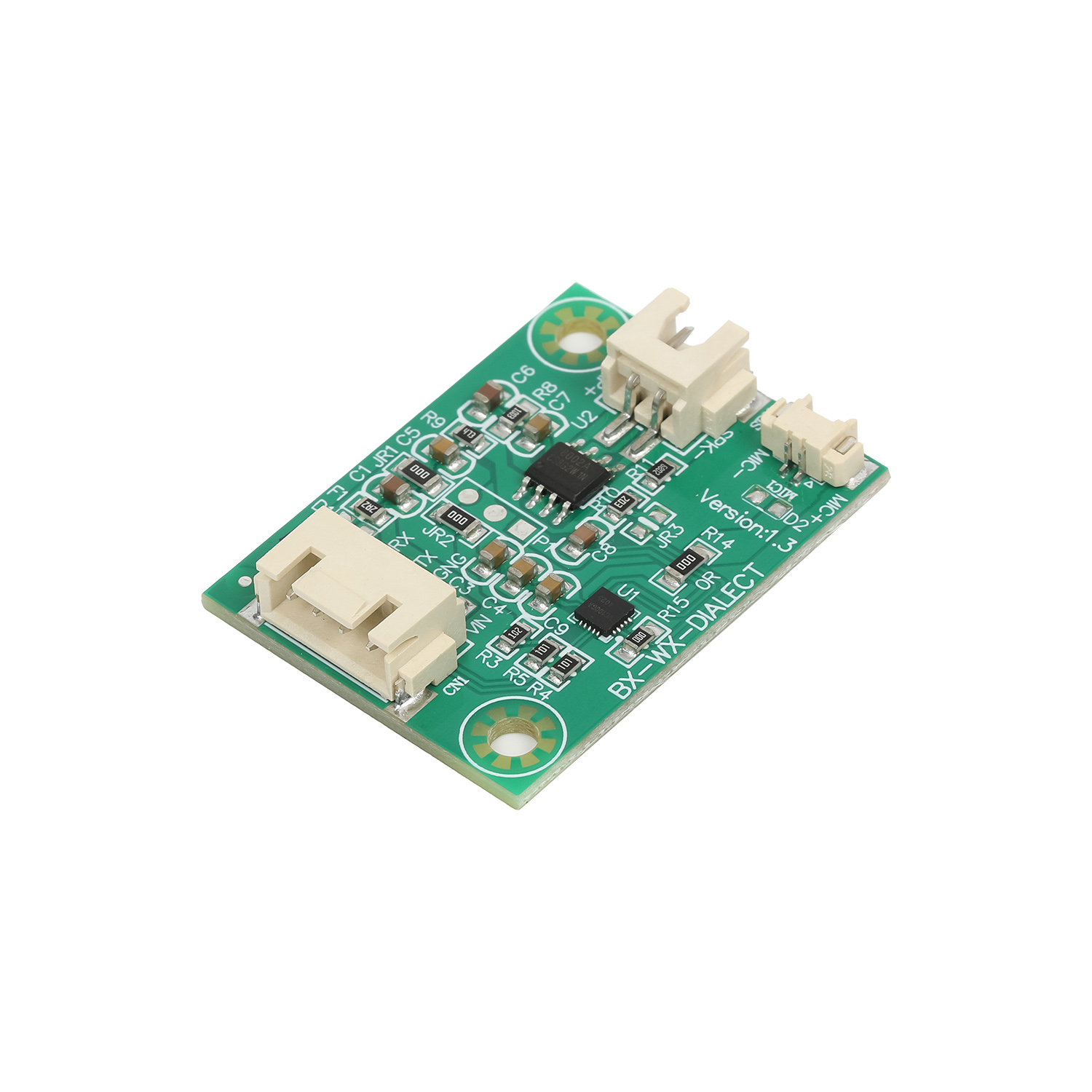

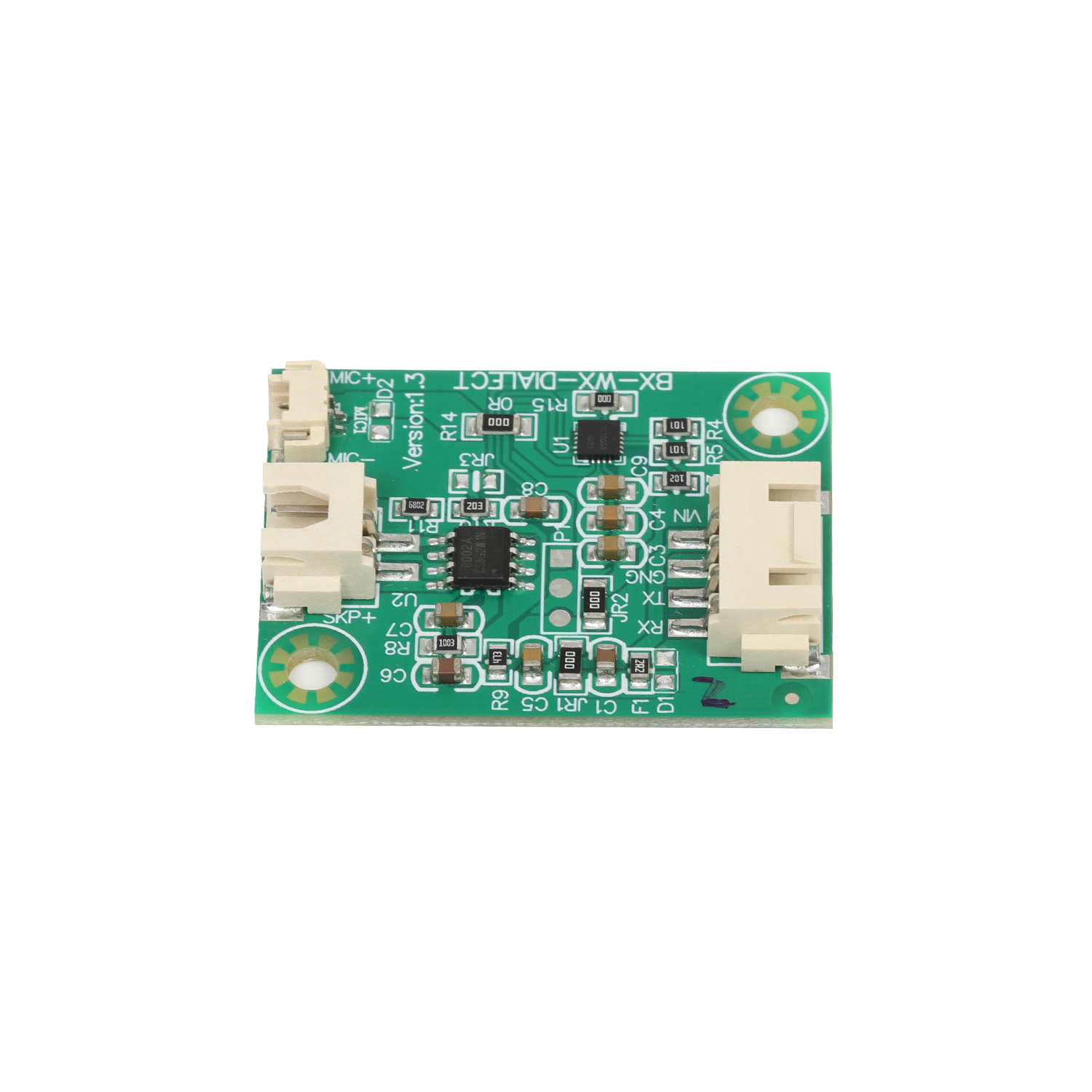

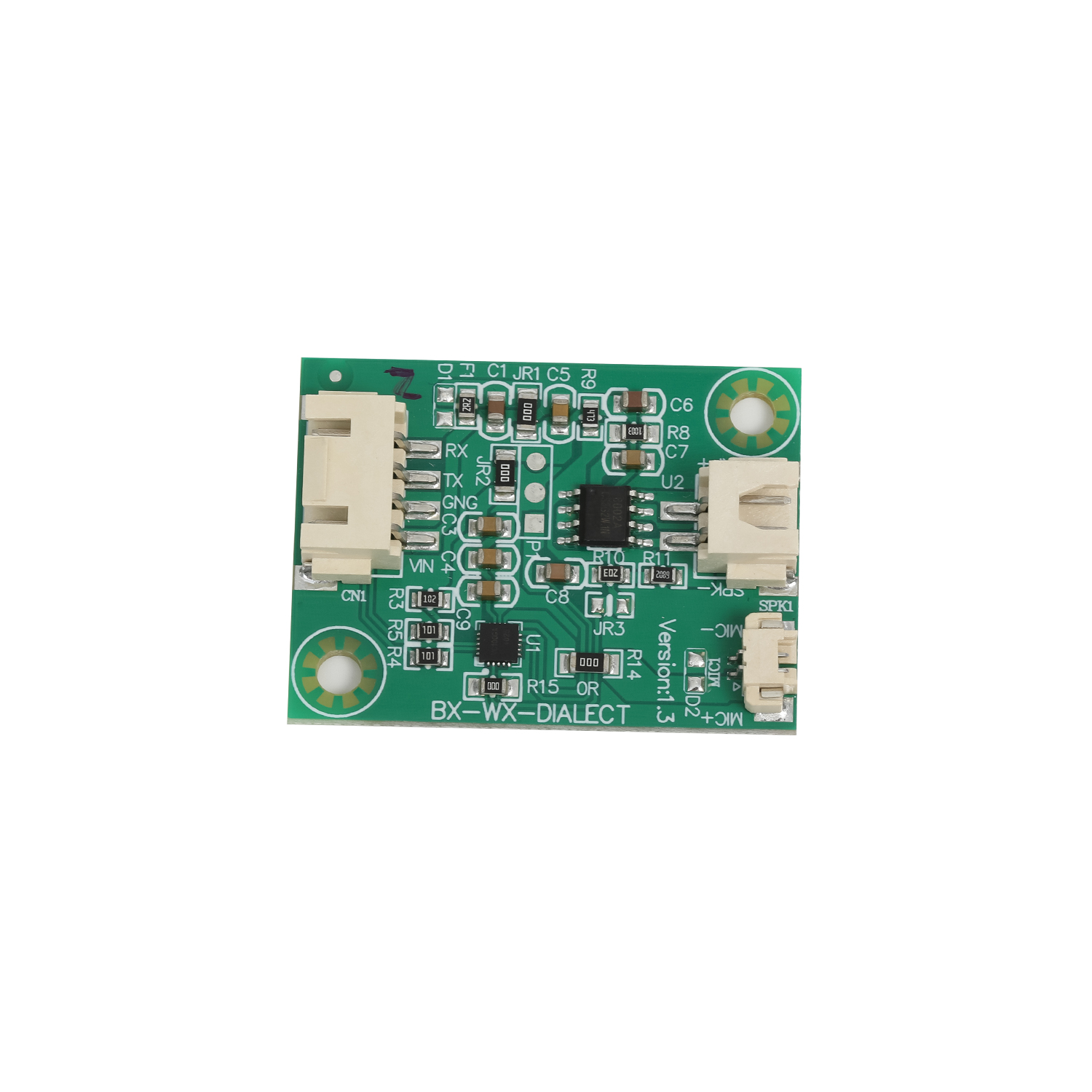

1.2.Pin Definitions
surface 1 Module pin definitions
serial number	Pin Definitions	IO type	Function
1	SPK+	O	Speaker connector positive terminal
2	SPK-	O	speaker connector negative terminal
3	MIC-	I	Microphone input
4	MIC+	I	Microphone input
5	RX	I	Module serial portRX, 5V Level
6	TX	O	Module serial portTX, 5V Level
7	GND	P	power ground
8	VIN	P	Power input
2 Module programming port pin definitions
P1-2	PA2	I	Programming I/O ports
P1-2	GND	P	Programming port power ground
P1-1	VCC	P	Programming port power input
Note: P indicates power pin, I/O indicates input/output pin, I is the input pin
1.3 Electrical parameters
Electrical parameters	describe	Minimum value	Maximum value	unit
Ts	Storage temperature	-20	85	ºC
VCC	Power input	2	5.5	V
1.4Working conditions
parameter	describe	Minimum value	Typical value	Maximum value
Ta	Operating temperature	-20	20	85
VCC	Operating voltage	3	5	5.5
Ia	Peak operating current (8 Ω1W (Depending on the power amplifier and speaker power)		100	350
Ib	Standby operating current		13	15

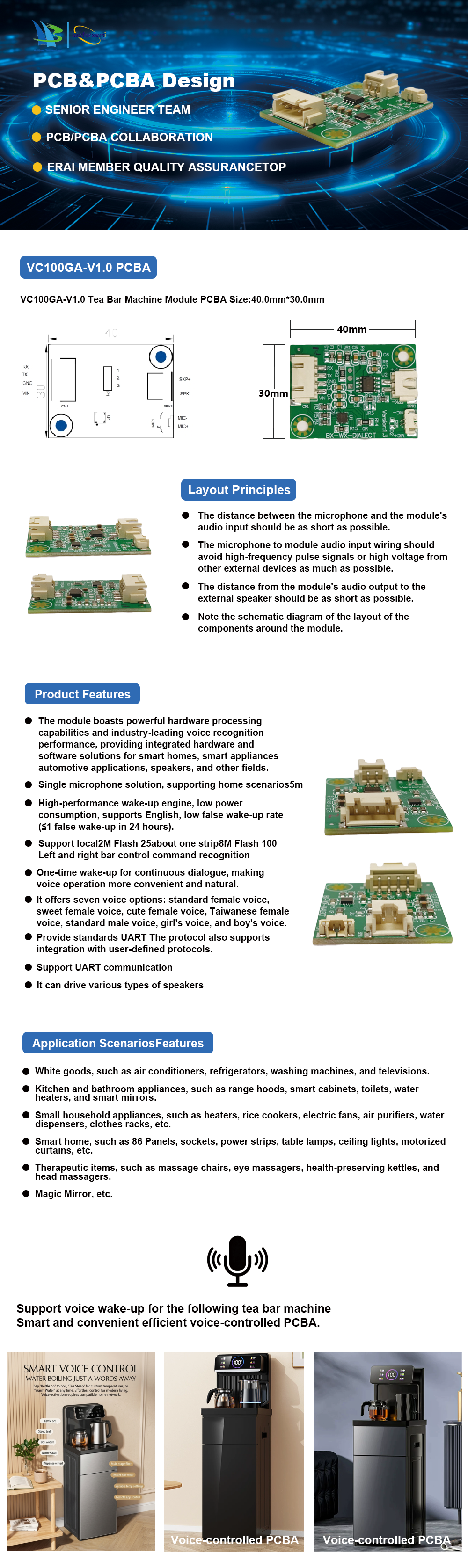

2.Layout principles
The distance between the microphone and the module's audio input should be as short as possible.
The microphone to module audio input wiring should avoid high-frequency pulse signals or high voltage from other external devices as much as possible.
The distance from the module's audio output to the external speaker should be as short as possible.
Note the schematic diagram of the layout of the components around the module.
